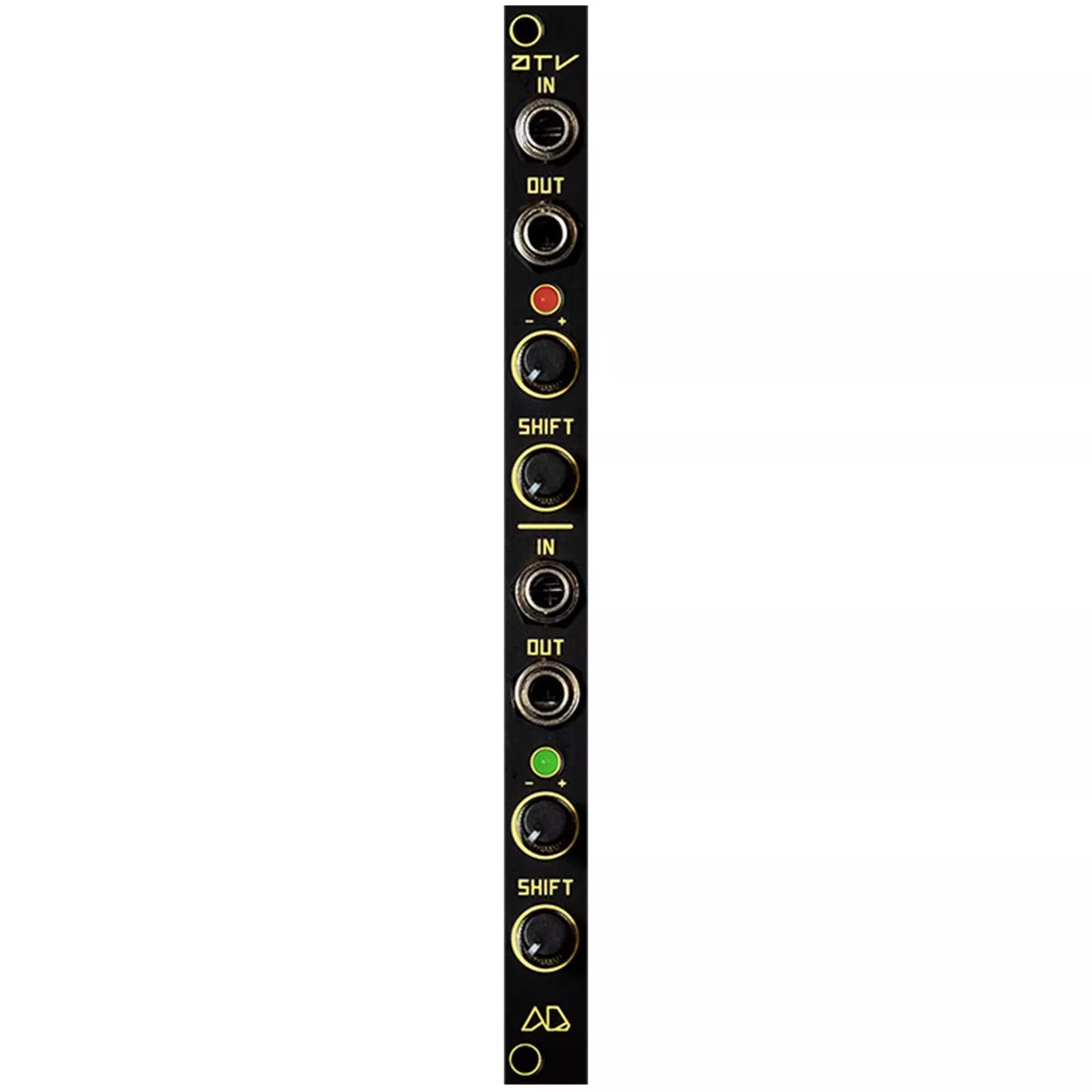

Dual Attenuverter and Offset.
2 channels attenuverters and offsets (clockwise is positive and counter-clockwise is negative)
Attenuvert up to ~2x gain in positive or negative direction
Shift potentiometer can scale voltages up to 10v in in positive or negative direction
Input 1 is normalled to input 2
Outputs are normalled to the shift potentiometers to be used as a constant voltage source without a signal connected to the input
Bi-polar red/green LED monitors the signals at the outputs (red=negative voltage, green=positive voltage)
A few patch ideas:
Useful for sidechain effect (increase a signal while another decreases)
Control multiple modules with 1 knob: connect ATV output to a mult such as IPSE and send its outputs to multiple modules cv inputs.
Scale voltages before going to a quantizer for note sequence transposition
Manipulate envelopes and lfo to get a precise range for a desired effect
Convert unipolar lfo and envelope into bipolar, or the other way around
Shift (offset) lfo or envelope swings from 0v-5v to +-5v, or any other range
Amplify gates and triggers not loud enough to strike other modules
Works well with cv, audio, gates and triggers or any signal from your eurorack system
