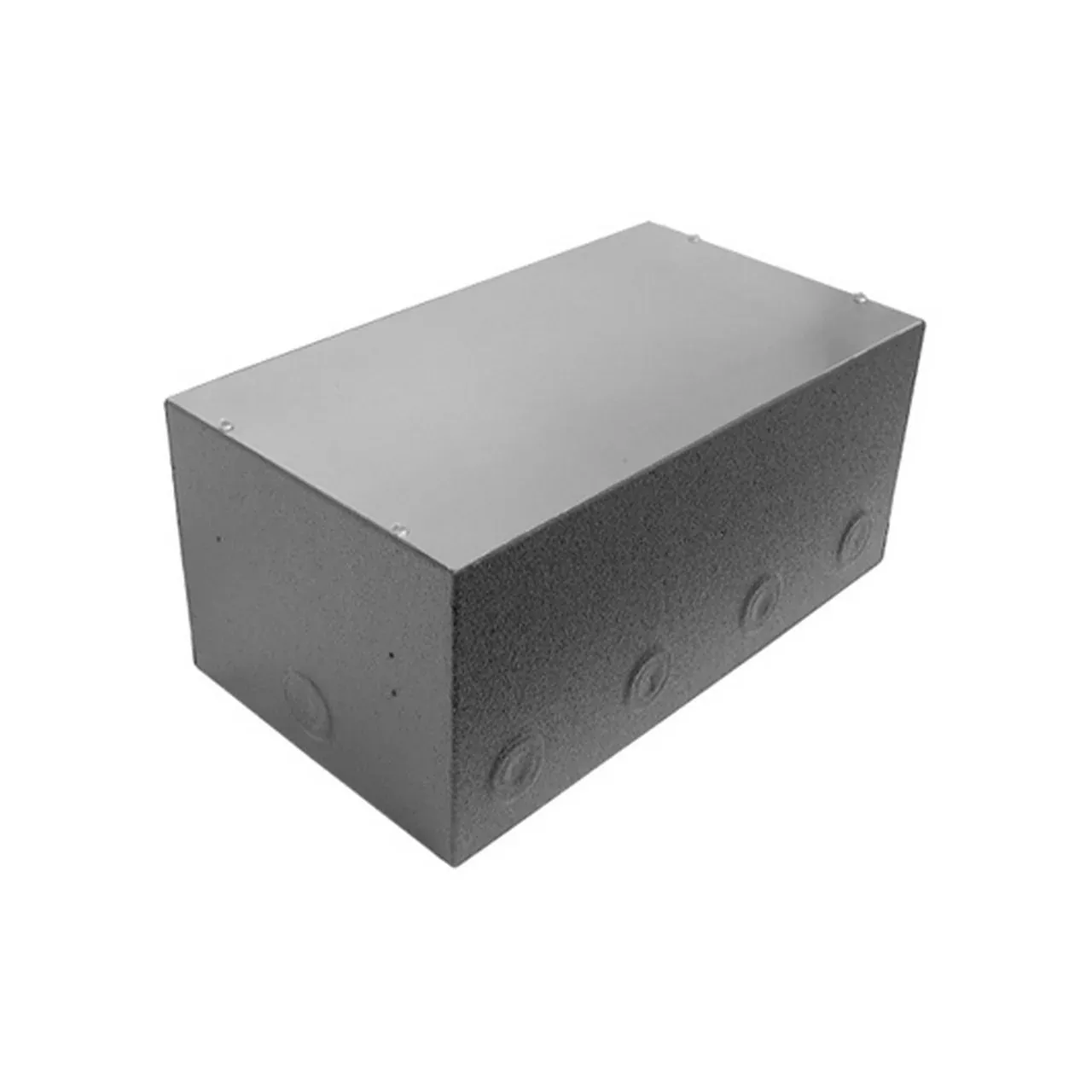

Ace Backstage Co. 1048BBXW Double Wide Stage Pocket Extra Deep Back Box with Polyurethane Encapsulation
Polyurethaneencapsulated back boxes are available to provide extra protection fromincursion of moisture and water by sealing seams, knock-outs, and holes. Usingour extra deep, double zinc plated back boxes (8BBXW) a 1/16″ thick jacketof polyurethane is applied to the exterior sides and bottom of the back box,permanently bonding with surfaces to form a moisture resistant seal. Thepolyurethane back box provides protection against harsh climate, chemicals,impact and abrasion. All polyurethane back boxes will have a model numbersuffix of “W”.
ACEpolyurethane encapsulated Extra Deep Back Boxes (1028BBXW and 1048BBXW) areslightly deeper (8”) as compared with Standard BBX Series Back Boxes (6”) andmay be used exclusively with ACE Full and Double Wide Stage Pockets. The1028BBXW and 1048BBXW polyurethane encapsulated Extra Deep Back Boxes arewelded 14 gauge steel with a protective cover that is discarded when the pocketbody is finally installed. The box and cover have a clear zinc corrosionresistant finish. A 1/2” mounting flange is predrilled to mate with the pocketbody flange. The pocket body assembly is 4.5” deep and the extra deep back boxis 8” deep providing a 3.5” work clearance in the bottom of the back box (idealfor feed thru or distribution junction).
Theclearance volume (volume between bottom of pocket body and bottom of the extradeep back box) is 338 cubic inches in the 1028BBXW and 613 cubic inches in the1048BBXW. ACE polyurethane encapsulated Extra Deep Back Boxes come withstandard Electrical Conduit Combination 1/2”, 3/4”, 1”, and 1-1/4” Knock Outs,4 places typical on opposing sides and Electrical Conduit Combination 1/2”,3/4”, 1”, and 1-1/4” Knock Outs, 2 places typical on one side.
