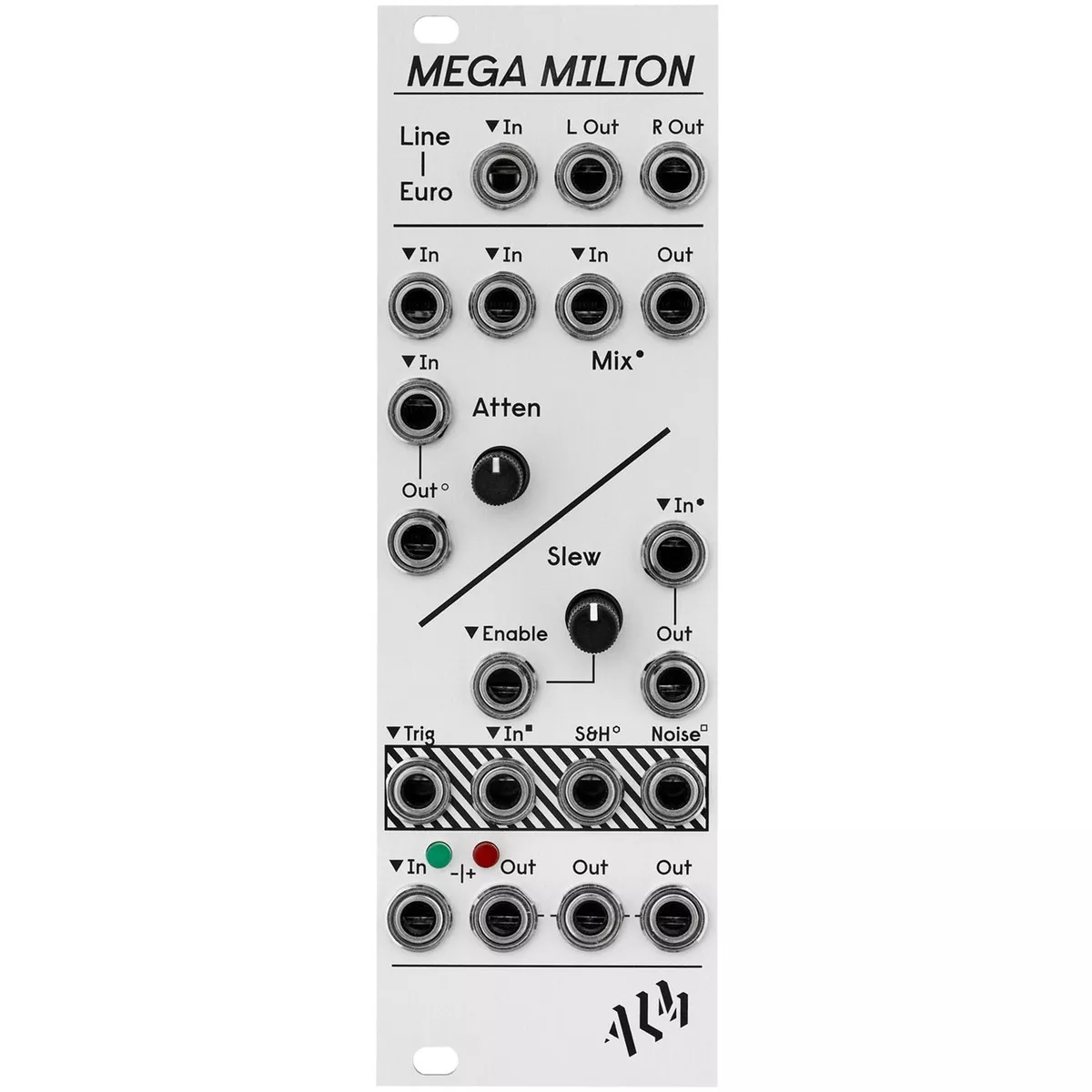

ALM037 MEGA MILTON.
The ‘MEGA MILTON’ is a smorgasbord of handy all analog utilities injust 8HP that will greatly extend the functionality of your Eurorack system.
It includes a stereo line input converter for incorporating line level external sources into a Eurorack system, a fixed 4 input mixer with breakout attenuator for combining signals, a gated slew limiter for adding slides to sequences, a sample and hold with analog white noise with a myriad of uses such as generative melodies or producing
percussive textures and finally a buffered mult for droop free signal distribution with handy LEDs to monitor.
All sections are normalised to help with typical use cases such as generating random CV from the sample & hold section, a smooth random source from the slew output and breaking out a standalone attenuator from the fourth mixer input.
The ‘MEGA MILTON’ provides essential classic synthesizer buildingblocks for patching in any Eurorack system.
Features:
Stereo line in to Eurorack level converter & mono splitter.
Four input summing mixer with break out attenuator.
Slew limiter circuit with gate input for switching on and off.
High quality sample & hold circuit with low ‘droop rate’.
Analog White noise generator.
Buffered multiple with LED polarity indicators.
Normalisation between sections for simplified patching.
Skiff friendly with reverse power protection.
2 Year Warranty
Made in England.
Ideal for:
Incorporating stereo external sources easily into your Eurorack system.
Signal attenuation and basic mixing in a small space.
Building percussion sounds from an analog noise source.
Producing clocked random to add interest and variation to patterns
and sounds.
Adding gated 303 style slides to patterns.
Creating and Manipulating patterns with Sample and Hold.
Buffering and monitoring voltage across multiple VCOs or other
destinations with no drop.
Tech Specs:
Supply: +12V 70mA / -12V 70mA
Size: 8HP
Depth: 32mm
