Apogee Thunderbolt / ProTools HDX w/16X16 Line&2X6Line.
The ultimate music-production centerpiece for any modern commercial, project, or personal studio, theApogee Electronics Symphony Mk II Thundebolt Interface with 16×16 SE and 2×6 SE Modulesis designed to deliver high-performance A/D and D/A conversion at up to 192 kHz, for mixing and mastering engineers using a thunderbolt system. The included 16×16 SE and 2×6 SE I/O modules offer stunning dynamic range with low distortion and noise for mastering-grade sonic quality. The system is Dolby-Atmos ready.
This configuration gives you a total of 18 analog inputs on two XLR connectors and two DB-25 connectors, plus 22 analog outputs on three DB-25 connectors. Additional XLR connectors allow for two channels of AES I/O. You also get up to eight channels of ADAT I/O via optical connectors and two channels of S/PDIF I/O via RCA connectors. The chassis utilizes USB-C (Thunderbolt) connectivity for high-speed data transfer rates and compatibility with your computer. Its front panel presents a TFT touchscreen display, multifunction control knob, and convenient 1/4″ stereo headphone output.

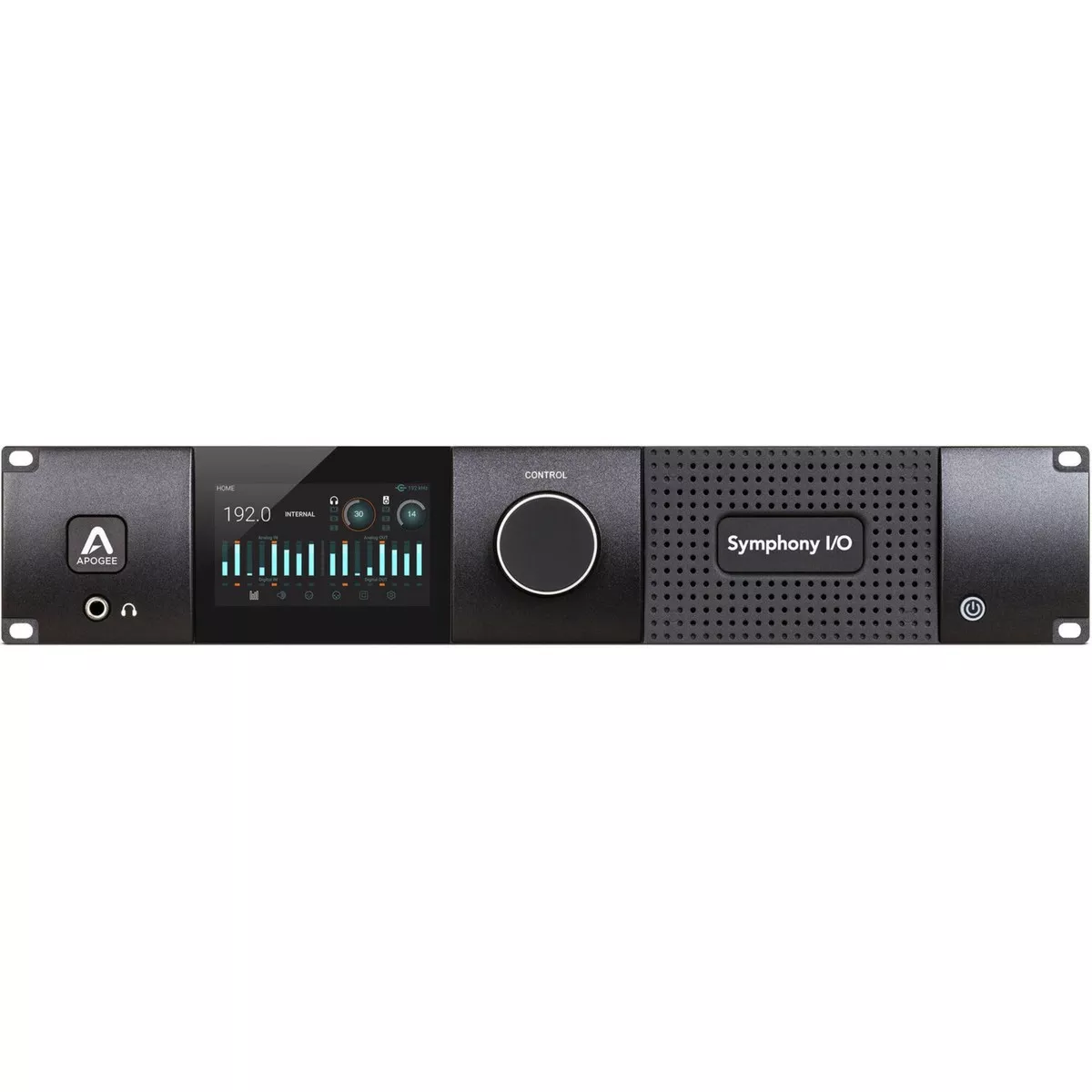

Apogee Electronics Symphony I/O Mk II Chassis (Thunderbolt)
TheSymphony I/O Mk IIfromApogee Electronicsis an advanced, flexible multi-channel audio interface featuring the newest flagship AD/DA conversion, modular I/O (up to 32 inputs and outputs), and an intuitive touchscreen display. The chassis provides two I/O Module slots for a variety of digital audio conversion options that form the interface side of the Symphony I/O Mk II. The front-panel touch screen offers convenient access to nearly every setting including sample rate, clock source, headphone & speaker output levels, meters for all I/O and section navigation, as well as input levels, digital I/O, and configuration settings.
The rear panel provides access to the two I/O Module slots that are capable of a combined thirty-two channels of input and output, while the two Thunderbolt connectors ensure compatibility with newer Mac computers. Also included are Wordclock I/O connectors & termination, an option card slot, and a quiet digitally-controlled fan to keep everything running cool.
The Symphony I/O Mk II features a single ultra-high-fidelity DAC and headphone amplifier with Apogee’s Constant Current Drive technology, which was first introduced in the Apogee Groove. The headphone amplifier dynamically compensates for non-linearities of any connected headphones, providing massive power while maintaining extremely low distortion and linear frequency response.
Theoptionalfive I/O Modules allow the user to choose from standard configurations, or customize the followingchannel count, analog to digital input, digital to analog output, microphone preamps (requires an analog card), and digital I/O.
Features:
- Symphony Mk II Chassis
- 16×16 SE Module
- 2×6 SE Module
- Thunderbolt Connectivity
- 18 Analog In / 22 Analog Out
- 2 S/PDIF I/O, AES I/O
- 8 ADAT I/O
- Up to 192 kHz Sample Rate
- Dolby Atmos Ready
- Color Touchscreen Display
