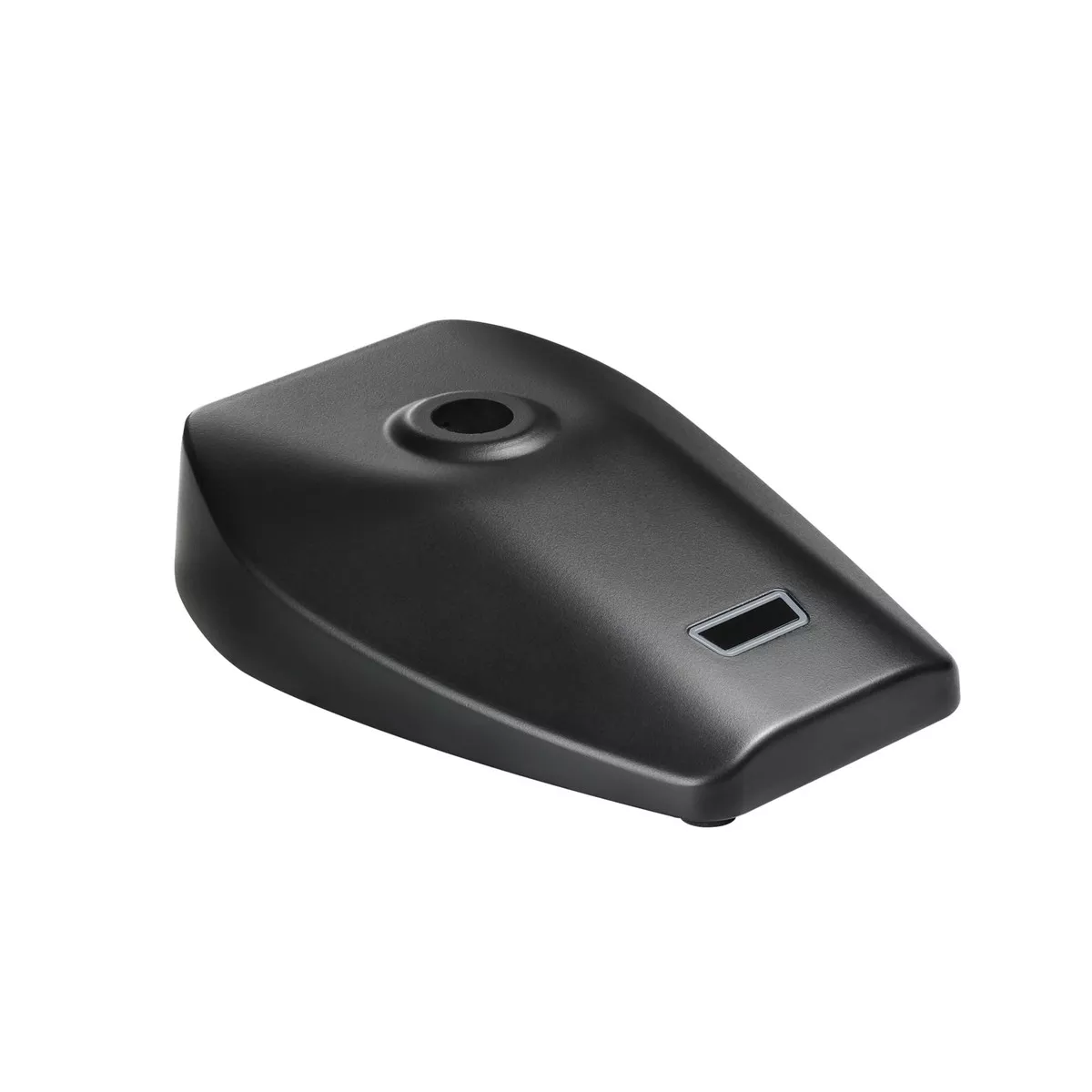

The ES8766RC desk stand power module works with ES925 goosenecks and microphone elements. The desk stand features a 5-pin TB5M-type output connector, heavy die-cast construction, and no-slip bottom pads to minimize coupling of surface vibration to the microphone. It is equipped with a touch-sensitive capacitive-type user switch with local and remote switching options. Locally, it can be set to any one of three operating modes: touch-on/touch-off, touch-to-talk and touch-to-mute. For enhanced control in conference and boardroom installations, the units external contact closure allows you to trigger an external device, such as a camera or the lighting, from the switch. The desk stand is also equipped with a highly visible, two-state RGB LED status indicator and a UniSteep filter that provides steep low-frequency attenuation to improve sound pickup without affecting vocal reproduction quality.
Specifications Low-Frequency Roll-Off: 80 Hz, 18 dB/octave
Impedance: 130 ohms
Switches: Activation: on/off
LED Color: mic on, mic off
Switch function: touch on/off, momentary on, momentary off
Control: local, remote, LED remote
Low cut: on/off
Phantom Power Requirements: 22-52V DC
Contact Closure: Closure input voltage: -0.55.5V
Maximum permissible power: 200 mW
On-resistance: 100 ohms
LED control: Active high (+5V DC) TTL compatible
Active low voltage: 1.2V or lower
Maximum permissible input power: -0.55.5V
Maximum permissible power: 200 mW
Weight: 640 g (22.6 oz)
Dimensions: 97.0 mm (3.82″) W x 130.0 mm (5.12″) D x 33 mm (1.30″) H
Output Connector: TB5M-type
Accessories Furnished: 7.6 m (24.9′) microphone cable (TA5F, unterminated); set screw (M2 x 2); hex wrench
