Overview of Audix ATS1L Series Table Stand w/ Programmable Switch for Logic-Enabled Conferencing Systems – Phoenix

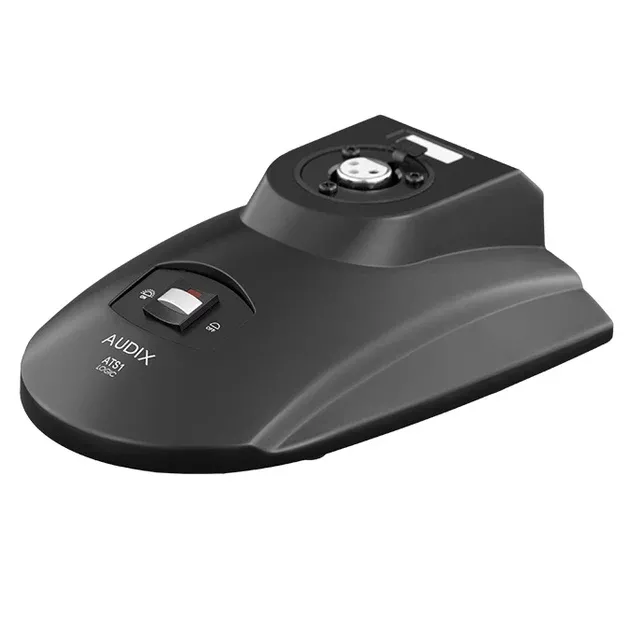

Designed for professional audio installations—particularly in the teleconferencing and video-conferencing arenas—the Audix ATS1LP is a table-stand intended for use with microphones. This stand offers a heavy-duty die-cast base, as well as a noise-free on-off switch, an LED indicator, and a 3-pin XLR connection for compatible microphones. The output provided in this model is a 5-pin Phoenix terminal.
Use this stand with phantom-powered, gooseneck condenser microphones. Set it atop podiums, lecterns, and other apposite surfaces in places such as classrooms, courtrooms, boardrooms, and more. Program the on-off switch to be used in either momentary or latching modes, so you can press it once for switching between on/off positions, or hold it down for the duration of a speech.
By means of a DIP switch, you can determine whether the switch is handled by the person speaking into the microphone, or externally, by means of logic-enabled teleconferencing media systems. You can also turn on a low-cut filter to eliminate low-end rumble and render the speaker more clear.
Features:
- Heavy-duty die-cast base for stability
- Programmable switch with momentary and latching options
- Hidden dip switches
- Bass roll-off filter
- LED indicator lights operate on phantom power
- Noise-free mechanical switch
- Operates on phantom power voltage of 36 to 52V
- 3-pin Mic XLR input connector designed for gooseneck condenser microphones
- Phoenix terminal for output connector
- Local/remote option allows use with automated mixers
- External LED control allows for live status of the microphone
- Shockmount design minimizes vibration
Specifications:
Input: 1x XLR Input
Output: 1x 5-pin Phoenix Terminal
Switch: Noise-Free Mechanical
Mute Attenuation: 45dB (Minimum)
Phantom Power Requirements: 36 to 52 V DC, 2mA Typical
Dimensions: 6.9 x 5.9 x 1.8″ / 160 x 124 x 45 mm
Voltage: Closure I/O Voltage for Logic-Enabled Conference Systems: -0.5 to 30 V
Current: Closure Through Current for Logic-Enabled Conference Systems: 200mA (Resettable Fuse Protected) I/O Leakage Current: 1 uA
Impedance: Closure Resistance: 200mA
LED: Active when Low (0.7V DC)
Weight: 3lb / 1.4 kg
