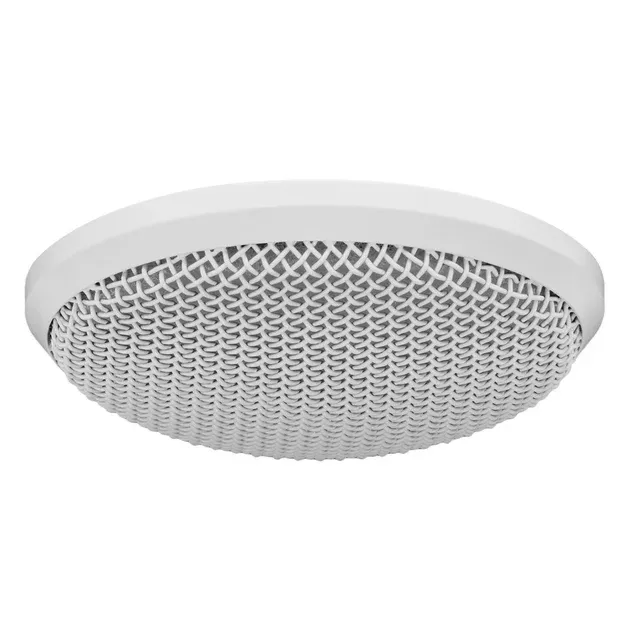

Overview of Audix M70 Series High-Output Flush Mount Ceiling Microphone – White
An audio installer will appreciate the Audix M70W Flush-Mount Ceiling Microphone, a white, steerable, flush-mount condenser microphone well suited for video teleconferencing, distance learning, boardrooms, surveillance, hospital and medical procedures, and ambient room miking applications.
The M70W capsule features a 12mm gold vapor diaphragm that’s capable of capturing frequencies from 60 Hz to 10 kHz with a maximum sound pressure level (SPL) of 130 dB. The capsule is housed within a cradle that allows the microphone to be aimed up to an angle of 45°. Other features include a fully integrated preamp and an extremely high-sensitivity rating with complete immunity from RF interference. Installing the M70W requires only a single 2″ hole in the ceiling, with no additional tools needed.
Features:
- High output for distance miking
- Immunity from RF interference
- Miniaturized integrated preamp circuitry
- 12mm gold vapor diaphragm
- Includes plenum rated box
- No external power adapter
- Point and shoot directivity
Applications:
- Video Conferencing
- Distance Learning
- Surveillance
- Hospital and Medical Procedures
- Ambient Room Miking
Specifications:
Polar Pattern: Cardioid
Element Type: Condenser
Frequency Response: 60Hz to 10kHz
Maximum SPL: 130dB
Analog Output: 1x Block Locking 3-Pin
Power Sources: Phantom Power
Sound Field: Mono
Diaphragm: 0.5″ / 12 mm
Orientation: End Address
Circuitry: Solid-State
Sensitivity: 38mV
Dynamic Range: 108dB
Equivalent Noise Level: 22dB
Cable Length: 1′ / 0.3 m
Dimensions (Diam x L): 3 x 6.9″ / 76.2 x 175.3 mm
