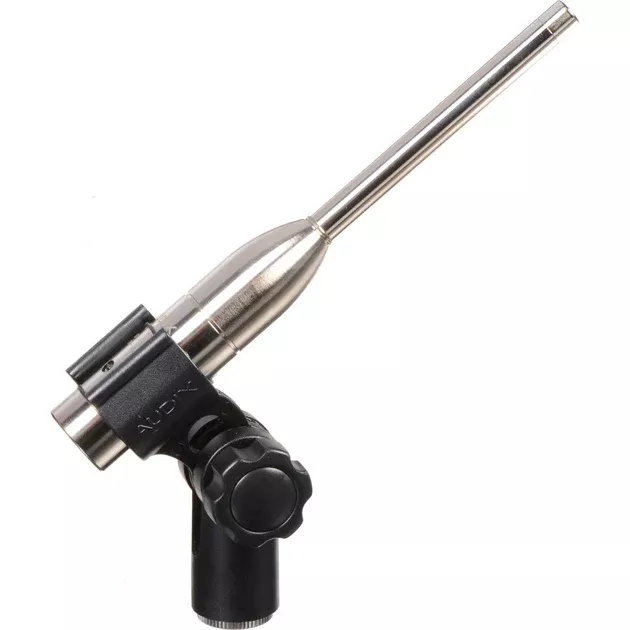

Overview of Audix TM1 Omnidirectional Test & Measurement Microphone
The TM1 is a 6 mm pre-polarized condenser microphone used for test and measurement applications. The TM1 is known for its linearity, accurate response, consistency, ease of use, and affordability.
Characterized by a uniformly controlled omni-directional polar pattern, the TM1 is designed to capture acoustic measurements for room analysis software programs, real-time analyzers, and other sound control devices. With a flat frequency range of 20 Hz – 20 kHz, the TM1 is an excellent tool for sound engineers, sound companies, and recording enthusiasts.
Requiring 24 – 48 Volts phantom power for operation, the TM1 features a precision-machined 4-stage brass body and capsule housing, nickel plate finish, Switchcraft® or Audix XLR, shock absorbent O-rings, and heavy-duty snap-to-fit mic clip.
Features:
- 6mm pre-polarized condenser capsule
- High SPL response
- Precision machined brass housings
- Low noise electronics
- Replaceable electronics and capsule
Applications:
- Test and measurement
- Real-time analyzers
- Room analysis software programs
- Ambient room miking
Specifications:
- Transducer Type: Pre-Polarized Condenser
- Frequency Response: 20Hz – 20kHz +/-2 dB
- Polar Pattern: Omnidirectional
- Output Impedance: 200ohms
- Sensitivity: 6 mV / Pa @ 1k
- Maximum SPL: 130 dB with distortion <1%
140 dB Max - Signal-to-Noise Ratio: 66dB
- Equivalent Noise Level: 28dB (A-Weighted)
- Dynamic Range: 112dB
- Connector: male XLR
- Power Requirements: 24 to 48 V Phantom Power
- Power Consumption: 8.9 mA @ 48V
- Polarity: Positive pressure on diaphragm produces postitive voltage on pin 2 relative to pin 3 of output XLR connector
- Materials / Finish: 4 piece precision machined
brass / Nickel Finish - Weight: 132 g / 4.7 oz
- Length: 150 mm / 5.9 in
