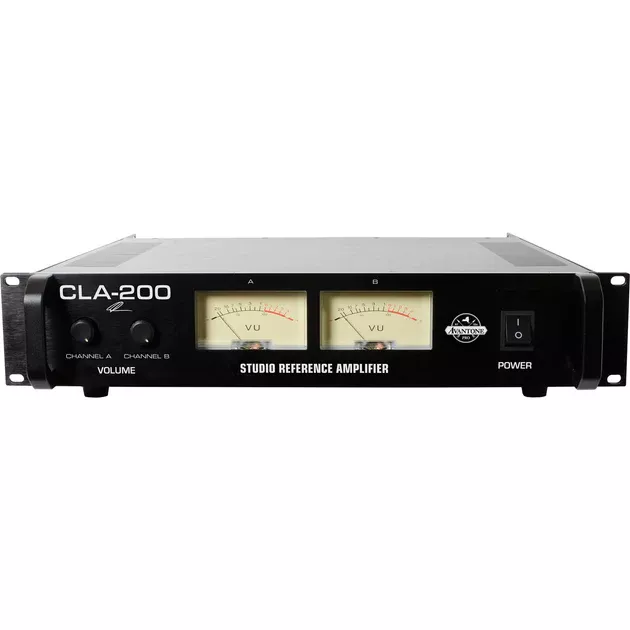

Overview of Avantone Pro CLA-200 Studio Reference Amplifier – 200-Watts / Channel
The Avantone Pro CLA-200 Studio Reference Amplifier is a classically designed Class A/B amplifier. Avantone design engineers took particular care to create an amplifier in the traditional studio style, with generous VU meters, high quality Japanese components and a serious toroidal transformer linear power supply. In a standard 2U rack mount chassis, this amplifier can generate over 200 watts per channel into an 8 ohm load, making it perfect for medium to large speakers in a studio environment. The CLA200 is also convection cooled no fan noise, so it can be used in the same room as the monitors.
The Avantone Pro CLA-200 Studio Reference Amplifier is a dynamic, high output, high resolution, full-range system built the old school way. Avantone included no-compromise components in a 2U convection cooled chassis to complement their CLA-10 Studio Reference Monitors. Of course, it can be used with any passive studio monitor requiring serious dynamic range.
Specifications:
Frequency Response: 20Hz-20kHz +/- 0.5dB
Output power:
- 200W at 8 ohms
- 300W at 4 ohms
- 500W bridged into 8 ohms
Distortion: 94dB
Input Impedance:
- Balanced: 20KΩ
- Unbalanced: 10kΩ
Damping Factor (100Hz, 8Ω): 250
Signal to Noise Ratio (A Weighted):>103dB
Amplifier: Class AB
Slew rate (at 1KHz): 28V/us
Input Sensitivity (1KHz): 0.775V (0dBU)
Total Harmonic Distortion (1KHz): <0.1%
Intermodulation distortion (at 10% rated power 1KHz): <0.1%
Crosstalk: -70dB
Weight: 20kg (44lb)
Music City Canada is an authorized reseller for Avantone Pro products.Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
