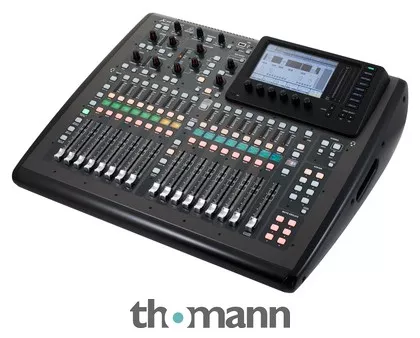

Digital Mixer
- 16 XLR Mic/ line Inputs
- 8 Stereo FX Returns
- 16 Mix buses
- 6 Matrix buses with insert
- 6 Mute groups
- 8 DCA groups
- 8 XLR Outputs
- 6 AUX In: 6.3 mm Jack (optionally 2 via RCA)
- 6 AUX Out: 6.3 mm Jack (optionally 2 via RCA)
- AES/EBU Stereo digital output
- 2 Headphone outputs: 6.3 mm Jack
- Stereo monitor/ control room output with dim function
- 32 In/ 32 out USB audio interface
- 100 mm Motor fader
- 7″ TFT colour display
- LCD Display per channel
- 4-Band full-parametric EQ per channel
- Adjustable delays in all channels
- Virtual effect rack with 8 FX slots
- Built-in stereo USB recorder
- Remote control via ethernet
- Compatible with the Behringer P-16 personal monitoring system
- Full MIDI implementation
- Dimensions (H x W x D): 21.3 x 63.1 x 51.2 cm
- Weight: 15.5 kg
- Suitable expansion boards: Dante: Art. 334096, Madi: Art. 337831
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJuly 2013
- Item number308703
- Sales Unit1 piece(s)
- Max.number of input channels 32
- Microphone Inputs 16
- Analog Line Inputs 32
- Analog Line Outputs 16
- Analog in/ out with plug-in card expandable Yes
- Digital Inputs None
- Digital Outputs AES
- Digital in-/ outputs expandable Yes
- Word Clock No
- Motorfader Yes
- Computer interface USB, Ethernet
- MIDI-interface Yes
- User InterfacePhysical/remote
- Number of faders17
- DSP Input channels32
- DSP Output Channels24
- Busses16
- Number of Microphone Inputs16
- Number of Mono Line Inputs6
- Number of Stereo Line Inputs0
- Physical outputs14
- Digital stagebox connectionAES50
- EthernetEthernet
- HotspotNo
- Multitrack RecordYes
- Special FeaturesCompatible with BEHRINGER P-16 Personal Monitoring System, 32 in / 32 out FW Interface
- Soundcard interfaceUSB-B
- integratated Player/Rec via USB/SDstereo
- Recorder FormatWAV
- Scribble StripsYes
- RTAYes
- FX Processor8
- 31 Band EQ8
- Delay InputYes
- Delay OutputYes
- Matrix6
- DCA/VCA Groups8
- MIDI InterfaceMidi-Din
- Sample rate48 kHz
- Monitor AppsYes
- Separate Personal Monitor systemOptional
- Expansion Card slots1
- Digital ADATOptional
- Digital SPDIFNo
- Digital AES3/ASESEBYes
- Digital MADIOptional
- Digital DanteOptional
- 110V capableYes
- CaseIncluded
- 19″ RackmountNo
- Height215 mm
- Width625 mm
- Depth510 mm
- Weight15,4 kg
