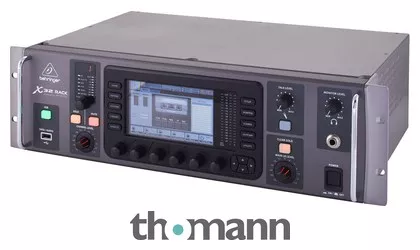

19″ Rack Mixer
- 32 Channels
- 16 XLR Mic/Line inputs
- 8 Stereo FX returns
- 25 Buses
- 6 Matrix buses with insert
- 6 Mute groups
- 8 DCA groups
- 8 XLR outputs
- 6 AUX inputs via 6.3 mm jack (optional: 2 via RCA)
- 6 AUX outputs via 6.3 mm jack (optional: 2 via RCA)
- Adjustable headphone jack
- 32 x 32 USB audio interface
- Talkback microphone input (XLR)
- 4-Band fully parametric EQ on each channel
- Adjustable delays on all channels
- Virtual effects rack with 8 FX slots
- Built-in stereo USB recorder
- Remote control via Ethernet
- 5″ TFT display
- Compatible with the Behringer P-16 personal monitoring system
- Format: 19″ / 3U
- Dimensions: 132 x 483 x 287 mm
- Weight: 6.5 kg
- Optional expansion cards are available separately (not included, must be purchased separately)
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceSeptember 2013
- Item number310536
- Sales Unit1 piece(s)
- User Interface Physical/remote
- Number of faders 0
- DSP Input channels 32
- Number of Microphone Inputs 16
- Physical outputs 14
- Digital stagebox connection AES50
- Hotspot No
- Multitrack Record Yes
- integratated Player/Rec via USB/SD stereo
- 19″ Rackmount Yes
- DSP Output Channels24
- Busses16
- Number of Mono Line Inputs6
- Number of Stereo Line Inputs0
- EthernetEthernet
- Soundcard interfaceUSB-B
- Recorder FormatWAV
- RTAYes
- FX Processor8
- 31 Band EQ8
- Delay InputYes
- Delay OutputYes
- Matrix6
- DCA/VCA Groups8
- MIDI InterfaceMidi-Din
- Sample rate48 kHz
- Monitor AppsYes
- Separate Personal Monitor systemOptional
- Expansion Card slots1
- Digital ADATOptional
- Digital SPDIFNo
- Digital AES3/ASESEBNo
- Digital MADIOptional
- Digital DanteOptional
- 110V capableYes
- CaseNo
- Height132 mm
- Width483 mm
- Depth287 mm
- Weight6,5 kg
