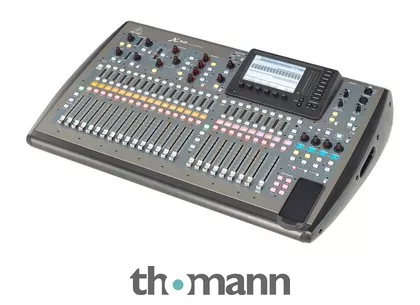

32-Channel, 16-Bus Digital Mixer
- 32 XLR Mic/Line inputs
- Eight stereo FX returns
- 16 mix busses
- Six matrix buses with insert
- Six mute groups
- Eight DCA groups
- 16 XLR outputs
- Six Aux in via 6.3 mm jack (optionally two via RCA)
- Six Aux out via 6.3 mm jack (optionally two via RCA)
- AES/EBU stereo digital output
- Two headphone outputs via 6.3 mm jack
- Stereo monitor/control room output with dimming and mono function
- 32-in/32-out USB audio interface
- 100 mm motorised fader
- 7″ TFT colour display
- LCD display per channel
- 4-band fully parametric EQ per channel
- Adjustable delays in all channels
- Virtual effects rack with eight FX slots
- Built-in stereo USB recorder
- Remote-controlled via USB or Ethernet
- Compatible with Behringer P-16 Personal Monitoring System
- Full MIDI implementation
- Dimensions (W x D x H): 900 x 550 x 230 mm
- Weight: 20.0 kg
- Including Behringer dust cover
- Suitable expansion card: SD Record Item No. 448412 (not included)
- Suitable case: Art. 281791 (not included)
- Suitable cover: Art. 487523 (not included)
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceAugust 2012
- Item number259395
- Sales Unit1 piece(s)
- Max.number of input channels 32
- Microphone Inputs 32
- Analog Line Inputs 32
- Analog Line Outputs 16
- Analog in/ out with plug-in card expandable Yes
- Digital Inputs None
- Digital Outputs AES
- Digital in-/ outputs expandable Yes
- Word Clock No
- Motorfader Yes
- Computer interface USB, Ethernet
- MIDI-interface Yes
- User InterfacePhysical/remote
- Number of faders25
- DSP Input channels32
- DSP Output Channels24
- Busses16
- Number of Microphone Inputs32
- Number of Mono Line Inputs6
- Number of Stereo Line Inputs0
- Physical outputs22
- Digital stagebox connectionAES50
- EthernetEthernet
- HotspotNo
- Multitrack RecordYes
- Special FeaturesCompatible with BEHRINGER P-16 Personal Monitoring System, 32 in / 32 out FW Interface
- Soundcard interfaceUSB-B
- integratated Player/Rec via USB/SDstereo
- Recorder FormatWAV
- Scribble StripsYes
- RTAYes
- FX Processor8
- 31 Band EQ8
- Delay InputYes
- Delay OutputYes
- Matrix6
- DCA/VCA Groups8
- MIDI InterfaceMidi-Din
- Sample rate48 kHz
- Monitor AppsYes
- Separate Personal Monitor systemOptional
- Expansion Card slots1
- Digital ADATOptional
- Digital SPDIFNo
- Digital AES3/ASESEBYes
- Digital MADIOptional
- Digital DanteOptional
- 110V capableYes
- CaseIncluded
- 19″ RackmountNo
- Height200 mm
- Width900 mm
- Depth528 mm
- Weight20,6 kg
