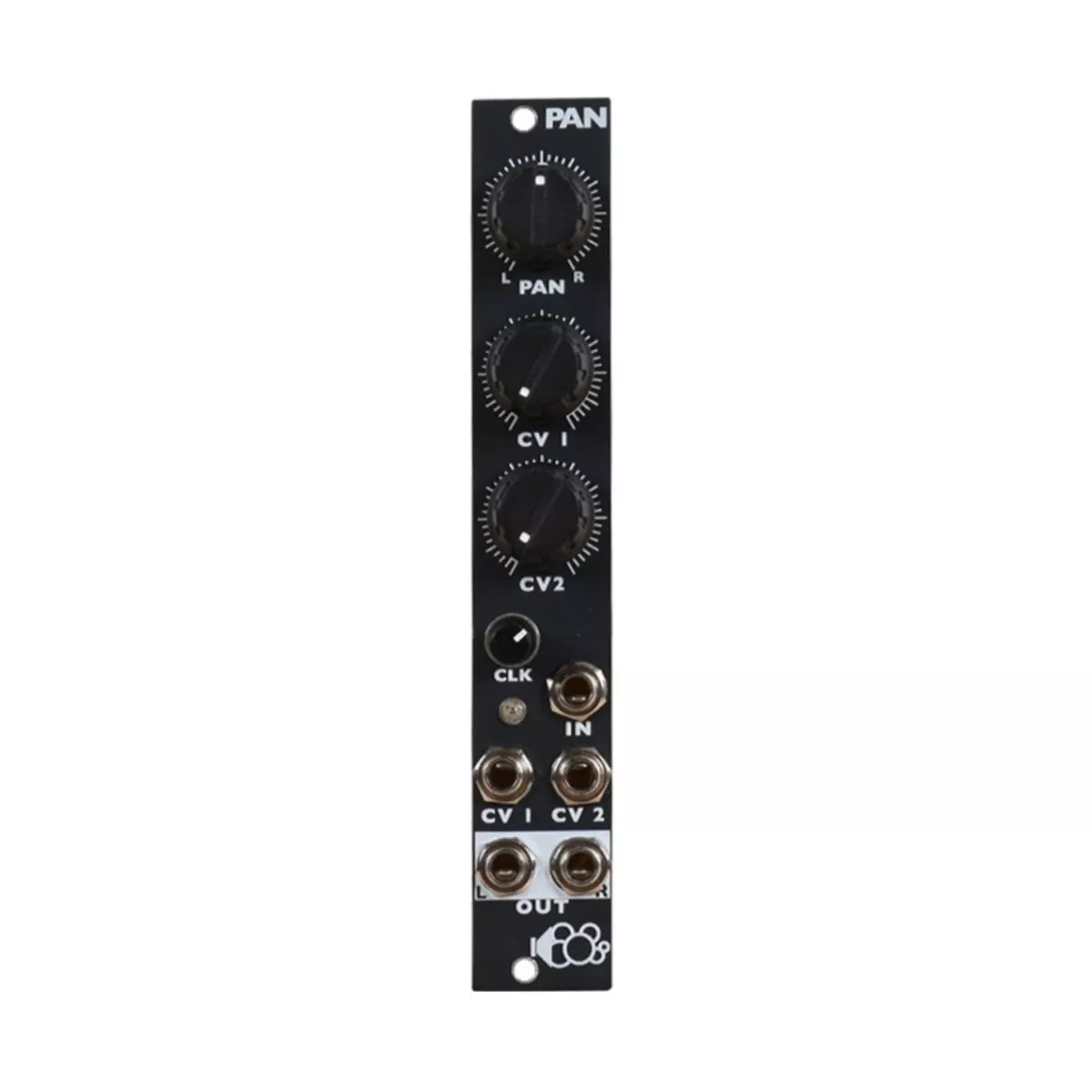

The Bubblesound Pan is a compact Eurorack panning module designed for dynamic stereo placement and flexible signal routing. It allows a single audio or CV input to be smoothly positioned between left and right outputs, either manually or via voltage control.
Equipped with two CV inputs and a built-in LFO, Pan enables evolving spatial movement without requiring external modulation sources. Its DC-coupled design also allows it to process both audio and control voltages, making it useful for routing modulation signals as well as audio. With fast response and VCA-based architecture, it can even be used creatively for pseudo-ring modulation effects.
Features
Single-input stereo panning module for Eurorack systems
Voltage-controlled panning between left and right outputs
Two CV inputs with independent attenuation control
Built-in LFO with adjustable rate for automatic modulation
Normalled LFO connection to CV input for immediate use
DC-coupled signal path for audio and CV processing flexibility
Capable of audio-rate CV processing and creative modulation routing
VCA-based design allows pseudo-ring modulation applications
Compact module ideal for space-efficient systems
Specifications
Product: Bubblesound Pan Eurorack Module
Function: Voltage-controlled stereo panner
CV Inputs: 2 (with attenuation)
Internal Modulation: Built-in LFO with rate control
Signal Type: DC-coupled (audio and CV compatible)
Width: 4HP
Depth: 20 mm
Power Consumption: 30 mA @ +12V / 30 mA @ -12V
Included
Bubblesound Pan Eurorack panning module
