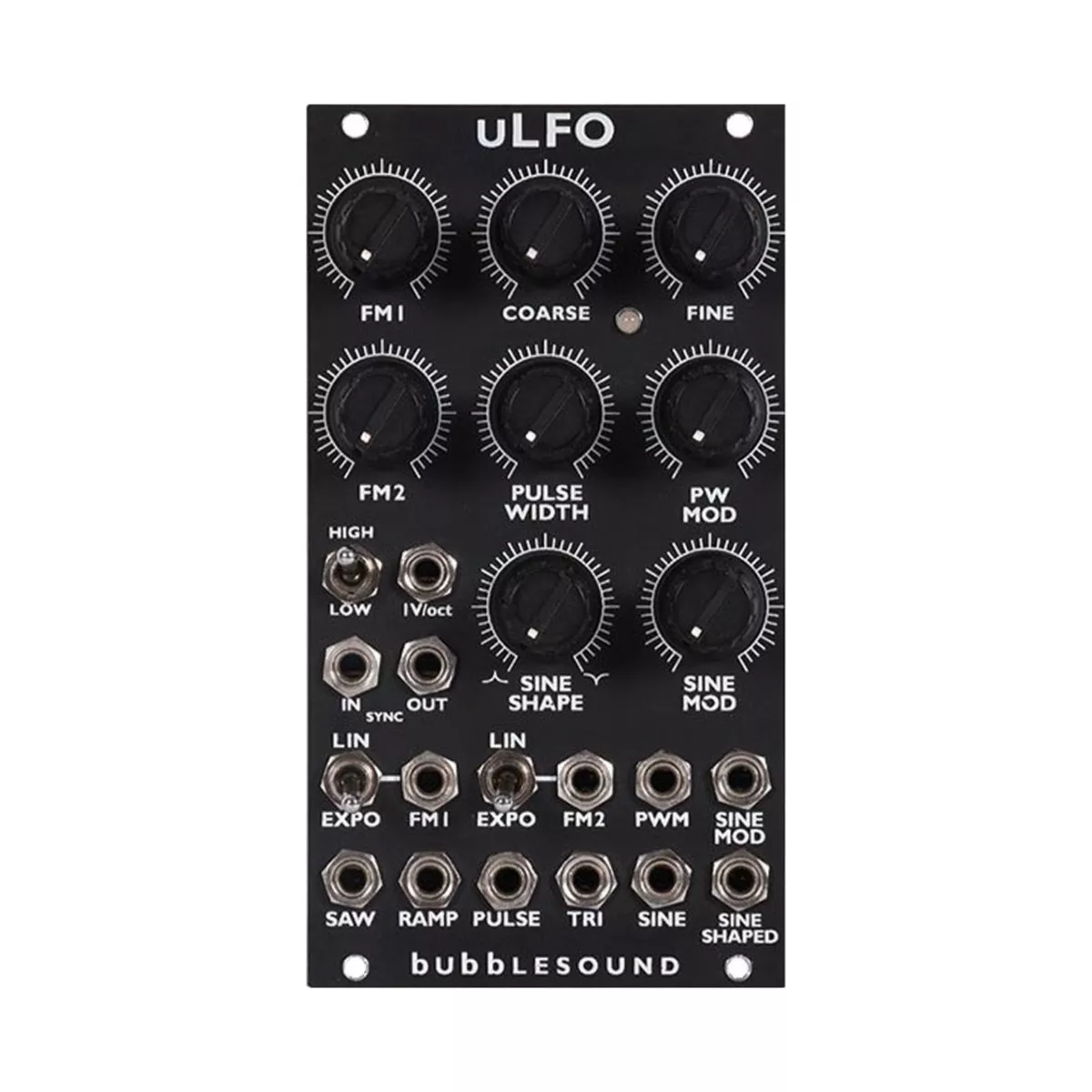

The Bubblesound uLFO is a highly versatile voltage-controlled low-frequency oscillator that extends far beyond a traditional LFO, offering wide-ranging modulation and audio-rate capabilities. With a frequency range spanning from extremely slow cycles of up to 60 minutes to high-speed oscillation reaching approximately 3.6 kHz, it can function as both a modulation source and an audio-rate oscillator.
The module provides seven simultaneous waveform outputs, including saw, ramp, triangle, pulse, square (sync output), sine, and a unique shaped sine wave. The shaped sine morphs between exponential forms and a clean sine response, offering rich and dynamic modulation possibilities.
The pulse output features continuously variable pulse width control (0100%), adjustable manually or via CV with attenuation, enabling PWM-style movement and complex rhythmic modulation. Two frequency modulation inputs with attenuators allow for linear or exponential FM routing, giving deep control over modulation behavior and timbre.
Additional functionality includes 1V/oct tracking over approximately 45 octaves, making the uLFO capable of acting as a secondary oscillator when needed. A sync input allows external synchronization for rhythmic or phase-locked modulation setups. The module also exhibits intentional amplitude variation at extreme settings, which can be creatively exploited, including pseudo-VCA behavior using the sine modulation input.
Features
Wide-range voltage-controlled LFO with audio-rate capability
Frequency range from ~60-minute cycles to ~3.6 kHz
Seven simultaneous waveform outputs
Saw, ramp, triangle, pulse, square (sync), sine, and shaped sine outputs
Unique shaped sine wave with morphing exponential characteristics
Pulse width modulation (0100%) with CV control and attenuation
Two FM inputs with attenuators and selectable linear/exponential response
1V/oct tracking over 45 octaves
Sync input for external synchronization
Capable of pseudo-VCA behavior via sine output modulation
Specifications
Product: Bubblesound uLFO
Type: Voltage-controlled LFO / oscillator
Frequency Range: ~60 minutes to ~3.6 kHz
Waveforms: 7 simultaneous outputs
CV Inputs: FM (2), PWM, sync, 1V/oct
Width: 16HP
Depth: 60 mm
Power Consumption: +100 mA / -100 mA
Included
Bubblesound uLFO module
