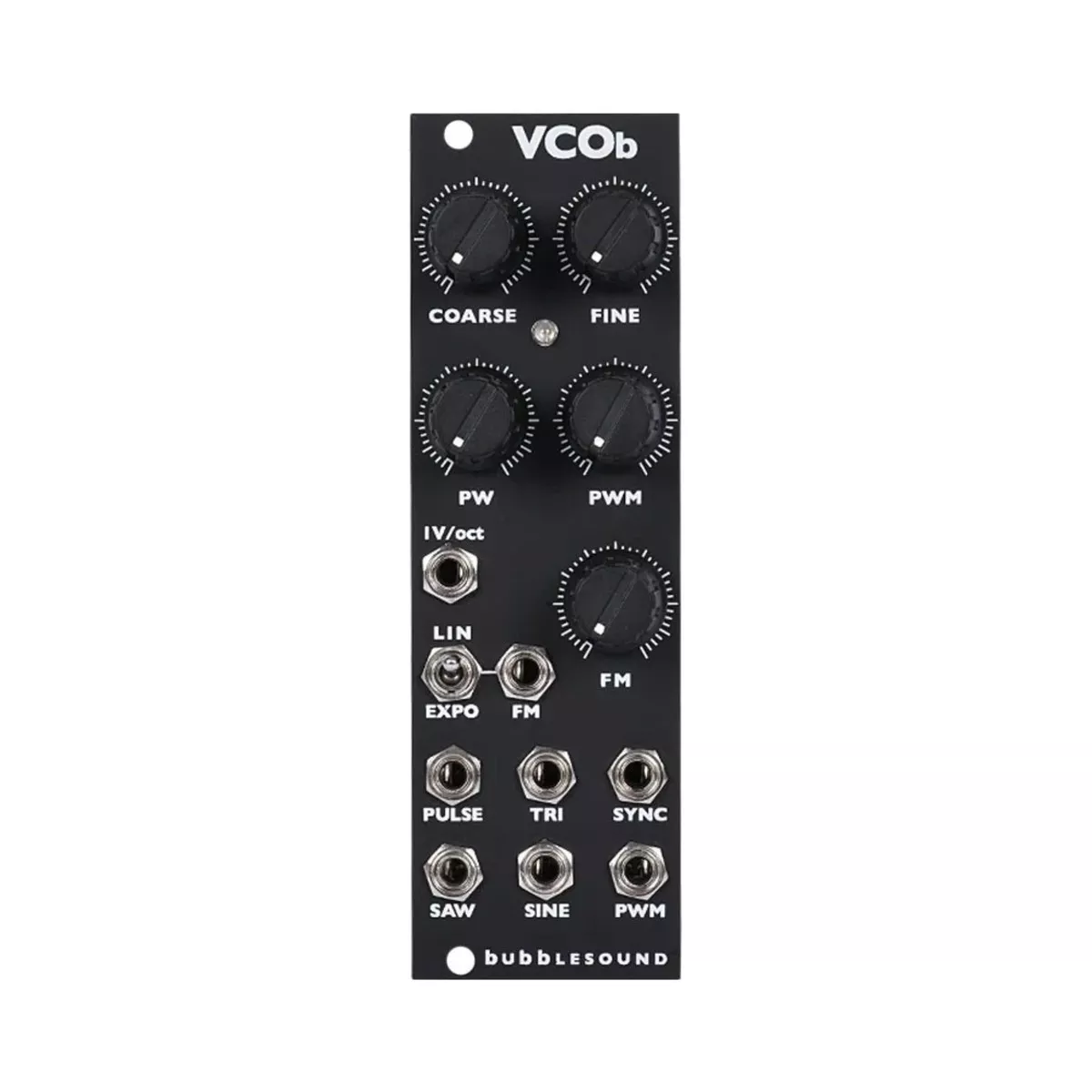

The Bubblesound VCOb is a wide-range analog triangle-core voltage-controlled oscillator designed for both audio synthesis and low-frequency modulation. Its extended frequency range allows operation from slow LFO-style movement up into the upper limits of human hearing, making it a flexible sound source for a variety of modular systems.
The oscillator maintains stable 1V/oct tracking over approximately 46 octaves, providing reliable pitch control for melodic and harmonic applications. Its triangle-core design delivers smooth, musical waveforms and classic analog character.
Multiple waveform outputs are available, including triangle, saw, sine, and pulse. The pulse waveform features manual width control as well as CV modulation with full 0100% range, enabling rich PWM effects. A dedicated FM input with attenuation and a selectable linear or exponential response allows for expressive frequency modulation, from subtle timbral movement to complex modulation textures.
Features
Analog triangle-core voltage-controlled oscillator
Wide frequency range: LFO speeds to audio-rate pitch
Stable 1V/oct tracking over 46 octaves
Triangle, saw, sine, and pulse waveform outputs
Pulse width modulation with full 0100% range
PWM input with CV attenuation
FM input with attenuator
Selectable linear or exponential FM response
Designed for stable pitch and musical analog tone
Specifications
Product: Bubblesound VCOb
Type: Analog triangle-core VCO
Waveforms: Triangle, saw, sine, pulse
Pitch Tracking: 1V/oct over 46 octaves
FM Input: Linear / exponential selectable, with attenuator
PWM: Manual + CV control (0100%)
Width: 10HP
Depth: 60 mm
Power Consumption: +50 mA / -50 mA
Included
Bubblesound VCOb module
