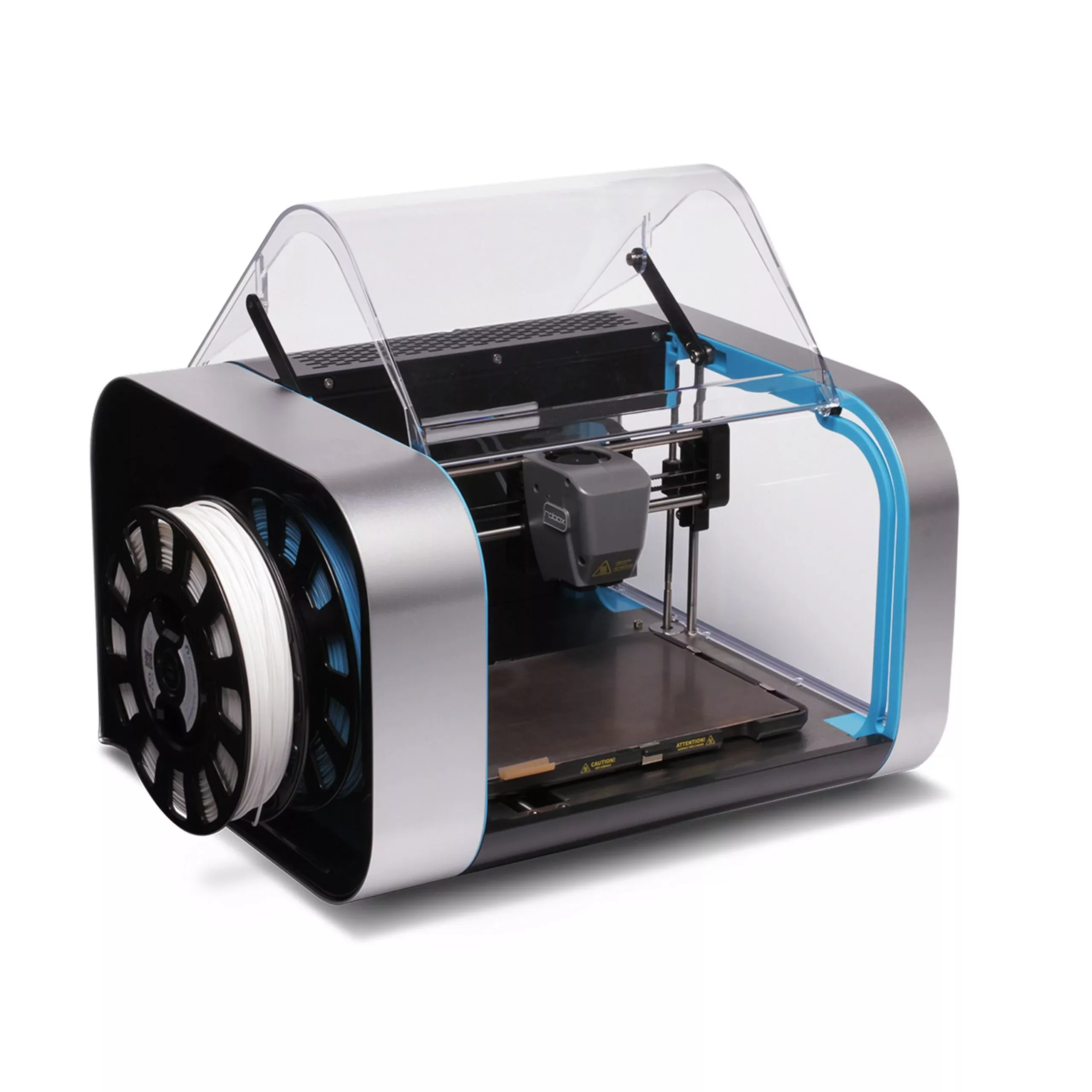

CEL RoboxDual Dual Material 3D Printer
RoboxDual isan update to the original Robox and includes a DualMaterial Head, 2 extrudersand the ability to print in 2 materials at once. Updated parts andmanufacturing techniques provide redundancy and future proofing.
2 HeadLockcompatible heads are included in this package; providing improved detail,higher speeds and model strength and now multiple materials in a single print.The unique DualMaterial Head and the spectacular QuickFill Head which has wonRobox so much praise.
The bestthing about dual material printing is the ability to create parts which werepreviously difficult or even impossible with a single material printer. Bycreating a support structure with a material which can peel away or bedissolved from the model easily we can increase the accuracy of overhangs andstill remove these supports without damaging the model. A mechanical designengineer can now prototype injection mould designs on their desk withoutneeding to modify the design for ease of printing.
Get a Robox on your desk now!
Robox offersbetter features, resolution and reliability than a 3D printer more than 10x theprice. Stop queuing for that clunky old overpriced industrial printer orwaiting for parts from the cripplingly priced prototype bureau. Make what youneed, when you want to, easily.
Professional users
On deskprototyping, simple 3 step workflow, plug and print. Increased productivitywill be easy to prove. Dual material printing does not need a big investment orextra staff to run it. Try one Robox and you will soon invest in many more, theprice of Robox allows every engineer to have one on their desk.
Home users
Robox willsoon be your favourite tool, it is easy to use due to good design. This designdoes not limit its potential, it leaves you as a user able to spend more timecreating and less time scratching your head wondering what the printer isdoing. Start your 3D print experience with a successful print, not a solderingiron.
Educators
At anylevel, Robox can help to demonstrate an idea, prove a theory or inspire acareer. Robox will give teachers the confidence to press print and be certainof the result or even to allow students full access to the printer due toinbuilt safety features.
3D print experts
You may havetried the best of the rest, the kit printers, the well known competition ofRobox, all of them are using the same technologies. Some do it well, some havegood features but none of them have true innovation. Robox nozzles close, thisis unique to Robox. Ooze, stringing, retracts, you know these terms, they don’tapply to Robox. Viscous materials will not leak out, dual material printingwill not waste material and time doing purges, wipe towers or heating/coolingoperations. Robox nozzles lift out of the way when not in use, they don’t dragacross the print or get stored away to dribble in the corner.
TechnicalSpecifications
External Dimensions
410 x 340 x240mm (16.1 x 13.4 x 9.4”)
Build Volume
210 x 150 x100mm (8.3 x 5.9 x 3.9”)
Layer Resolution
Custom 50 to500 microns / 0.05mm to 0.5mm
Presets 100,200, 300 microns / 0.1 to 0.3mm
Positioning Precision
XY: 7.5microns (0.0003”)
Z: 0.15625microns (0.000006”)
Nozzle Diameter(s)
QuickFillHead
0.3mm and0.8mm (0.012” and 0.031”)
DualMaterial Head
2x 0.4mm(0.015”)
SingleX Experimental Head (optional)
0.6mm (0.023”)
Material Compatibility
1.75mmFilament
PLA, ABS,HIPS, Nylon, PC, PVOH, CO-PET, PETG, TPU and variants of these materials.
SingleX only- Carbon-filled, Glass-filled and ‘Glow in the dark’ materials (i.e. abrasive).
Robox AutoMaker
SupportedOperating Systems
Windows,MacOS, Linux
Heatup Speed
Bed: 130Cin 4 mins to 150C MAX
Nozzle: 240in 1 min to 280C MAX
