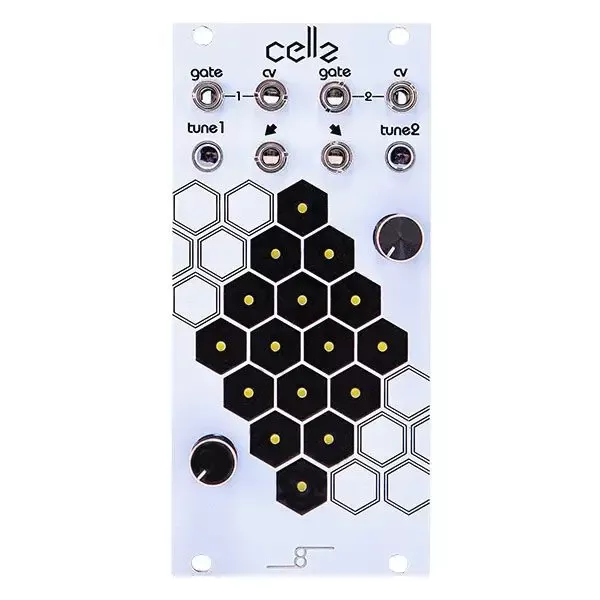

Cellz – programmable CV touch pad
If we were being technical we’d talk in corporate speak and say “Cellz is a dual unipolar control voltage generator and that each of the 16 touch sensitive pads can be “fed” two 12bit values (semi-tone quantized or free scale), ranging from 0V to 10V.” But really it’s just simply a funky module you can use as a controller or a wacky sequencer.
- Width = 12hp
- Depth = 30mm
- 2.5mA power draw when running +12V rail
- 27mA power draw when running +5V rail
- 1.5mA power draw when running -12V
- 0-10V voltage range output 1
- 0-10V voltage range output 2
- Minimum voltage required to set LFO triggers 1/2 high = 0.8V
