Enhancing quietness.
The NSG: Noise Gate comes as a response to these annoyances. Utilizing an adjustable threshold level to filter out sounds below a certain threshold, allowing for only the desired audio to be seized.
Threshold

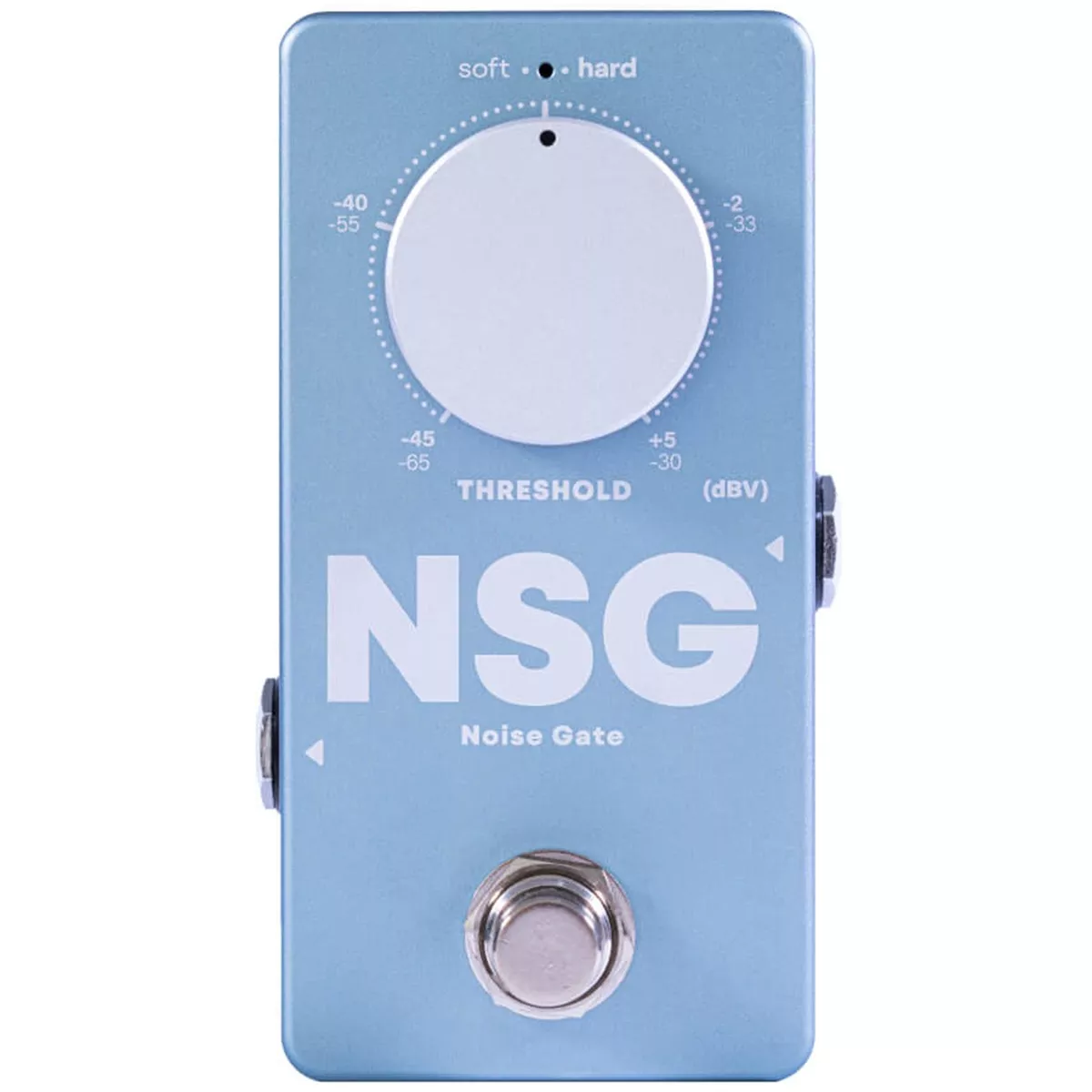

Use this push knob to control the threshold of the noise gate. Press the knob to switch between the Soft mode (Blue LED color) for softer gain reduction and Hard (Red LED color) for the more aggressive gate operation.
Threshold range
From -65 dBV to -30 dBV in Soft mode.
From -45 dBV to +5dBV in Hard mode.
Dimensions
Width: 50 mm /2
Length: 36,5 mm/ 1
Height: 100 mm / 4
Weight: 205 g / 0,45 lb
Technical Specifications
Input Impedance: 1 M
Output Impedance: 100 k
Current Consumption: ~60 mA
Voltage 9V DC (Center Negative)
Warning
The NSG Noise Gate has a current draw of 60 mA. Only use a regulated 9V DC adapter with a center-negative plug.
Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage your unit, voiding the warranty.
