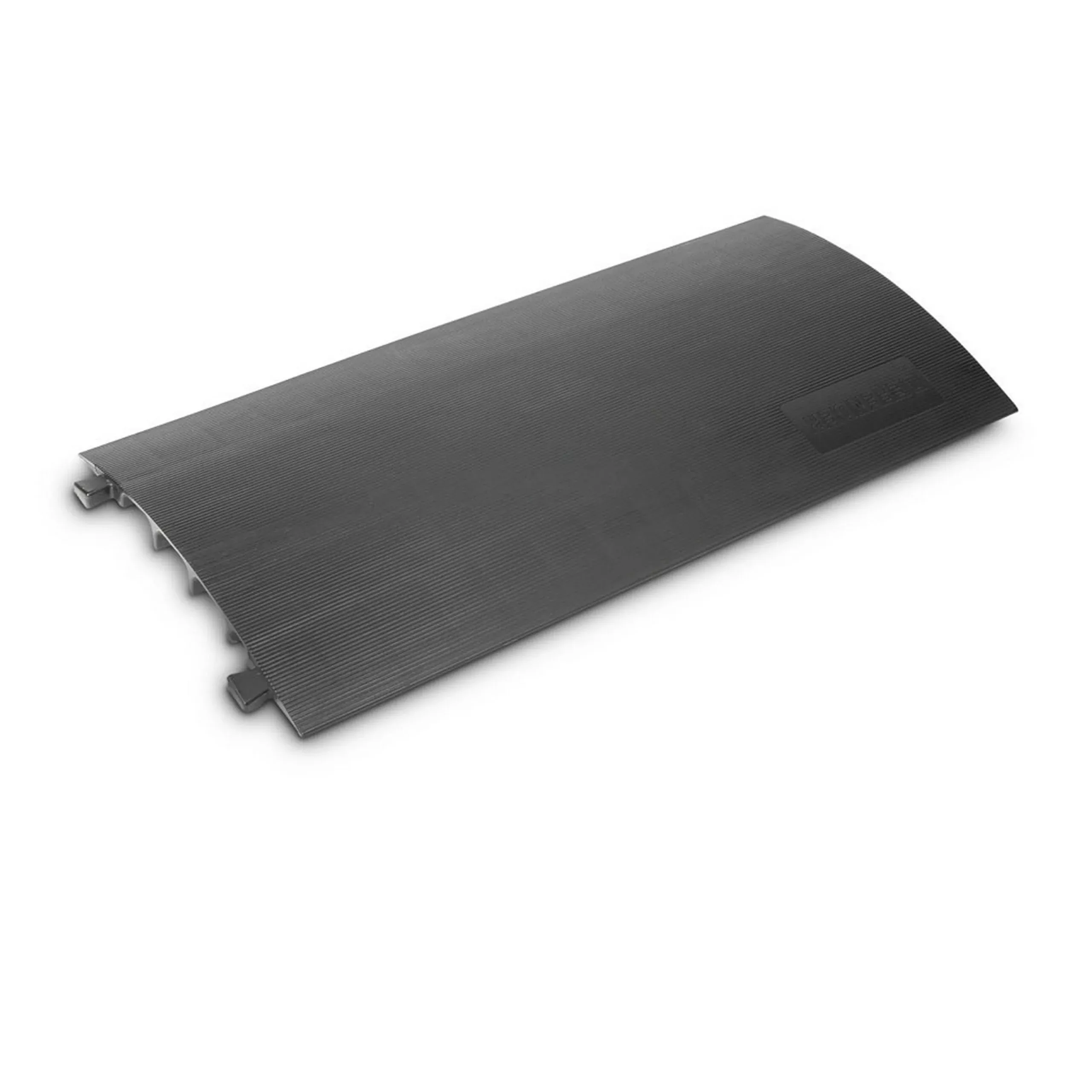

Defender 85100 COMPACT Cable Protector, 7-Channel
The DefenderCOMPACT drop-over cable protector is a durable light-duty solution to guardcable lines and prevent tripping hazards. Featuring a ribbed surface forexcellent traction and integrated dovetail connectors Defender COMPACTdrop-over cable ramps are suitable for pedestrian traffic in offices, shoppingmalls, conference facilities, trade shows and markets as well as stage andstudio applications.
Key Features
- Non-slip,overlaid cable protector made of black, recyclable polyurethane
- 7 channels:1 channel 28 x 30 mm, 2 channels each 28 x 23 mm, 28 x 27 mm und 28 x 29 mm
- Fireresistance class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)
- Resistant tooil, acids, solvents, and petrol
- Dimensions80 x 43 x 4 cm; Weight 3.5 kg
- Reliableprotection for cables and personnel for indoor and outdoor use
- Expandablewith Base Item No. 85103 for higher loads such as forklifts and lifting trucks
- Channelswith base: 5 channels 22 x 21 cm
- Weight withbase: 7 kg
- Not suitablefor vehicular traffic
TechnicalSpecifications
Product type
CableProtectors
Type
7 Channels
Length
806 mm
Width
435 mm
Height
37 mm
Channels
7
Width channel 1
28 mm
Height channel 1
23 mm
Width channel 2
28 mm
Height channel 2
27 mm
Width channel 3
28 mm
Height channel 3
29 mm
Width channel 4
28 mm
Height channel 4
30 mm
Width channel 5
28 mm
Height channel 5
29 mm
Width channel 6
28 mm
Height channel 6
27 mm
Width channel 7
28 mm
Height channel 7
23 mm
Material
polyurethane
Max. load
Pedestrians,bicycle
Chemical resistance
acid-resistant, oil-resistant , petrol-resistant
Hardness range
88 – 4 Shore
Fire protection class
B2
Temperature range
-30 to 60 C
Weight
2,05 kg
Special feature
DEKRA-certified
