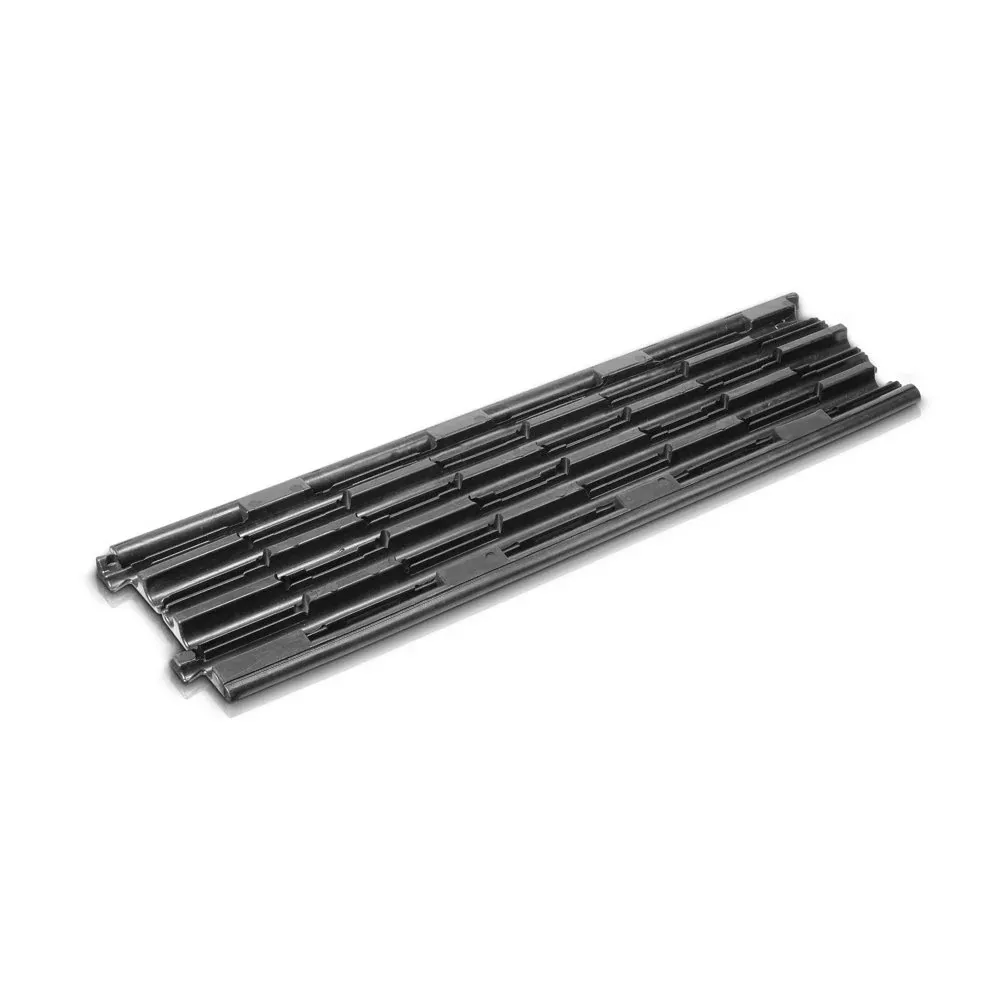

Defender 85103 COMPACT Base for 85100 Cable Protector, 5-Channel
Attached tothe optional 5-channel base the Defender COMPACT drop-over cable protectortransforms into a heavy-duty guard with high load capacity to support trucks,forklifts and other vehicles. The ribbed surface provides excellent tractionwhile integrated connectors on the base and drop-over facilitate lining up toform a rigid continuous protection system. The range of applications includesconstruction sIt’s, carnivals, fairs, trade shows, exhibitions, warehouses,shopping malls and music events.
Key Features
- Fireresistance class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)
- Resistant tooil, acids, solvents, and petrol
- Dimensions80 x 43 x 4 cm
- Reliableprotection for cables and personnel for indoor and outdoor use
- Suitable forhigher loads such as forklifts and lifting trucks
- Channelswith base: 5 channels 22 x 21 cm
- Weight withbase: 7 kg
- Not suitablefor vehicular traffic
Technical Specifications
Product type
CableProtector Accessories
Type
5-channel ,Bases
Length
804 mm
Height
37 mm
Width
241 mm
Channels
5
Width channel 1
22 mm
Height channel 1
21 mm
Width channel 2
22 mm
Height channel 2
21 mm
Width channel 3
22 mm
Height channel 3
21 mm
Width channel 4
22 mm
Height channel 4
21 mm
Width channel 5
22 mm
Height channel 5
21 mm
Material
polyurethane
Max. load
Fork lift,lifting truck
Chemical resistance
acid-resistant, oil-resistant , petrol-resistant
Weight
2,031 kg
Special feature
DEKRA-certified
