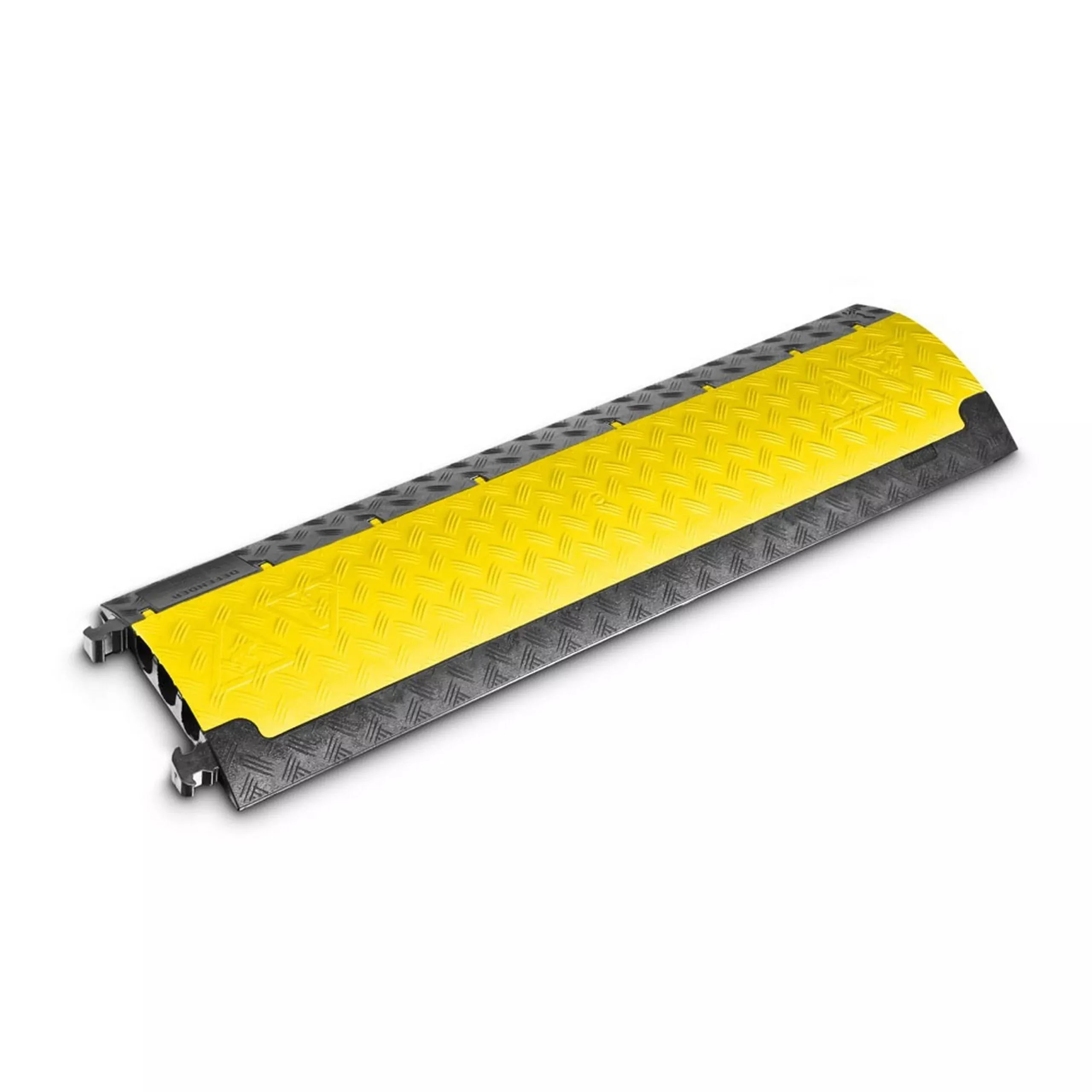

Defender 85200 MINI Cable Protector, 3-Channel
The DefenderMINI cable crossovers are also available with either a black or yellow lid andare suitable for indoor and outdoor use. The flat, compact, 3-channel cablecrossover with integrated connector plugs and non-slip base provides optimumsupport on a wide variety of floors. Separately available end ramps(male/female) ensure safe and orderly insertion and removal of cables. DefenderMINI cable crossovers withstand a load of 2 tonnes on an area of 20 x 20 cm, sothey are suitable for light vehicles, trolleys and pedestrians. Defender MINIcable crossovers can be used at carnival events, trade shows, exhibitions,shopping centres and storage facilities as well as in theatres, studios and TVstations. Not suitable for road traffic.
Key Features
- Compact,non-slip cable protector made of black, recyclable polyurethane
- Yellowpolyethylene lid with high warning effect and secure closure (also availablewith black lid, Item No. 85200BLK)
- Patented,self-cleaning lid hinge
- 3 channels:1 channel 35 x 35 mm, 2 channels 35 x 30 mm
- Load bearingcapacity approx. 2t / 20 x 20 cm
- Fireresistance class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)
- Resistant tooil, acids, solvents, and petrol
- Dimensions100 x 29 x 4.8 cm; Weight 5 kg
- Reliableprotection for cables and personnel for indoor and outdoor use
- Not suitablefor vehicular traffic
- End rampsfor secure cable inlet and exit as accessories
TechnicalSpecifications
Product type
CableProtectors
Type
3 Channels
Width
290 mm
Height
48 mm
Length
1000 mm
Channels
3
Width channel 1
35 mm
Height channel 1
30 mm
Width channel 2
35 mm
Height channel 2
35 mm
Width channel 3
35 mm
Height channel 3
30 mm
Material
polyurethane
Max. load
approx. 2 ton a surface area of 20 x 20 cm
Chemical resistance
acid-resistant, oil-resistant , petrol-resistant
Hardness range
88 Shore – 4Shore
Fire protection class
B2
Temperature range
-30 to +60C
Weight
4,652 kg
Special feature
DEKRA-certified
