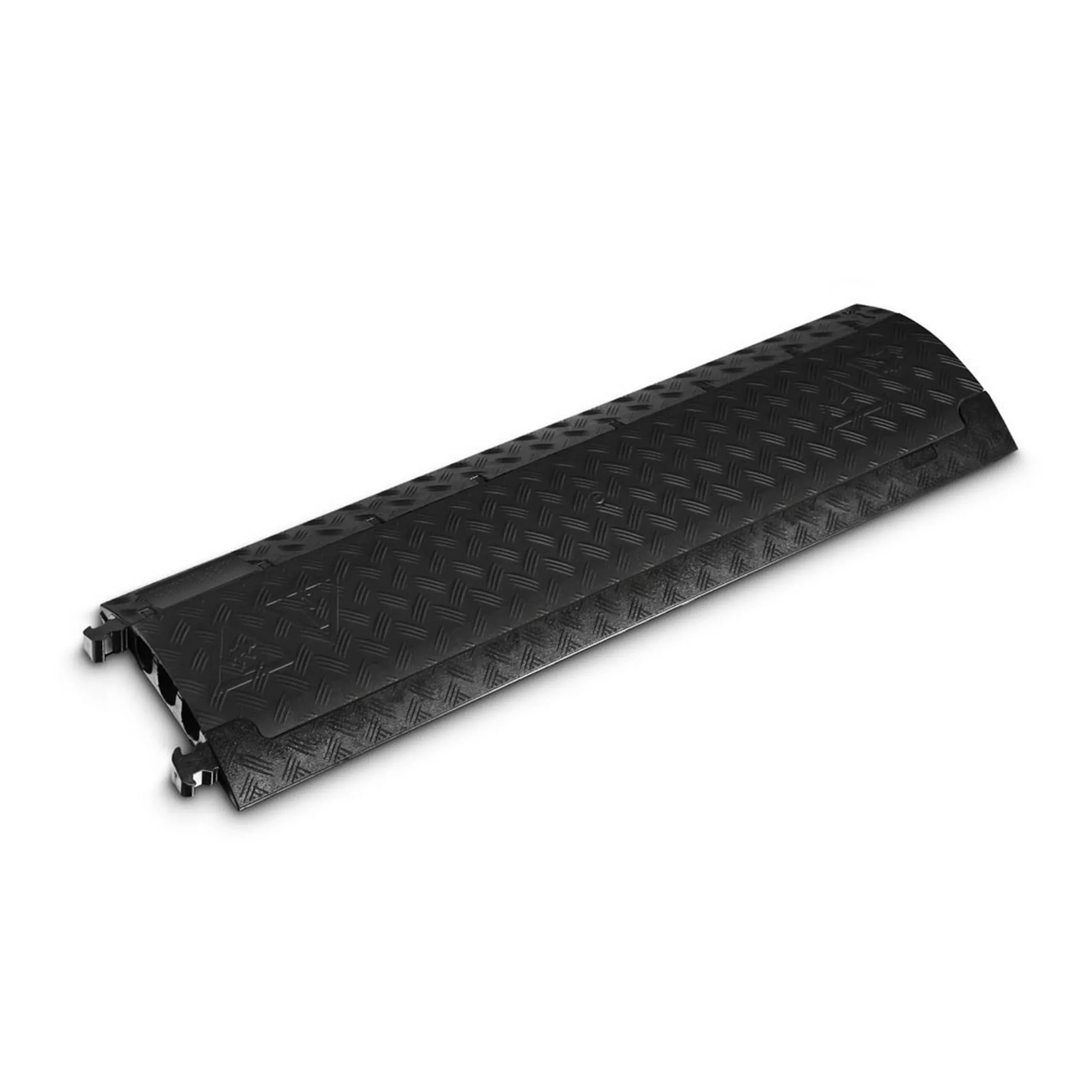

Defender 85200BLK MINI 3-Channel Cable Protector with Black Cap
Small butsturdy. Light, professional and universally useable. The new DEFENDER Minimeets all expectations when it comes to professional cable protection,expanding the DEFENDER series to include a compact, very light (only 5 kg!)cable crossover capable of supporting vehicle traffic. Sporting three cablechannels with a channel cross-section of 35 mm and an installation height of 48mm, this crossover is mainly used indoors, but with a capacity of more than 2tonnes it can easily withstand road traffic, too. The base of the DEFENDER Minihas a non-slip surface so as to guarantee optimum support on as many differentfloor types as possible. Like all of the DEFENDER cable crossovers, theDEFENDER Mini is resistant to oil, acids & petrol and has a patentedself-cleaning hinged closure.
Key Features
- Compact,non-slip cable protector made of black, recyclable polyurethane
- Blackpolyethylene lid with secure closure
- Patented,self-cleaning lid hinge
- 3 channels:1 channel 35 x 35 mm, 2 channels 35 x 30 mm
- Load bearingcapacity approx. 2t / 20 x 20 cm
- Fire resistanceclass B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)
- Resistant tooil, acids, solvents, and petrol
- Dimensions100 x 29 x 4.8 cm; Weight 5 kg
- Reliableprotection for cables and personnel for indoor and outdoor use
- Not suitablefor vehicular traffic
- End rampsfor secure cable inlet and exit as accessories
TechnicalSpecifications
Product type
CableProtectors
Type
3 Channels
Width
290 mm
Height
48 mm
Length
1000 mm
Channels
3
Width channel 1
35 mm
Height channel 1
30 mm
Width channel 2
35 mm
Height channel 2
35 mm
Width channel 3
35 mm
Height channel 3
30 mm
Material
polyurethane
Max. load
approx. 2 ton a surface area of 20 x 20 cm
Chemical resistance
acid-resistant, oil-resistant , petrol-resistant
Hardness range
88 Shore – 4Shore
Fire protection class
B2
Temperature range
-30 to +60C
Weight
4,652 kg
