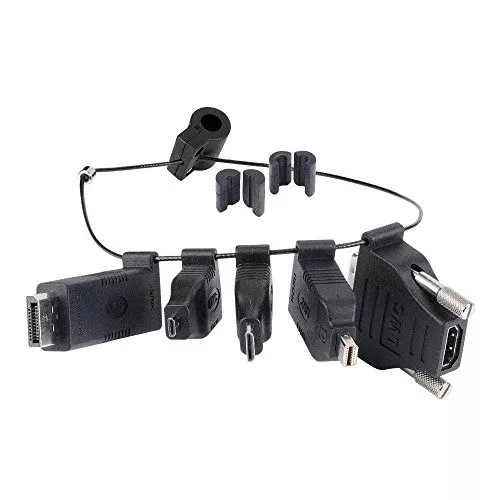

DigitaLinx DL-AR 5 Universal HDMI Adapter Ring Complete Assembly
Don’t be a loser – Eliminate your customer’s panic & expense when presentation adapters go missing or get lost! Make Liberty’s breakthrough DL-AR adapter ring part of every install and feel the love from your customers! Our patent-pending tensile aircraft strength ring & clamp locks in the HDMI cable going to your display while any adapter you may need is at your fingertips.
Not only do you get a solid and reliable connection, but the adapters are guaranteed to stay locked to the HDMI cable so they won’t get lost for the next presentation!
Key Features
- Security loop with faux ferrite and 4 adapters to HDMI
- DisplayPort Plug (Male) to HDMI Jack (Female)
- Mini DisplayPort Plug (Male) to HDMI Jack (Female)
- Mini HDMI (C) Plug (Male) to HDMI Jack(Female)
- Micro HDMI (D) Plug (Male) to HDMI Jack (Female)
- DVI-D Plug (Male) to HDMI Jack (Female)
- DisplayPort adapters support audio
- Faux ferrite and wire loop – attach to HDMI cable
- 2 sizes of foam rubber spacers, standard and micro cable
- Adapting various mobile content devices to HDMI
- Interfacing Laptops, Macs, iPad, Smartphone to HDMI
- Boardroom, Education, House of Worship, Presentations
Technical Specifications
- DisplayPort Adapter (ARDPHD)
- Input : Male full size DisplayPort connector
- Output : Female HDMI type A receptacle
- Compliance : DisplayPort 1.1 for 1.62 and 2.7 Gbps
- HDMI to 2.25 Gbps
- Supported video resolutions
- PC: Up to 1920×1200
- HDTV: Up to 1080p
- Mini DisplayPort Adapter (ARMDPHD)
- Input : Male mini DisplayPort connector
- Output : Female HDMI type A receptacle
- Compliance : DisplayPort 1.1 for 1.62 and 2.7 Gbps
- HDMI to 2.25 Gbps
- Supported video resolutions
- PC: Up to 1920×1200
- HDTV: Up to 1080p
- Mini HDMI Adapter (ARMCHD)
- Input : Male mini HDMI type C connector
- Output : Female HDMI type A receptacle
- Compliance : HDMI to 2.25 Gbps
- Supported video resolutions .PC: Up to 1920×1200
- HDTV: Up to 1080p
- Micro HDMI Adapter (ARMDHD)
- Input : Male micro HDMI type D connector
- Output : Female HDMI type A receptacle
- Compliance : HDMI to 2.25 Gbps
- Supported video resolutions
- PC: Up to 1920×1200
- HDTV: Up to 1080p
- Single Link DVI-D Adapter (ARDVHD)
- Input : Male single link DVI-D connector
- Output : Female HDMI type A receptacle
- Compliance : HDMI to 2.25 Gbps
- Supported video resolutions
- PC: Up to 1920×1200
- HDTV: Up to 1080p
- Cable and Clamp Assembly (DL-CL)
- Security Cable Material : Steel with black polyethylene sheath
- Security Cable Length : 450 mm (17.72 in)
- Cable Clamp Dimensions (closed) : 17 mm x 24 mm x 26.5 mm (0.67 in x 0.94 in x 1.04 in.)
- Cable Clamp Inner Diameter : 9 mm (0.35 in.)
- Cable Clamp Material : Black ABS plastic
- Mid Insert Diameter : 6 mm (0.24 in.)
- Small Insert Diameter : 4 mm (0.16 in.)
- Mid, Small Insert Material : Foam rubber
Installation / Use Cases
- Use the HDMI adapter ring in boardrooms, classrooms, houses of worship, and presentation spaces where different source devices need to connect to a shared HDMI display system.
- Connect devices with DisplayPort, Mini DisplayPort, Mini HDMI, Micro HDMI, or DVI-D outputs to a compatible HDMI cable using the attached adapters.
- Secure the adapter assembly to the display’s HDMI cable with the steel security loop and clamp to help keep presentation adapters available at the installation.
- Use the DisplayPort and Mini DisplayPort adapters when audio and video need to pass through a compatible HDMI connection.
Package Contents
- DigitaLinx DL-AR 5 Universal HDMI Adapter Ring Complete Assembly
