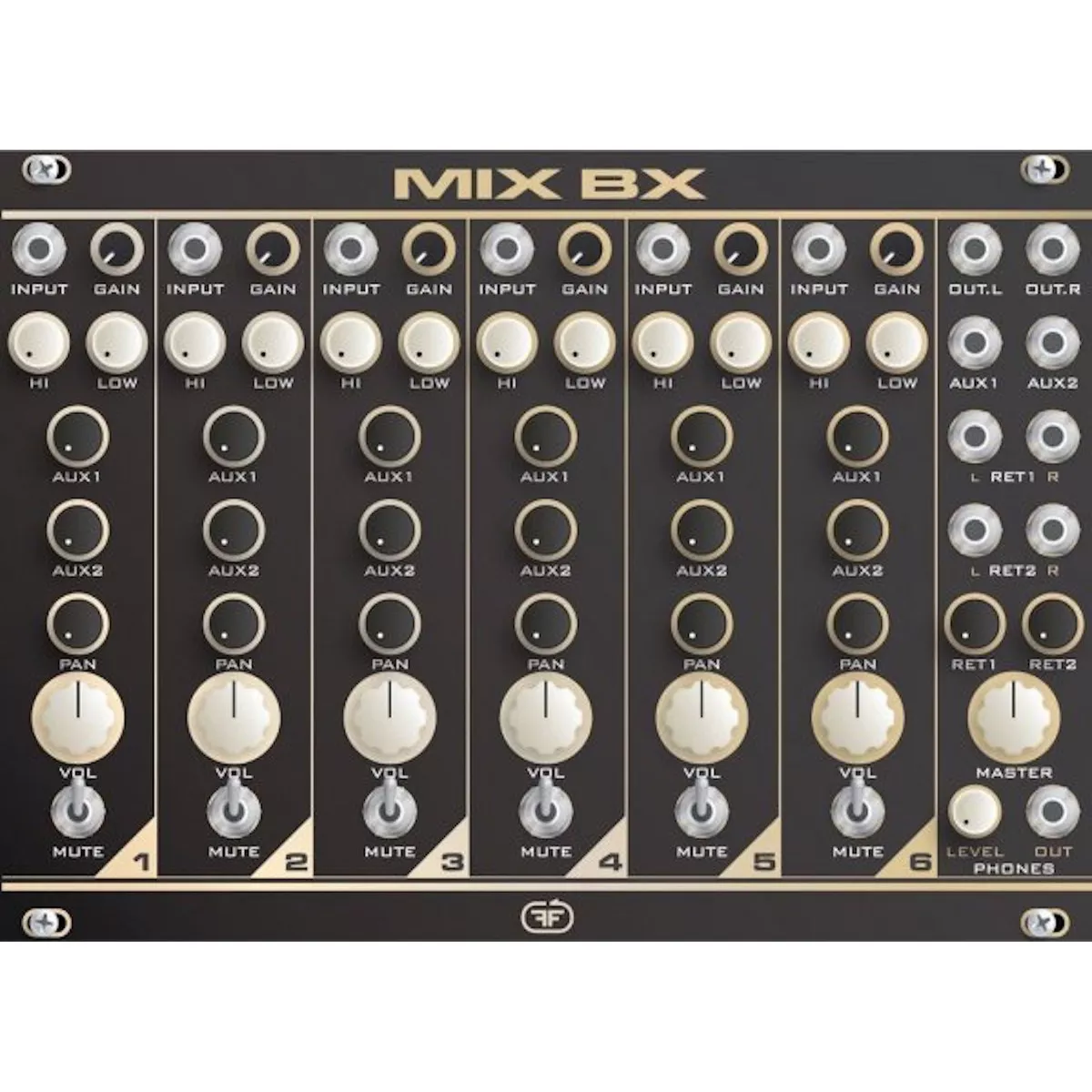

6 Channel Mixer
As probably many of you know the MIX BX (like our PRE BX channel strip) is based on a very popular mixer used by techno artists in the nineties and loved for its specific sound.
Tech specs:
- 35HP front panel
- 35mm depth behind front panel including the power connector
- 6 mono input jacks ( 1 per channel)
- Pot controls for channels : Gain, Hi, Low, Aux1 send, Aux2 send, Pan, Volume
- 6 mute switches (1 per channel)
- Pot controls for master : Master Level, Headphone Level, Aux1 Return, Aux2 Return
- 2 x mono aux send jacks
- 4 mono input jacks for two stereo Aux returns
- 2 jacks for master left and right out
- one 3.5mm stereo jack for headphone out
- boxed 10 pin euro power (+12V / -12V)
- Input Level from -50dBm to -10dBm
- EQ Hi +-10dBm/10kHz shelf type
- EQ Low +-10dBm/100Hz shelf type
- Output Level 20Vpp
