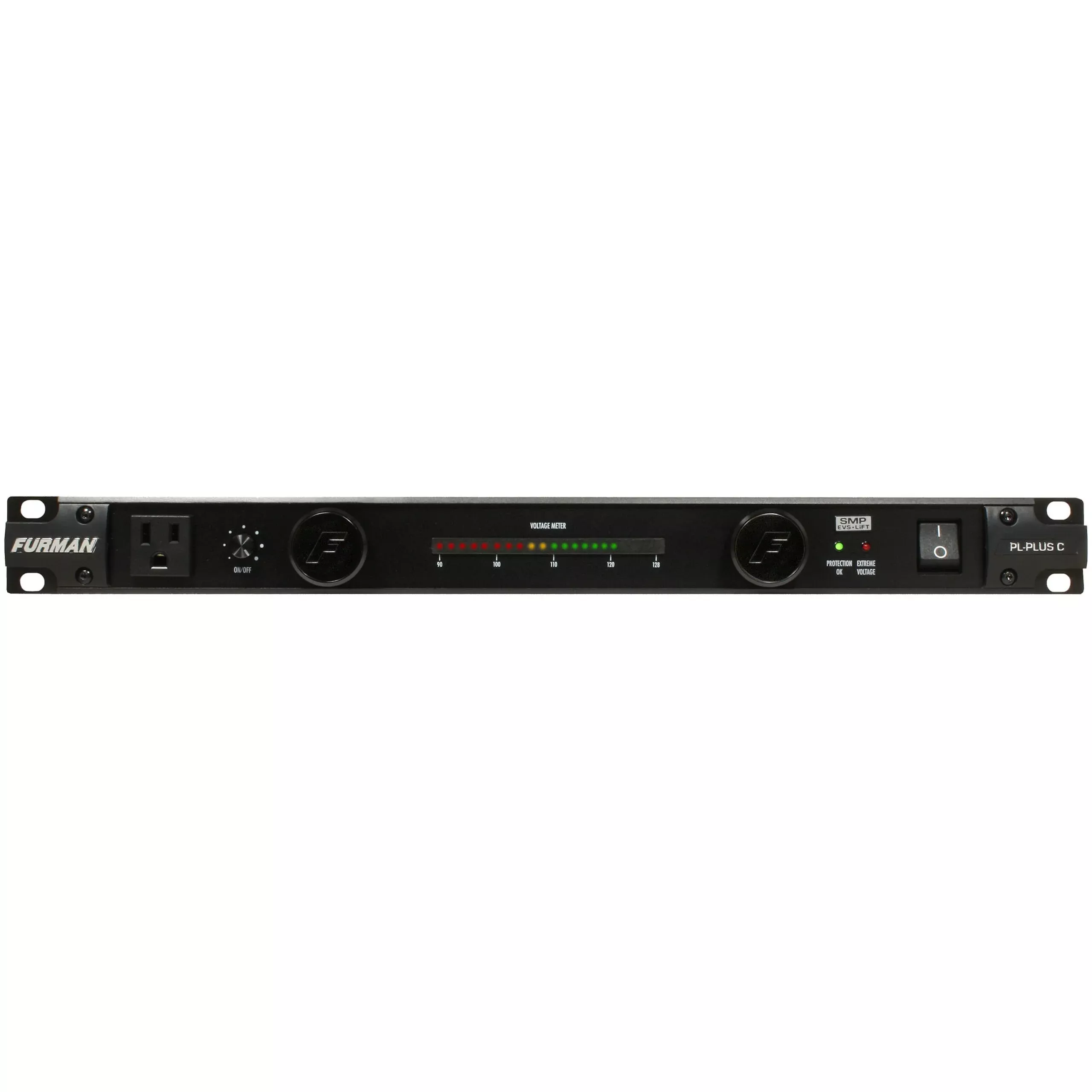

Furman PL-PLUSC 15A Power Conditioner with Lights, Voltmeter

Furman PL-PLUSC 15A Power Conditioner with Lights, Voltmeter

The Classic Series from Furman brings together superiorprotection and outstanding performance in a sturdy, rack-mountable design. TheClassic Series features Furman’s revolutionary Series Multi-Stage Protection(SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS).Together, these technologies comprise what is, without question, one of theworld’s most advanced and comprehensive transient voltage surge supressors.

Key Features

• Furman’s exclusive SMP technology provides the highest levelof surge & spike protection available
• LiFT offers AC power filtering to ensure clean power for unequaledaudio & video clarity
• Advanced EVS circuitry detects dangerous voltage irregularitiesand safely powers down itself and connected equipment in unsafe conditions
• Dual smooth track retractable LED lights illuminateequipment in your rack
• LED status indicators warn you when voltage is outside ofnominal range or when protection has been compromised
• Segmented LED voltmeter monitors and displays incoming linevoltage
• Isolated outlet banks minimize inter-component interferenceand noise contamination
• Three widely spaced outlets accommodate bulky AC powertransformers
• 15 Amp rating featuring a high inrush magnetic circuitbreaker for added protection
• Nine total outlets (8 rear panel outlets and one front panelconvenience outlet)
• Rear panel BNC connector powers any standard gooseneck lampfor rear rack illumination

Technical Specifications

Family
Classic Series
Line Voltage
120 (Volts)
Number of Outlets
9
Number of IsolatedBanks
2
Outlet Descriptions
All 9 outlets linearly filtered and surge protected
Rack Mountable
Yes
Rack Ears Included
Yes
Front Panel Meter(s)
Segmented LED voltmeter
Front Media Light(s)
2 multi-LED, dimmable lamps
Control
Front panel On/Off switch
Voltage Regulation
No
Compliancec
TUVus
AC Power Cord
10 ft, captive 3/14 AWG, with NEMA 15 plug
Dimensions
19″ W x 10.5″ D x 1.75″ H
Weight
12 lbs
Power Consumption
12 Watts
AC Protection
AC ProtectionTechnology
Extreme Voltage Shutdown
Series Multi-Stage Protection
Non-sacrificial protection with zero ground contamination
Under-Voltage Shutoff
90V
Over-Voltage Shutoff
140 VAC
Maximum CurrentRating
15 (Amps)
Initial Clamping Level
188 VAC peak @ 3,000 Amps
Filtration
Filtration Technology
LiFT
Filtration Rating
10 dB @ 10 kHz
40 dB @ 100 kHz
50 dB @ 500 kHz
Signal LineProtection
No
Shipping Info
Length
21.6 (Inches)
Width
14.8 (Inches)
Height
4.1 (Inches)
Weight
11.8 (Lbs)
Unit of Measure
Each
UPC
654061027973
