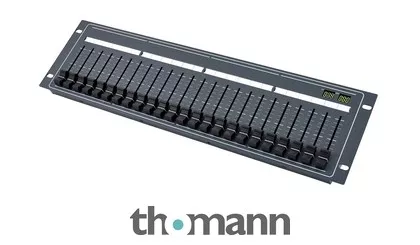

DMX controlThe SIMPLE DESK 24 is a 19″ 24 channel DMX control panel, which can also easily be used as a faderwing via LTP. Through the dip-switch on the backside, several start addresses can be defined in a simple way: the SIMPLE DESK 24 via a 3-pole, DMX input / output.
- Standard DMX-512 protocol
- 24 channel faders
- 2 LED display for channel display & DMX value
- 10 channel dipswitch for DMX start addresses
- Selectable DMX display for 0 – 255 and 0 – 100%.
- Up to 4 SimpleDesk 24s can be connected
- Usable with most DMX light desks
- LTP support in DMX mode
- 3 pin neutrik male & female In / Out
- Built-in power supply: 110 V – 240 V (50 – 60 Hz)
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJune 2013
- Item number317519
- Sales Unit1 piece(s)
- Preset Function No
- External Storage No
- DMX – Universes 1
- max. Channels 24
- Ethernet No
