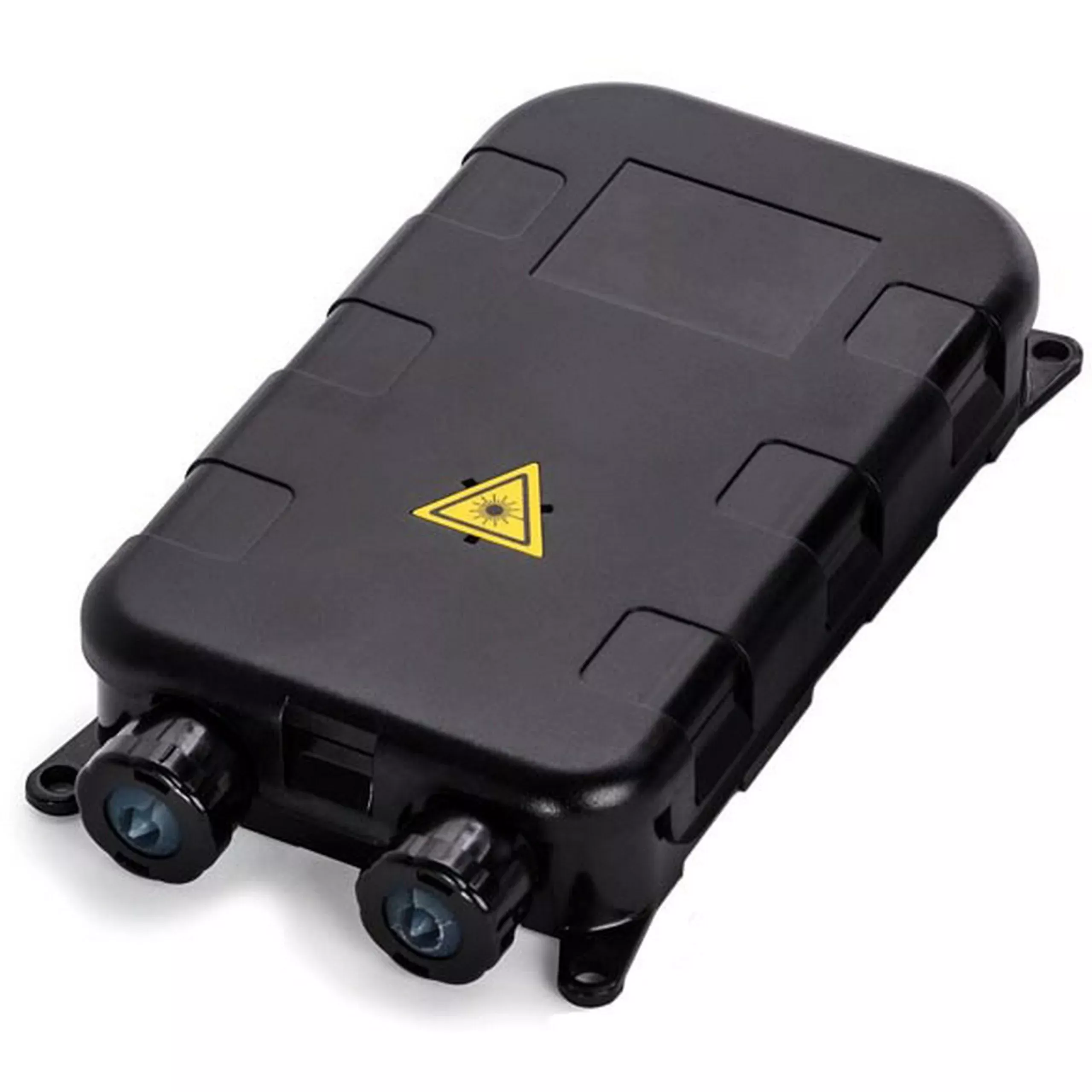

HellermannTyton CCP-SAP Connection Point with SC-APC Simplex Adapter, Black
TheHellermannTyton CCP-SAP is a Customer Connection Point (CCP) manufactured fromUL 94 V-0 and UV stable black polycarbonate and has a fully detachable snap-onlid. The closure has two separate cable access points, which are sealed with asilicon cable entry kit (cable diameter range 4.6 mm – 5.6 mm) to maintain theIP68 rating. A GORE-TEX breather membrane is fitted to the lid to preventcondensation forming in the base of the closure. The unit can be supplied withone SC Simplex or LC Duplex and matching pigtails and provides splicemanagement for two heat shrink splices. Internal fiber management featuresensure that a 30 mm minimum bend radius is maintained within the closure andprovides fiber storage capacity for any excess fiber.
Key Features
- Fully watersealed, achieving an IP-68 (NEMA 6P) rating, for use in wall or handholeinstallations
- Separateinbound/outbound access points ensure cable sealing and segregation
- Singlesubscriber splice or patch to connect a home or outdoor device
TechnicalSpecifications
Max Cable Diameter
0.22″
Min Cable Diameter
0.18″
Connector Type
SC-APC
Dimensions (WxDxH)
3.5 x 1.1 x6.3″
Installed Adapters
1
Pigtals Installed
1
Splice Quantity
2
Color
Black
