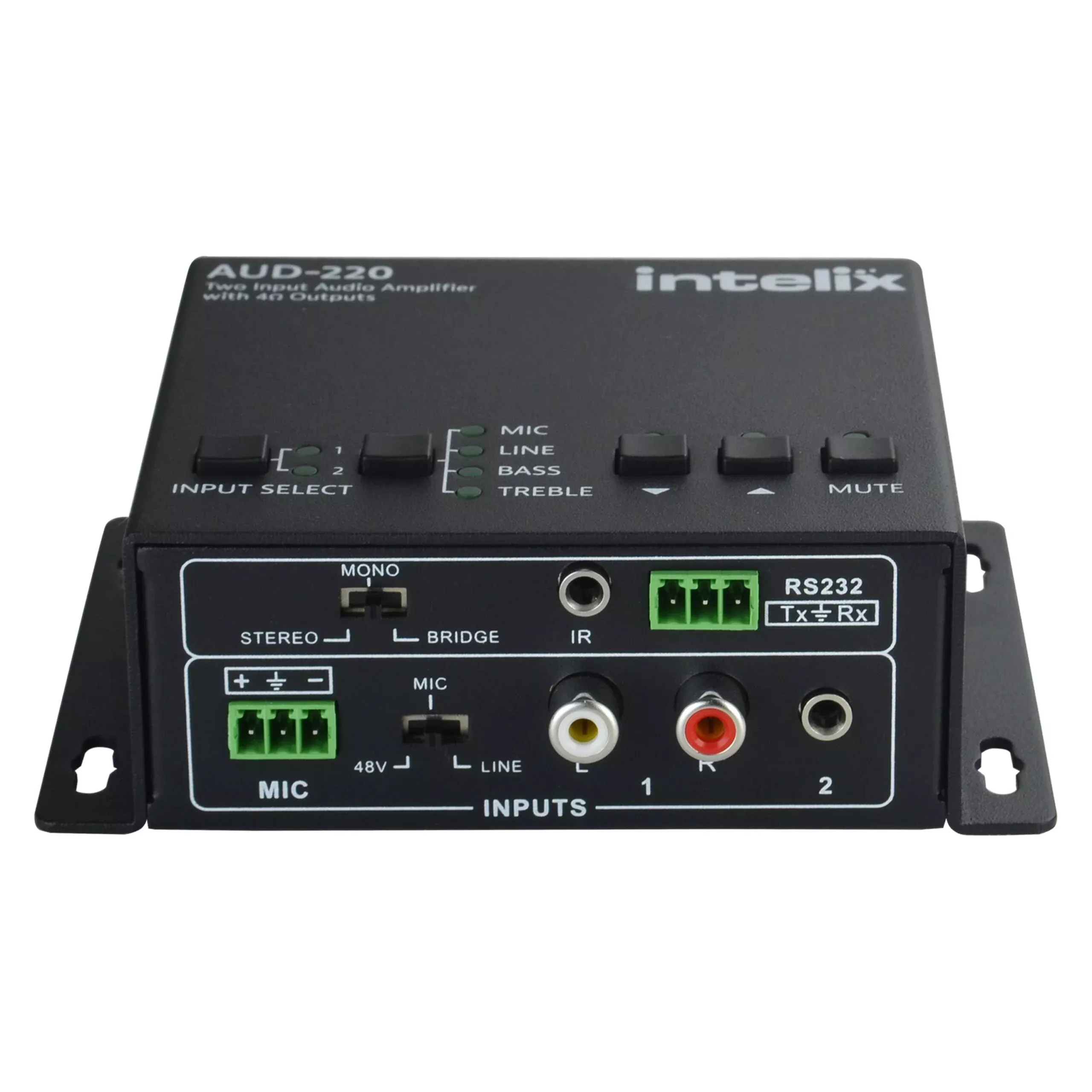

Intelix AUD-220 2 Input Audio Amplifier
The IntelixAUD-220 is a 2×20 watt Class D amplifier with 8 speaker output. The amplifierfeatures two analog audio inputs and a balanced microphone input with duckingfunctions. Additional features of the AUD-220 include input and microphonevolume control, bass and treble adjustments, microphone mixing with sourceaudio, and three modes of microphone input support (48 dB gain, 48 dB gain with48V phantom power, and line level). The AUD-220 has three methods of control:push button, RS232, and IR with the optional AUD-220-IR accessory kit.
Key Features
- Two analogaudio inputs
- Microphoneinput with ducking or mixing
- Bass, trebleadjustments
- Line inputand/or microphone muting
- Stereo, 2xmono, or bridged mono speaker output
- Line levelloop output to daisy chain
- Front paneland optional IR control
- Applications
Commercialaudio systems and solutions
Ideal forcorporate facilities, churches, schools
