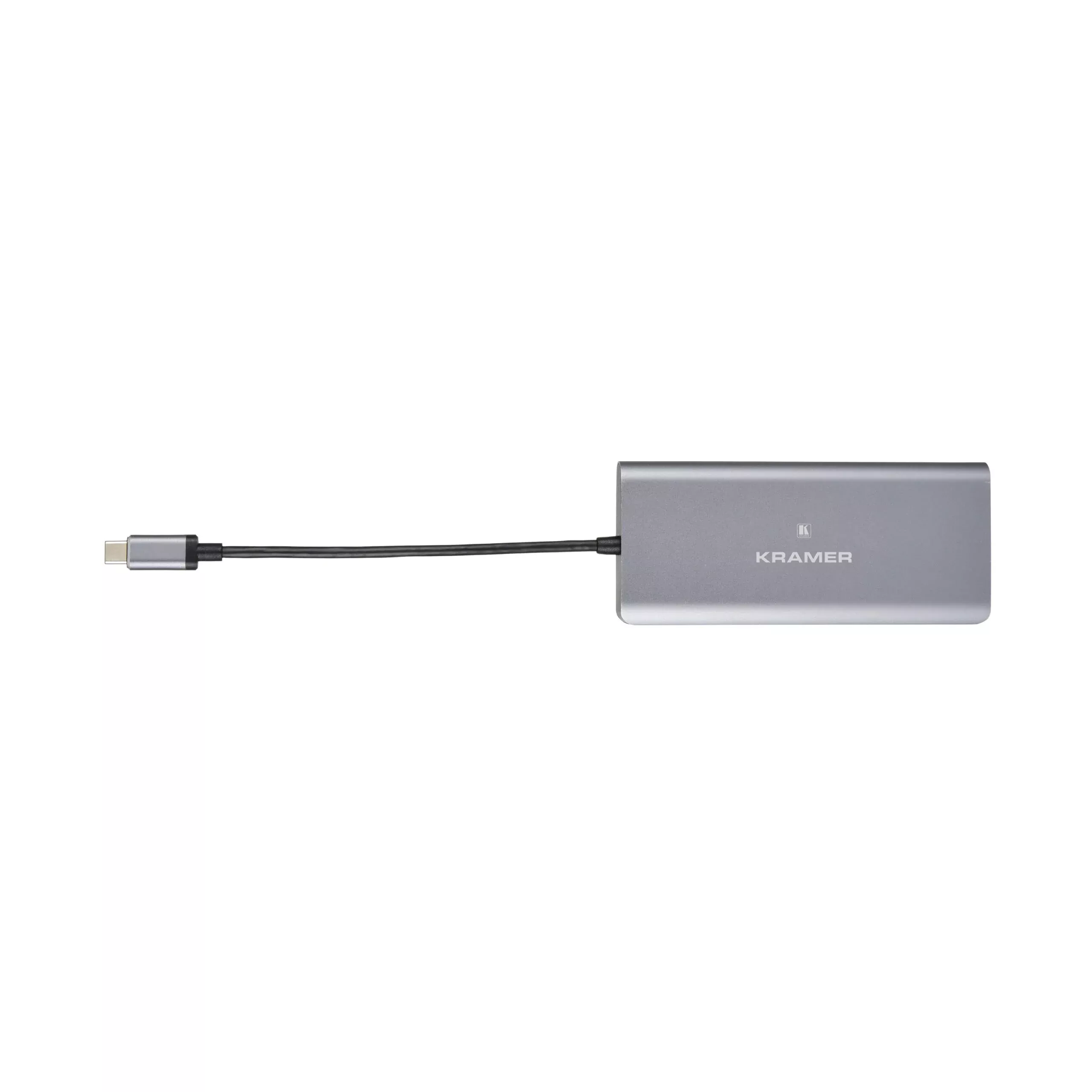

Kramer KDock-2 USB-C Hub Multiport Adapter
KDock-2 is aUSB-C hub multiport adapter specially designed to support mobile devices and isan ideal accessory for MacBook, laptops equipped with USB Type-C, smartphones,and tablets. KDock-2 enables you to connect your USB-C device to an HDMI videooutput, 2 USB 3.0 ports, an Ethernet port, SD card port and USB-C port for datatransmission and charging.
Note: Videooutput for smartphones is supported only for smartphones that supportDisplayPort Alt mode through USB-C.
TechnicalSpecifications
INPUTS
1 USB: On aUSB Type-C male connector
PORTS
2 USB 3.0:On female USB type-A connectors
1 Ethernet:On an RJ-45 connector
SD: On an SDcard port
1 USB: On afemale USB type-C connector for data and charging
VIDEO
MaxResolution (HDMI output): 3840x2160P@30Hz
Max DataRate: (HDMI output): 10.2Gbps (3.4Gbps per graphic channel)
ContentProtection (HDMI output): HDCP 1.4
EXTENDED ETHERNET
Max DataRate: 1000M (Gigabit)/100M/10M
Includes:Wake-on-LAN (WoL), single Mac address, PXE boot
GENERAL
USB DataTransmission Speed (USB 3.0 & USB-C): Up to 5.0Gbps
POWER
Delivery:100W
USBCharging: BC1.2 (5V 1.5A)
USB LimitedCurrent when Connected to Power via female USB-C port: 1.9A
USB LimitedCurrent when Not Connected to Power via female USB-C port: 1A
ENVIRONMENTAL CONDITIONS
OperatingTemperature: 0 to +70C (32 to 158F)
StorageTemperature: -10 to +55C (14 to 131F)
Humidity: 5%to 90%, RHL non-condensing
ENCLOSURE
Type: Aluminumwith built-in 16cm/6.3″ flexible USB-C cable
REGULATORYCOMPLIANCE (STANDARDS COMPLIANCE)
Safety: CE
Environmental:RoHs, FCC
PRODUCT DIMENSIONS
11.65cm x6.68cm x 1.60cm (4.59″ x 2.63″ x 0.63″ ) W, D, H
PRODUCT WEIGHT
0.1kg(0.2lbs) approx.
SHIPPING DIMENSIONS
15.60cm x10.20cm x 3.50cm (6.14″ x 4.02″ x 1.38″ ) W, D, H
SHIPPING WEIGHT
0.1kg(0.3lbs) approx.
