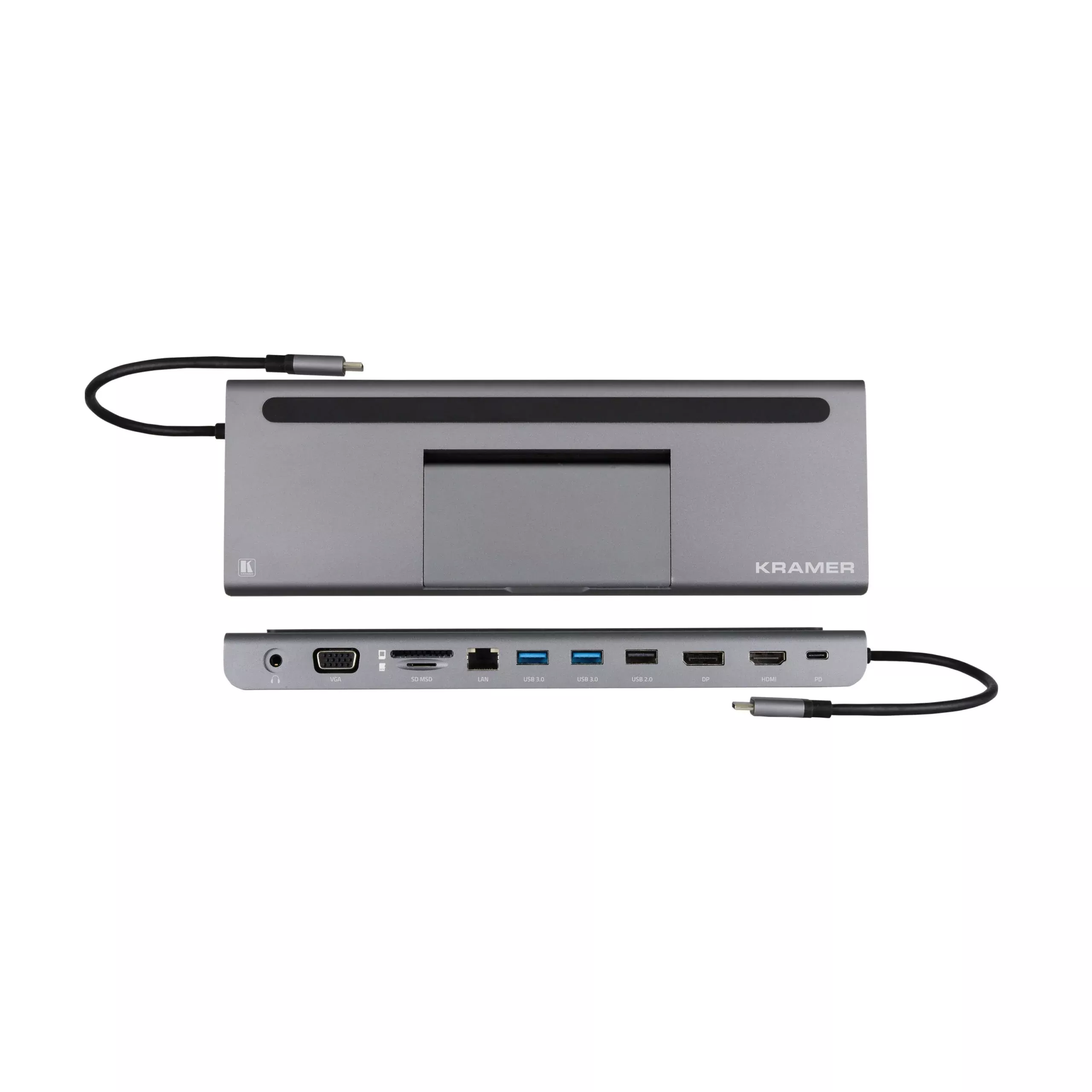

Kramer KDock-4 USB-C Hub Multiport Adapter
KDock-4 is aUSB-C hub multiport adapter specially designed to support mobile devices and isan ideal accessory for MacBook, laptops equipped with USB Type-C, smartphones,and tablets. KDock-4 enables you to connect your USB-C device to HDMI,DisplayPort, and VGA video outputs, 2 USB 3.0 ports, 1 USB 2.0 ports, anEthernet port, SD and micoSD card port and USB-C charging pass-through.
Note: Videooutput for smartphones is supported only for smartphones that supportDisplayPort Alt mode through USB-C.
TechnicalSpecifications
INPUTS
1 USB: On aUSB Type-C male connector
OUTPUTS
1 HDMI: On afemale HDMI connector
1DisplayPort: On a female DisplayPort connector
1 VGA: On afemale 15-pin HD connector
PORTS
2 USB 3.0:On female USB type-A connectors
1 USB 2.0:On female USB type-A connectors
1 Ethernet:On an RJ-45 connector
SD: On an SDcard port
1 UnbalancedStereo: On a 3.5mm mini jack
SD: On amicroSD port
1 USB: On afemale USB type-C connector for charging
VIDEO
MaxResolution (HDMI/DP): 3840x2160P@30Hz (with one display connected)
MaxResolution (HDMI/DP): 1920x1080P@60Hz (with two displays connected)
Max Resolution(HDMI/DP): 1920x1080P@60Hz (with three displays connected)
MaxResolution (VGA): 1920x1080P@60Hz (with one or two displays connected)
MaxResolution (VGA): 1280x720P@60Hz (with three displays connected)
Max DataRate (HDMI/DP output): 10.2Gbps (3.4Gbps per graphic channel)
MultipleVideo Output Support: Via MST (Multi-Stream Transport) technology
ContentProtection (HDMI output): HDCP 1.4
EXTENDED ETHERNET
Max DataRate: 1000M (Gigabit)/100M/10M
Includes:Wake-on-LAN (WoL), single Mac address, PXE boot
GENERAL
USB 3.0 DataTransmission Speed: Up to 5.0Gbps
POWER
Delivery:100W
USBCharging: BC1.2 (5V 1.5A)
USB LimitedCurrent when Connected to Power via female USB-C port: 1.9A
USB LimitedCurrent when Not Connected to Power via female USB-C port: 1A
ENVIRONMENTAL CONDITIONS
OperatingTemperature: 0 to +70C (32 to 158F)
StorageTemperature: -10 to +55C (14 to 131F)
Humidity: 5%to 90%, RHL non-condensing
ENCLOSURE
Type:Aluminum with built-in 20cm/7.87″ flexible USB-C cable
REGULATORY COMPLIANCE (STANDARDSCOMPLIANCE)
Safety: CE
Environmental:RoHs, FCC
PRODUCT DIMENSIONS
26.00cm x9.00cm x 2.50cm (10.24″ x 3.54″ x 0.98″ ) W, D, H
PRODUCT WEIGHT
0.4kg(0.8lbs) approx.
SHIPPING DIMENSIONS
31.80cm x13.00cm x 3.10cm (12.52″ x 5.12″ x 1.22″ ) W, D, H
SHIPPING WEIGHT
0.5kg(1.0lbs) approx.
