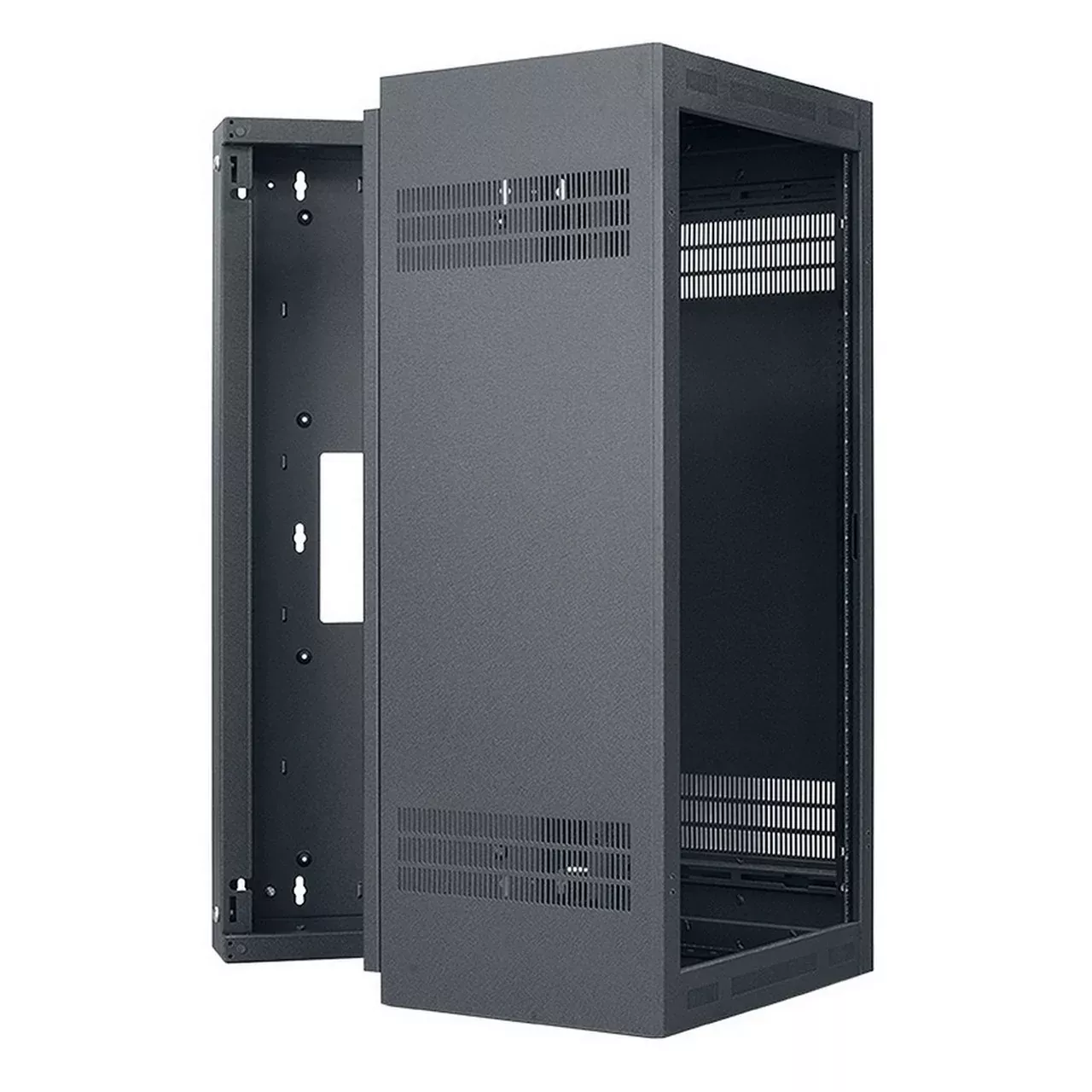

Lowell LWR-2419 24U Wall Rack
Heavy duty sectional wall rack features a front section that swings open to access wires and equipment.
Key Features
- Backbox: 5.80 in. deep with keyhole mounting slots on 16 in. centers, center opening to mount over electrical pull boxes, ground stud, embossed dimples on back plane for installation of board-mounted accessories, removable knockout panels on top/bottom, and two keyed side locks.
- Front Mounting Section: Fully gusseted corners, triple formed wrap design mounts to backbox from inside with two heavy duty spring-loaded L-pins (self seating, positive locking).
- Welded sides with vents
- Beveled front corners
- Knockouts for wireless antennas
- One pair adjustable mounting rails tapped 10-32, printed RU scale
- Integral top/bottom rails on E.I.A. spacing for mounting or lacing
- Black wrinkle powder epoxy finish
- Load capacity 300 lbs.
- Pilot Point screws with captive washers
Technical Specifications
Rack Space
24U
Rack Height
48.125 in.
Rack Width
23.06 in.
Rack Depth
19.05 in.
Useable Depth
16.00 in.
