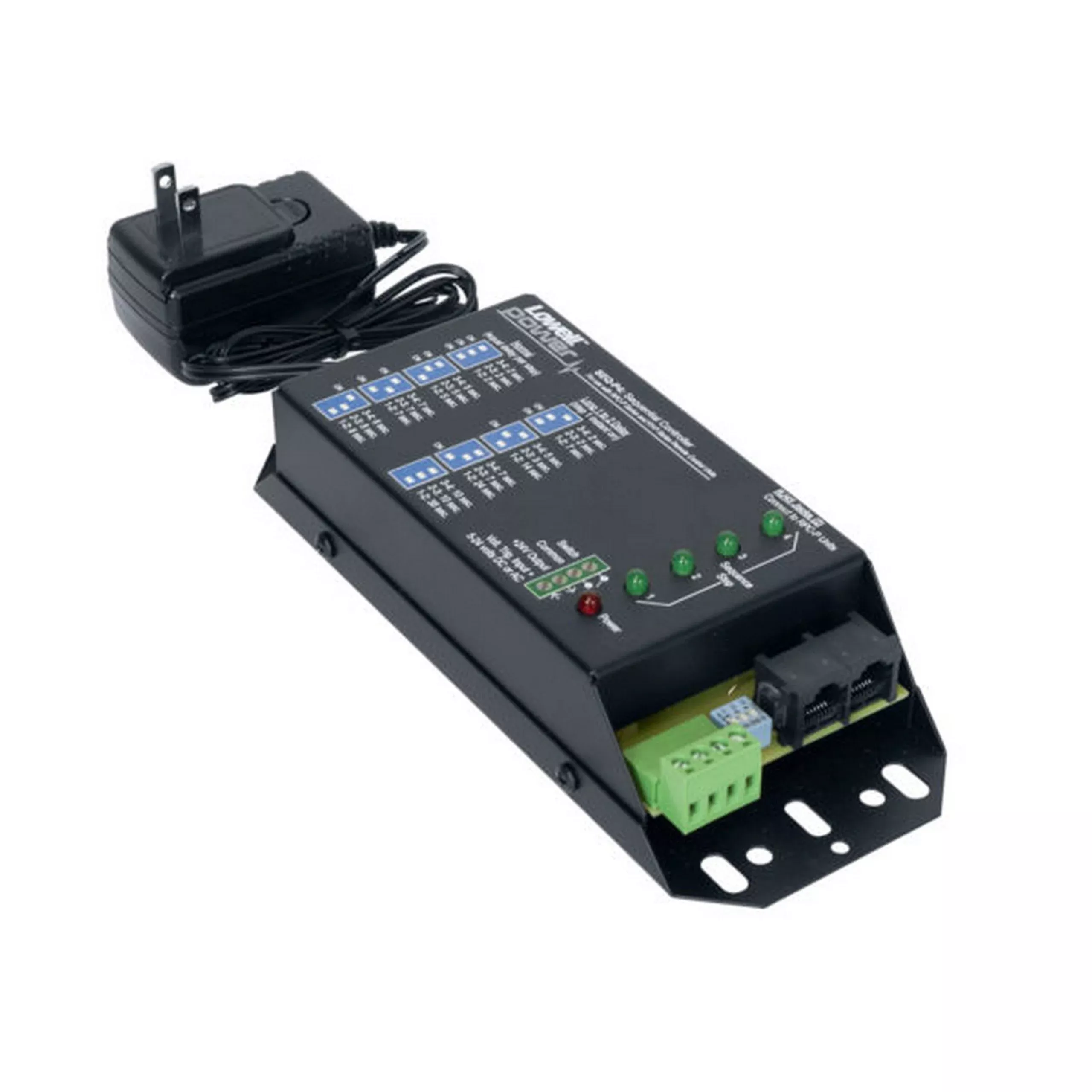

Lowell SEQ-P4 4-Step Standalone Pass-Through Power Sequencer
Low voltage,4-step power sequencer works with an external trigger and remote power controlor relay to provide time-delayed activation and deactivation of AC poweredequipment on site or at remote locations.
The SEQ-P4can control up to 80 RPC-P Series remote power controls and/or RY-P Seriesrelay modules. Alternatively, the SEQ-P4 can control a virtually unlimitednumber of RPC Series and/or RY Series (classic connection) devices by using theRY-P1 or RY-P2 relay modules as an interface. See application diagrams.
Technical Specifications
Quick”pass-through” connections with RJ45 jacks.
Because thestep assignment is actually selected on the connected devices (RPC-P Seriesremote power controls or RY-P Series relays), the startup sequence can bequickly changed without the need to re-wire.
Four delayedclosure circuits activate in sequential order (1, 2, 3, 4) and deactivate inreverse order (4, 3, 2,1). Delay between steps is easily adjusted with DIPswitches. Choose equal delays or varied delays with extended delay at startup.
Sequencingis initiated via an external trigger (SPST switch or DSP voltage connection).Order separately.
7″Lchassis
LED statusindicators
UL Listedpower supply with input 100-240VAC, output 24VDC, 500mA, 6 ft. cord and severalplug adaptors.
