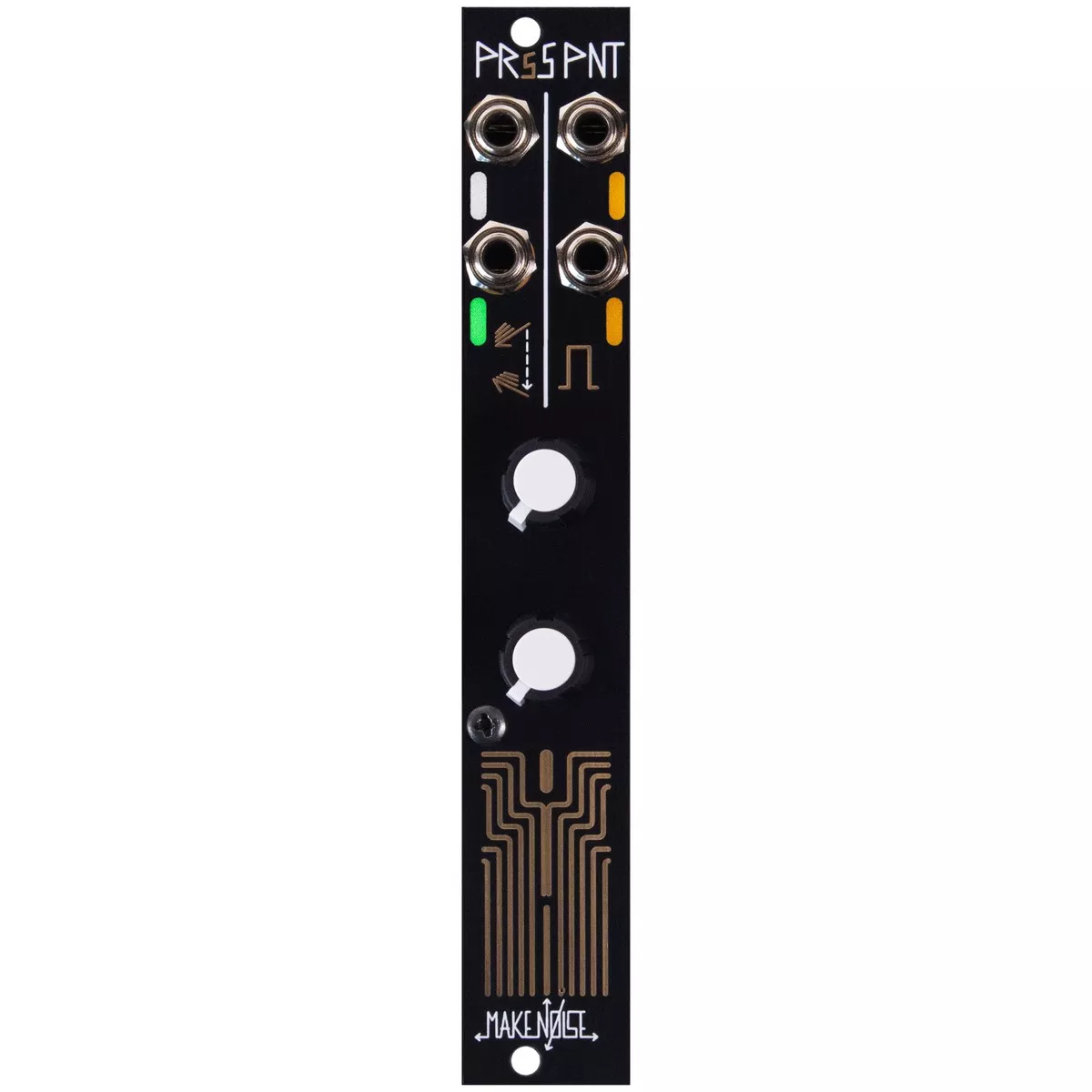

The Press Point music synthesizer module is a controller in which several signals are generated by touching the printed copper wire at the bottom of the instrument. Touching PrssPnt, you become part of the circuit, generating a total of four simultaneous signals (two CV, two Gate).
The basic function of PrssPnt will be familiar to anyone who has used Pressure Points or 0-CTRL. It could be seen as a single souped-up channel of one of these devices. Since it is a single channel, the tuned voltage outputs are not relevant, and instead are replaced with more playable sensitivity controls and alternate pressure and gate outputs.
- Momentary Gate output remains high as long as it is being pressed
- Toggled Gate output goes high and low with each successive press of the plate: press it to make it go high, press it again to make it go low
- Pressure output generates a positive control signal proportional to the amount of Pressure applied, further affected by the Sensitivity Panel Control
- Smooth Touch Function mimics the useful patch of sending a Pressure Output through a carefully tuned slew limiter for extended function generation
- Turning up the Slew amount will allow for larger than life functions with very long decay to be generated by hand.
- All four outputs available simultaneously
Specifications:
- 4hp
- 14mA @+12V
- 0mA @-12V
- 30mm depth (incl. power cable)
