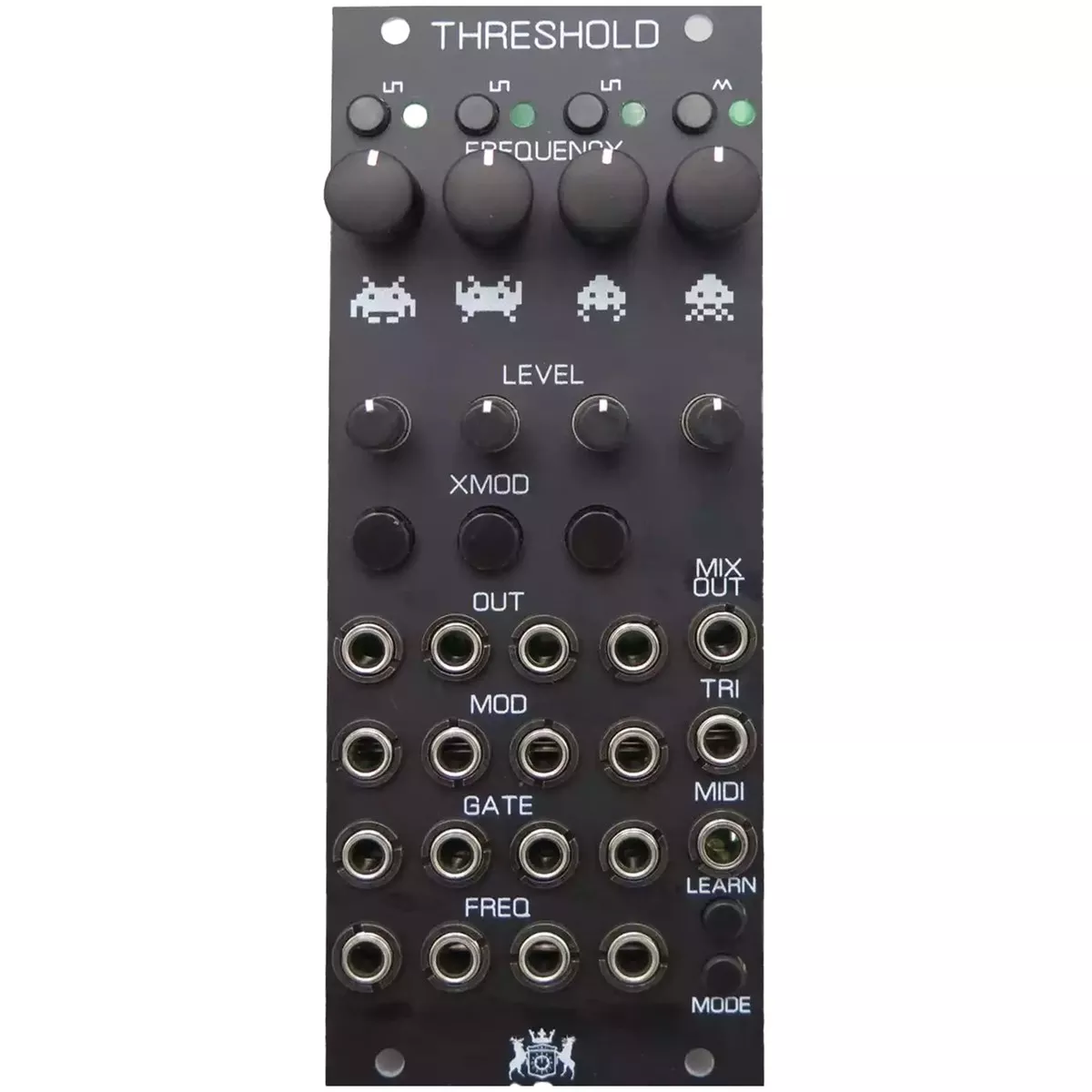

10HP Edges Clone with integrated midi interface and PSImidi which allows any TRS midi cable to be used.
MIDI Functionality.
MIDI Learn: Press this button and send a midi note. The device will use that channel as the base channel
MIDI Mode: This button cycles between two operational modes.
1. 4 single voices trigger on 4 midi channels starting on the base MIDI channel (i.e. base channel is channel 2 so the voices are mapped over channels 2, 3, 4, 5)
2. Simple Poly mode where each voice plays on a different note on the same midi channel
Note about MIDI and Gating: The gate is normalled OPEN by the Gate 1 input. This is by design but will also force the gate open when the device is triggered by midi. Placing a dummy jack will break the open normal the gate will trigger via MIDI normally
Please Note:
This device uses PSIpower and hasNO POLAIRTYon the power header, it can be installedEITHER WAY.
