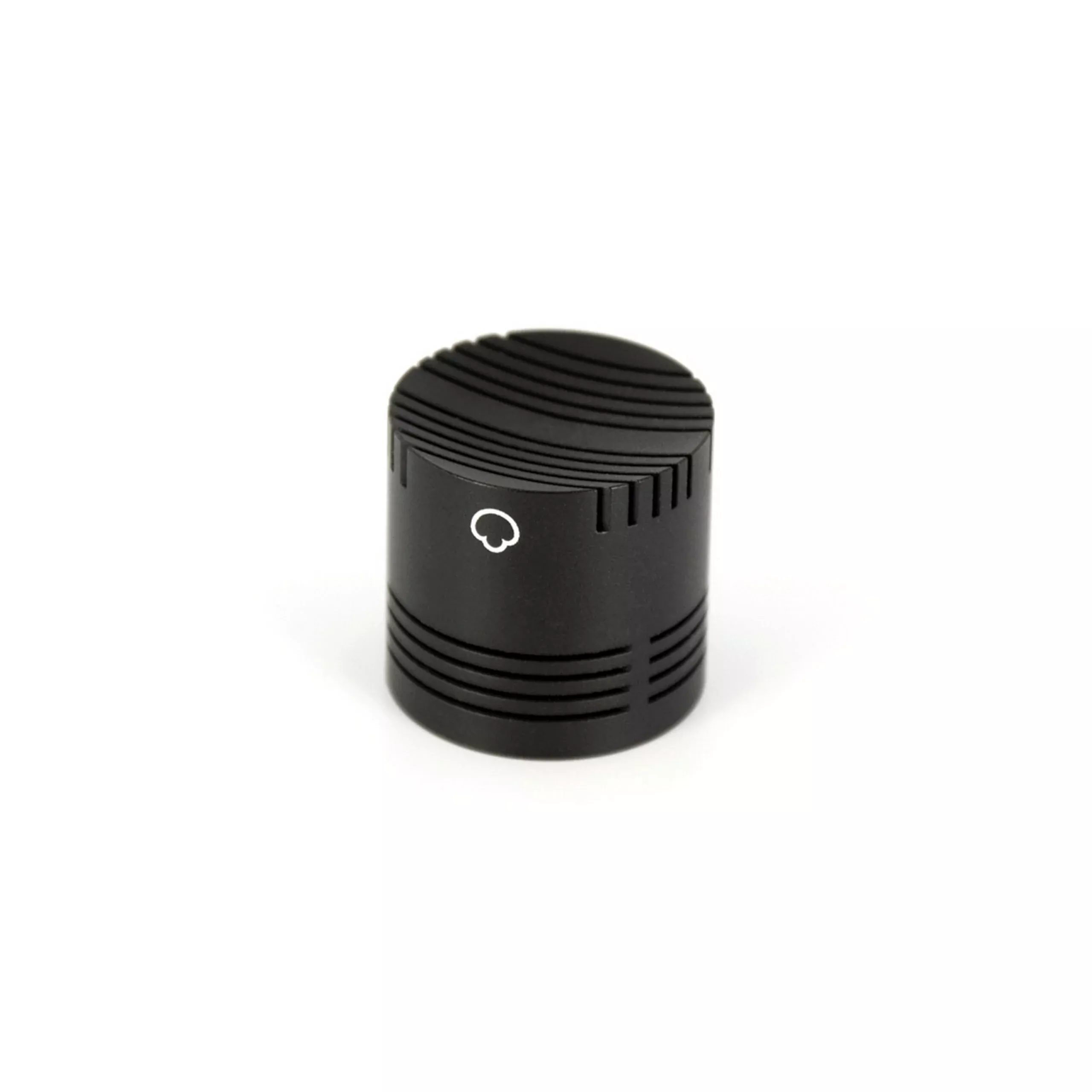

Milab VM-44 Replacement Supercardioid Capsule for VM-44
The VM-44Supercardioid is an interchangeable capsule for the VM-44 system and has beendesigned to provide the same natural sound that has made the VM-44 the bestselling Milab product ever. The VM-44 is also available with a cardioid(standard) and an omni capsule.
TechnicalSpecifications
Type
Condenser
Article number
1141
Frequency response
20 to 20,000Hz
Polar pattern
Supercardioid
Pre-attenuation pad
-12 dB(switchable)
Max SPL (1 % THD at 1 kHz)
128 dB
Max SPL with 12 dB pad
140 dB
Sensitivity at 1 kHz
15 mV/Pa (1 dB)
A-weighted noise level (IEC 179-A)
21 dBA
Power supply
12-52 VPhantom (DIN/IEC)
Output impedance
<200
Minimum load impedance
1 k
Diameter
21 mm
