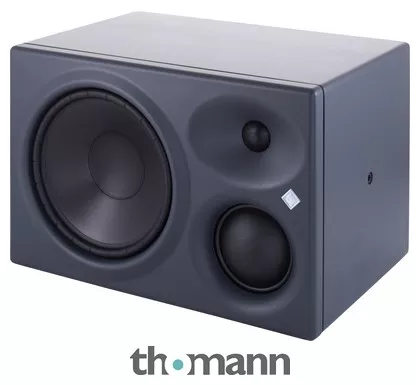

Active Studio Monitor
- 3 Way System
- Maximum sound neutrality and transient response
- Uniform directivity
- Precise bass reproduction down to 34 Hz
- LF input with extremely low distortion electronically-balanced input stage
- Magnetically shielded
- Variable adaptation within three frequency ranges
Technical data:
- Peak power: 210 W (Woofer), 90 W (Midrange), 90 W (Tweeter)
- Continuous power: 150 W (Woofer), 70 W (Midrange), 70 W (Tweeter)
- Free-field frequency response: 34 Hz – 21 kHz, +/- 3 dB
- Total harmonic distortion (THD)
- Sound pressure level: 120.2 dB SPL at 1 meter in half space at 3% THD
- Membrane dimensions: Woofer 8 1/4″, Midrange: 3″, Tweeter: 1″
- Controller-Technology: Analog, active
- Crossover: Crossover frequency 650 Hz/2 kHz
- 24 dB/Oct
- Equalization: Bass: 0..-7.5 dB, Midrange: 0..-4.5 dB, Treble: 1..-2 dB, each adjustable in 4 steps
- Audio input (analog): XLR> 10K ohms electronically balanced
- Dimensions: 253 x 383 x 292 mm
- Weight: 13.0 kg
- Mounting option: 2 x M8 side
- Colour (standard): anthracite (RAL 7021)
- 1 Piece: Right speaker (Optional: Left speaker Article Nr: 304990)
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceApril 2013
- Item number304991
- Sales Unit1 piece(s)
- Woofer Size Class 8″
- Number of Ways 3
- Speaker Housing – Woofer System Closed
- Coaxial System No
- Power per Unit 300 W
- Frequency range 34 Hz – 21000 Hz
- Analogue XLR Input Yes
- Analogue Input(Jack) No
- Analogue Input (Mini Jack) No
- Analogue Input (RCA) No
- Digital input No
- Manual Sound Adjustment Yes
- DSP Room Correction none
- Construction Typ – Bass SystemClosed
- Power per Piece290 W
- Magnetic ShieldingYes
- Frequency Range from34 Hz
- Frequency Range to21000 Hz
- Weight13 kg
- Analog XLR InputYes
- Manual EQYes
- Woofer8″
- Midrange Speaker3″
- Mid-Range Driver3“
- Tweeter1″
- Height253 mm
- Width383 mm
- Depth292 mm
