Primacoustic Corner Impaler Corner Mount Impaler, Push-Down, 8-Pieces
Corners arethe acoustician’s best friend. Walls and ceiling act as wave guides that driveenergy into the corner where maximum pressure is created. Primacoustic CornerImpaler is designed to work with 24” x 48” (60.96cm x 121.92cm) BroadwayBroadband absorbers to provide effective absorption in this critical zone bycombining this high-density glass-wool panel with a deep 17” (43.18cm) cavityto deliver effective bass control.

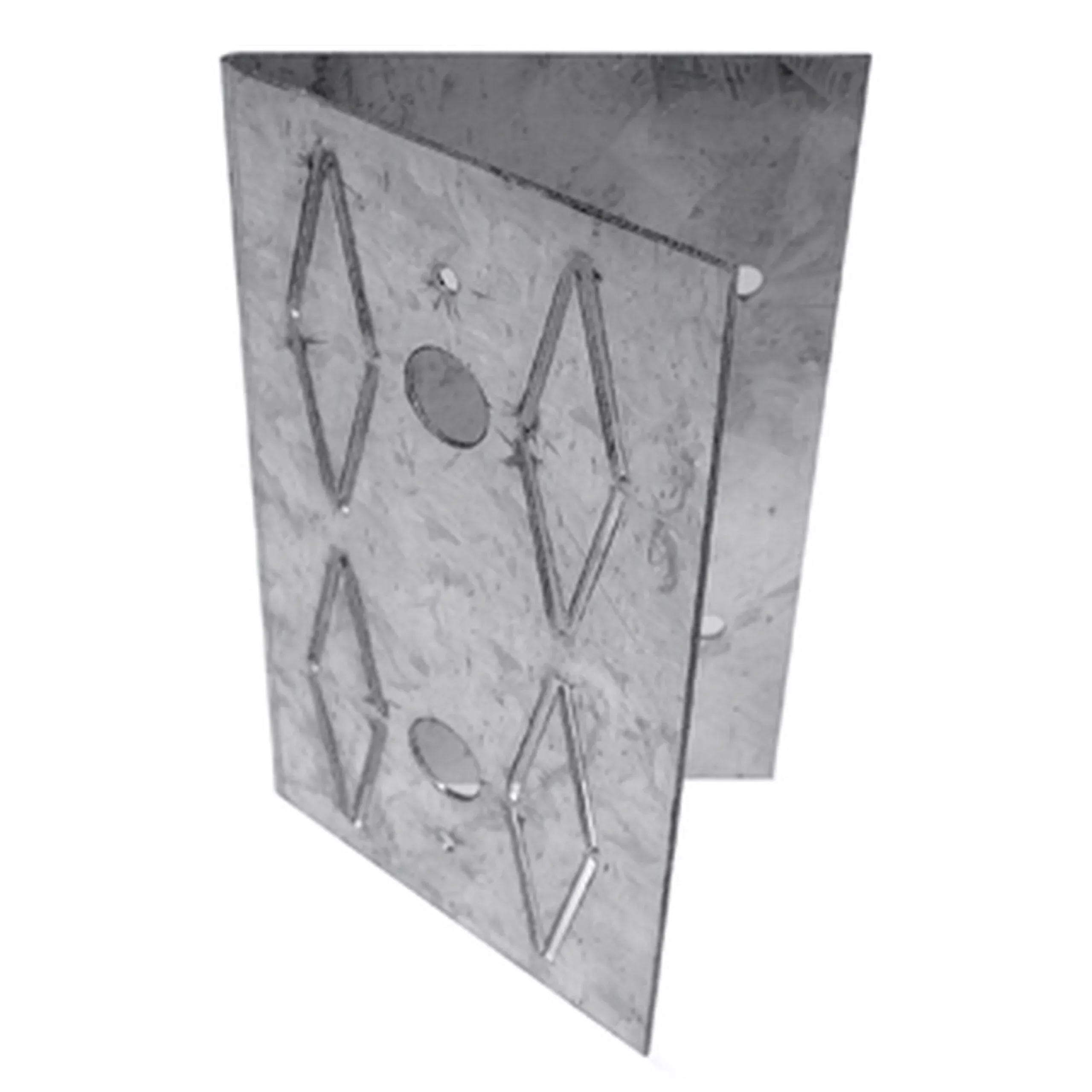

The CornerImpaler features a unique wedge shaped design with four pivoting darts. Thisallows a single device to be used on either the left or right hand side whencorner mounting the Broadway panel. To make installation as easy as possible,extra cutouts allow a regular screwdriver direct access to the mounting points.
As the panelbasically floats on top of the wall surface, we recommend adding a dab ofLiquid Nails in between the impaler and the panel. This will ensure the panelis locked in place after installation.
Shipped 8 toa box, the Corner Impaler is made from a heavy galvanized steel plate and iseasily installed in plaster board, sheetrock or masonry using the triple-actionCobra Anchors.
Key Features
- Turns anycorner into an effective bass trap
- Easy toinstall design provides screwdriver access
- Two-waypivoting anchor for left or right hand installation
TechnicalSpecifications
Material
20 gaugegalvanized steel
Dimensions
3” x 5”(7.62cm x 12.70cm); 45 angle for 90 corners
Attachment Points
4 (Use anappropriate fastener for wall surface)
Max Load Limit
8lbs(3.63kg) dependant on wall fastener
Number per Box
8 per box
