Primacoustic Offset Impaler, 8-Pieces
ThePrimacoustic Offset Impaler offers an effective method to increase bassabsorption by introducing an air cavity behind a Broadway panel. This deliversas much as one extra octave of low frequency attenuation without any additionalcost.

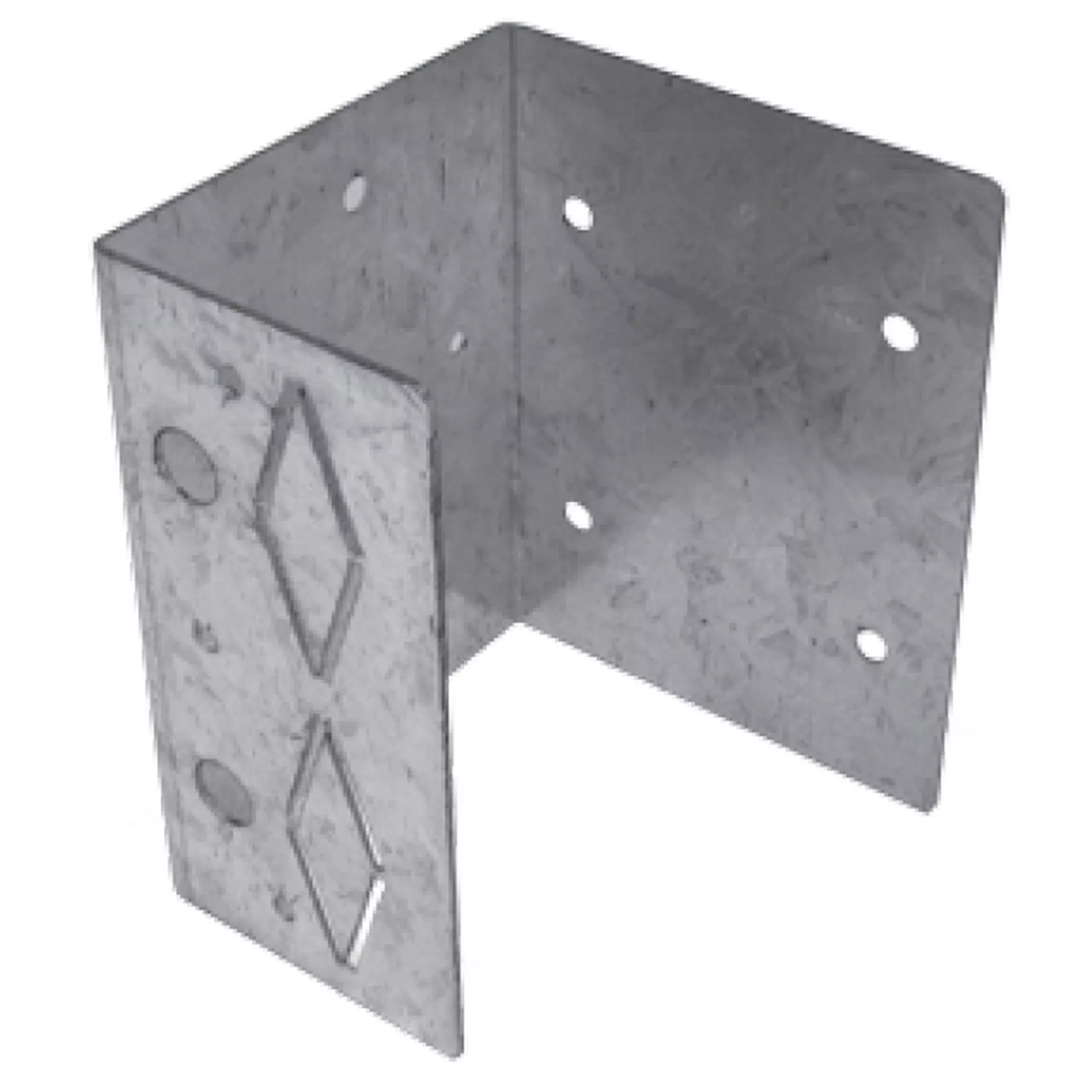

The U-shapeddesign is equipped with pivoting darts for left-hand or right-handinstallations, thus allowing the same part to be used on either side of thepanel. Front access holes provide easy access for a screwdriver or power drillto quicken installation. Becausethe Offset impaler employs a 3.5” (8.89cm)stand-off, it matches the size of a typical two-by-four making It’simple tointegrate using standard building supplies during construction. This makesflush mounting easier for installations such as studios and home theaters whereadded bass absorption is usually desired.
As the panelbasically floats on top of the wall surface, we recommend adding a dab ofadhesive in between the Impaler and the panel. This will ensure the panel islocked in place after installation.
Shipped 8 toa box, the Offset Impaler is made from a heavy galvanized steel plate and iseasily installed in plaster board, sheetrock or masonry using the triple-actionCobra Anchors.
Key Features
- Adds airspace behind panel to increase bass absorption
- Easy toinstall design provides screwdriver access
- Two-waypivoting anchor for left or right hand installation
TechnicalSpecifications
Material
20 gaugegalvanized steel
Dimensions
3” x 5”(7.62cm x 12.70cm); Offset 3.5” ( 8.89cm) from wall surface
Attachment Points
4 (Use anappropriate fastener for wall surface)
Max Load Limit
8lbs(3.63kg) dependant on wall fastener
Number per Box
8 per box
