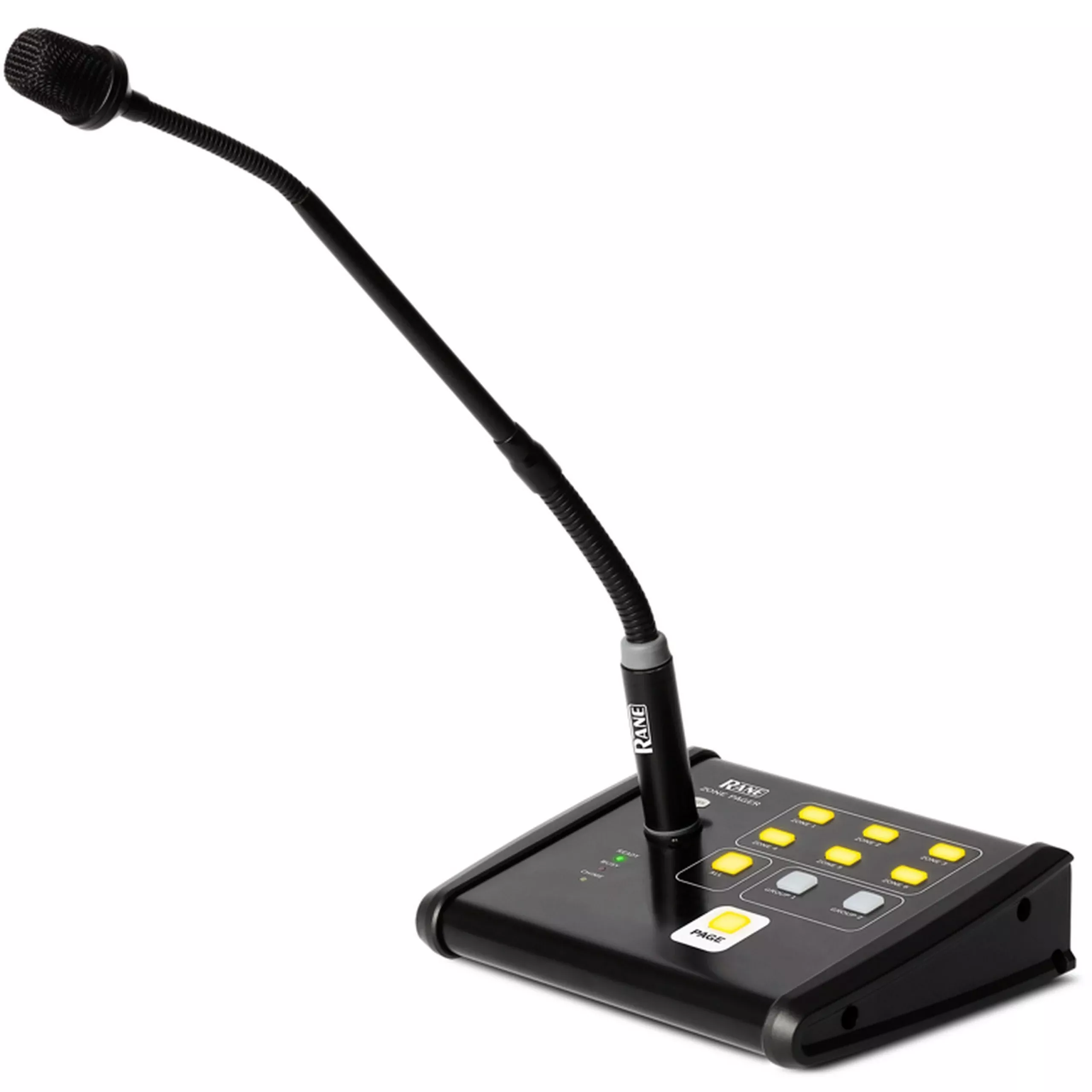

Rane Zone Pager Tabletop Paging Station
The RANE Zone Pager is a paging station that allows users topage up to (6) zones separately, to (2) groups of zones, and to all zones atthe same time. Lights will indicate if the zone is READY or BUSY (already beingpaged by a higher-priority paging station) and when the chime has completed (ifenabled). Zone Pager accepts an included dynamic gooseneck microphone via a3-pin XLR connector. The microphone input supplies 24V phantom power forcondenser microphones. The Zone Pager is connected to a RANE DSP with a Cat5e(or better) cable on a local run up to 500ft (150m) away from the equipmentrack.
Key Features
- Six-zone smart paging station
- Two programmable group buttons
- Gooseneck dynamic microphone included
- Powered by any Rane DSP commercial processor via RJ-45
- +24V phantom power and 13dB pad
Technical Specifications
Frequency Response
20Hz – 20kHz
Mic Input Impedance
1.1k
Max Input Level
Condenser mic maxinput
-1dBu
Dynamic mic max input
-13dBu
Current Draw
0.10 amps
Phantom Power
24VDC
Connectors
RAD port
RJ45 connector
Microphone
XLRF 3-pin
Gooseneck Microphone
Element
Dynamic
Polar Pattern
Super-cardioid
Frequency Response
100Hz – 15kHz
Sensitivity
-56dBv/pa (1.6mv/pa)
Max SPL
135dB (THD1% @ 1kHz)
Environmental
Operating temperature
32 – 104 F (0 – 40 C)
Dimensions (width xdepth x height)
7.9” x 2.2” x 6.4”
200 x 55 x 162mm
Weight
1.7 lbs (0.776kg)
