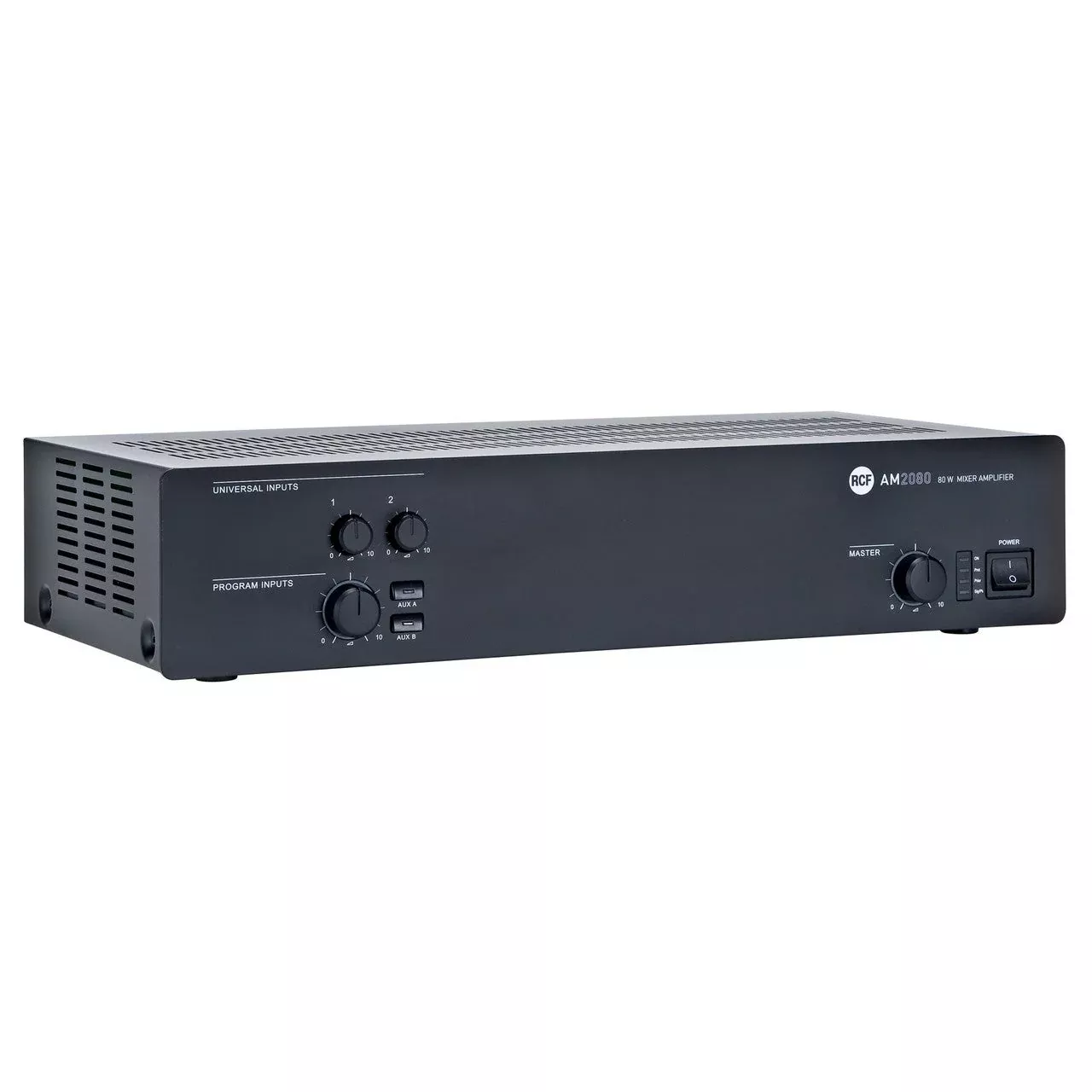

RCF AM2080 80W Digital Mixer Amplifier
AM 2080 is amixer-amplifiers with 2 mic-line audio inputs on removable connectors (thefirst input also has an XLR socket) and 2 aux inputs for music sources (e.g. CDplayers, tuners, etc.). The nominal power is a 80 W amplifier. The amplifieroutput is available either for low impedance loudspeakers or 100 – 70 Vconstant voltage line.
Key Features
- Full digitaltechnology Mixer Amplifier 80 W RMS
- 100 V – 70 Vand 4 Ohm outputs
- 2 universalinputs with phantom facility on screw terminal connections
- XLRconnector on input 1
- RJ45connectors on input 2 for connection to BM3001 microphone
- ConfigurablePriority settings, VOX facility on input 1
- Selectableaux inputs with two keys on the front panel for music source
- Aux inputswith volume and tone controls
- Music OnHold and PRE outputs
- DigitalChime and Siren built-in generator
TechnicalSpecifications
Amplifier specifications
DISTORTION (THD+N) @ 1 KHZ NOMINAL POWER
<0.3 %
FREQUENCY RESPONSE (-3DB)
50 Hz – 16kHz
NUMBER OF CHANNELS
1
POWER OUTPUT (@ 100 V)
80 W RMS
POWER OUTPUT PER CHANNEL (@ 4 OHM)
80 W RMS
SIGNAL/NOISE RATE (”A” WEIGHTED)
>80 dB
Controls
CHIME TONE
Yes
CONFIGURATION
DIP switch,Front panel
MUSIC ON HOLD
Yes
PRIORITY
Yes
Processing
HIGH-PASS FILTER
150 Hz
TONE CONTROLS
Yes
Input section
BALANCED
5
LINE CONNECTORS
RCA
LINE INPUTS
2
MIC+LINE CONNECTORS
Euroblock,XLR
MIC+LINE INPUTS
2
MIC+LINE PHANTOM
30 V DC
VOX (MIC+LINE)
Yes
MONO
4
PAGING COMMAND
Contact
PAGING CONNECTORS
RJ45
PAGING INPUTS
1
STEREO
2
TOTAL NUMBER OF INPUTS
5
UNBALANCED
1
Output section
SIGNAL OUTPUT CONNECTORS
RCA
POWER OUTPUT CONNECTORS
Euroblock
SIGNAL OUTPUT NUMBER
2
Physical specifications
CABINET/CASE MATERIAL
Metal
COLOR
Black
RACK MOUNTING
19″, 2U
Power requirement
OPERATING VOLTAGE
220-240/115V~ 50/60Hz
POWER CONSUMPTION
160 W
VOLTAGE SELECTION
Internal
Protections
COOLING
Convection
DC DELAY
Yes
FUSES
Yes
SHORT CIRCUIT
Yes
THERMAL
Yes
Size
DEPTH
230 mm /9.06 inches
HEIGHT
88 mm / 3.46inches
WEIGHT
3.77 kg /8.31 lbs
WIDTH
442 mm /17.4 inches
Standard compliance
CE MARKING
Yes
