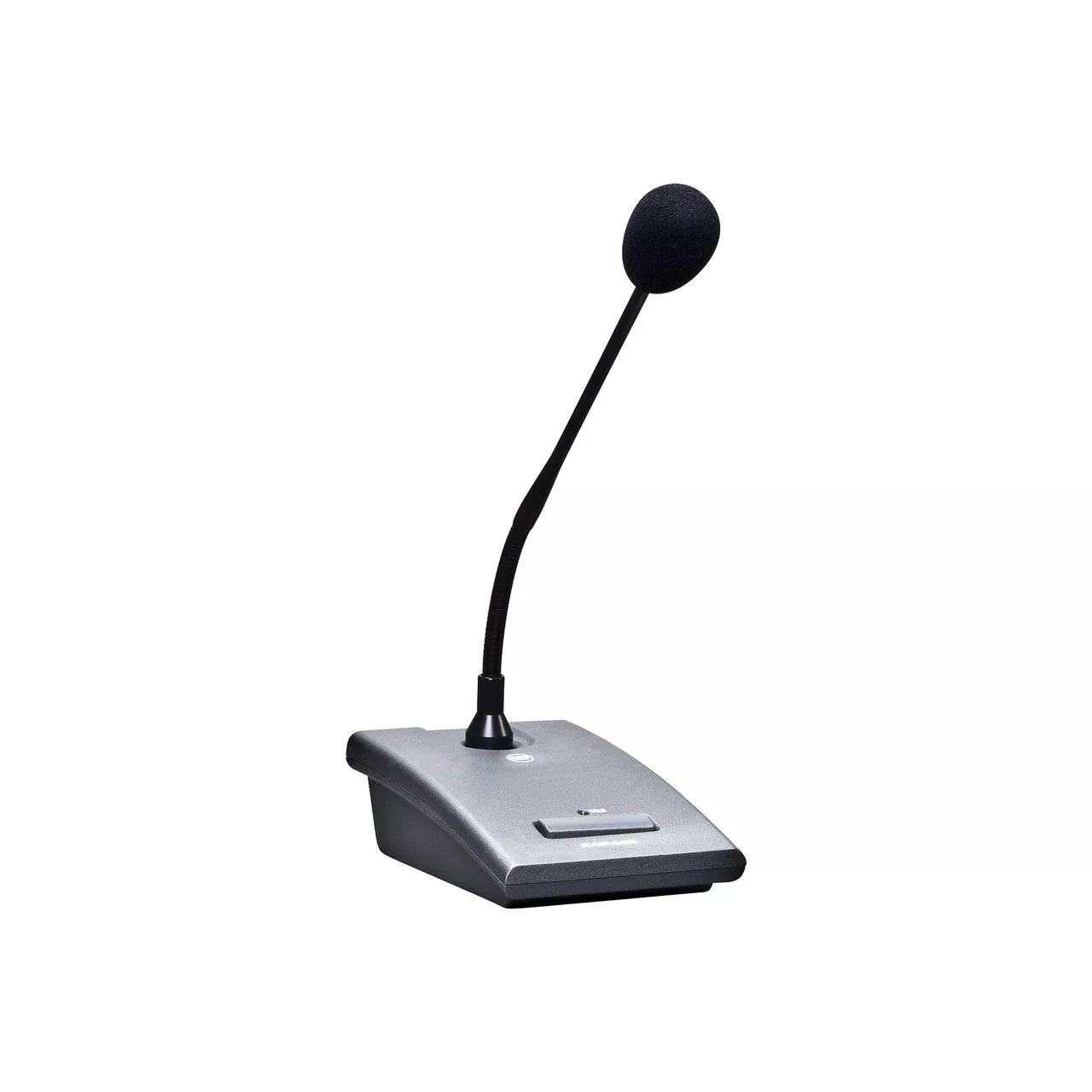

RCF BM3001 Gooseneck Paging Microphone
The BM 3001Desktop Paging microphone allows to send announces toward a single zone and itis the ideal complement for the ES 3160 and ES 3323 receiver amplifier. It canalso be used with other mixer-preamplifiers equipped Phantom Power (18 V – 48V).
Key Features
- Plastic bodywith 300 mm gooseneck
- PTT buttonwith LED
- Powersupplied by ‘Phantom’ (18 – 48 V dc)
- Ready fordirect connection to amplifiers ES 3080, ES 3160-II, ES 3323-II, AM 2160, AM2320, AM 2080, UP 2161, UP 2321, UP 2081.
- Chimeactivation on ES 3080, ES 3160-II, ES 3323-II, AM 2160, AM 2320, AM 2080
- Polyurethanefoam wind screen
- 5 mconnecting cable (with RJ 45 plugs) included
TechnicalSpecifications
Accessories
CABLE INCLUDED
Yes
CABLE LENGTH (M)
5
Connections
CONNECTORS
RJ45
Console specifications
CONSOLE TYPE
Paging
GENERAL CALL
Yes
LED INDICATORS
Yes
NUMBER OF ZONES
1
Functionalities
SMART PTT
Yes
Microphone specifications
DIRECTIVITY
Cardioid
FREQUENCY RESPONCE (-3DB)
50 Hz – 18kHz
MINIMUM LOAD IMPEDANCE (OHM)
470.00 ohm
NOMINAL OUTPUT VOLTAGE @3.3 KOHM (MV RMS)
100.00 mVRMS
PHANTOM POWER
18 V DC – 48V DC
PHANTOM POWER
Yes
TYPE
Desktoppaging microphone with electret capsule
Physical specifications
CABINET/CASE MATERIAL
Plastic
COLOR
Grey
Power requirement
POWER CONSUMPTION (W)
2.80 mA
Size
DEPTH
159 mm /6.26 inches
HEIGHT
48 mm / 1.89inches
WEIGHT
0.73 kg /1.61 lbs
WIDTH
100 mm /3.94 inches
Standard compliance
CE MARKING
Yes
