Diviser is an analog clock divider with one output per divison. It has odd & even division with 50% duty cycle.

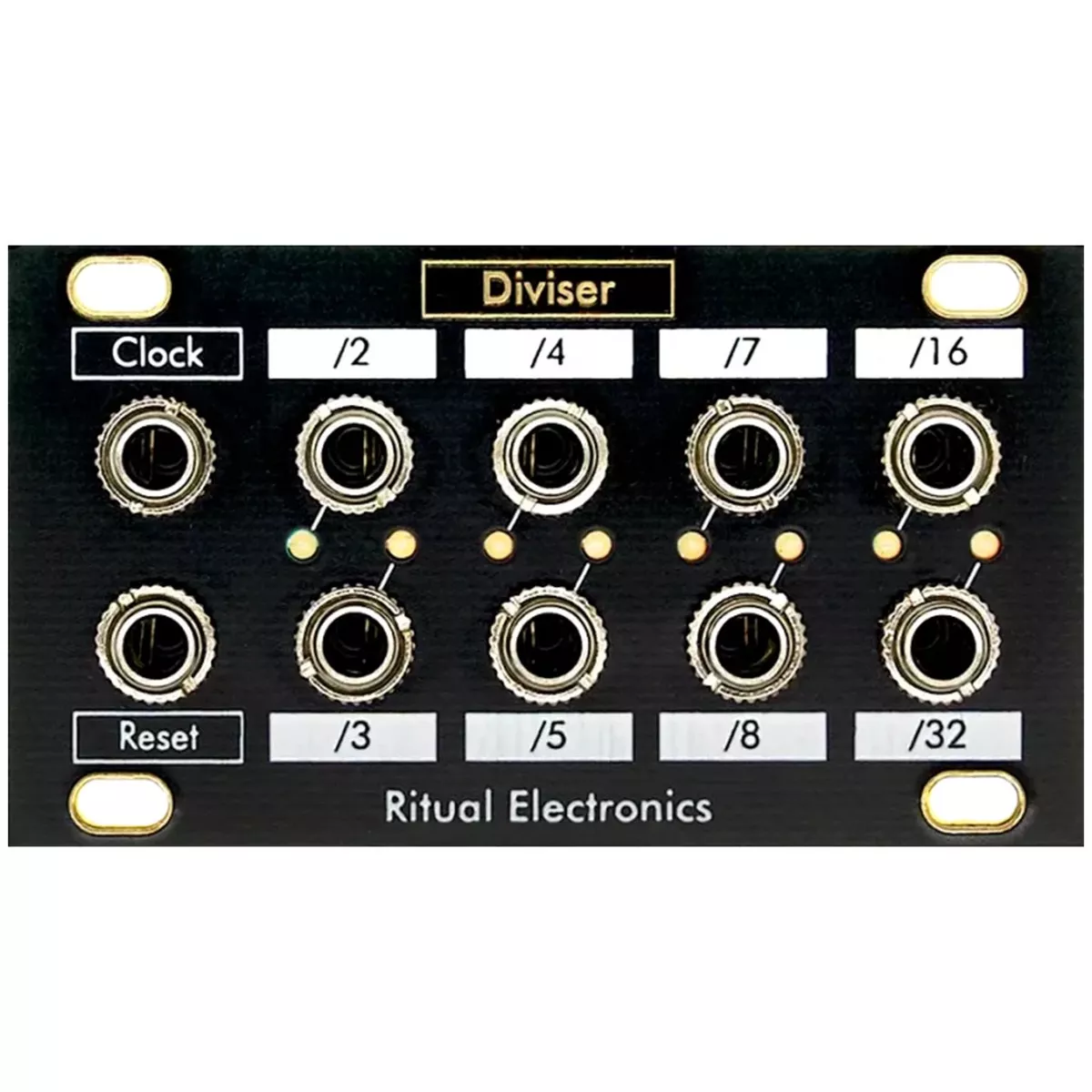

Diviser is a 1U clock divider with odd & even outputs. It divides by 2, 3, 4, 5, 7, 8, 16 & 32 simultaneously
Diviser is based on CMOS chips it can run at audio speed to create subharmonics from an oscillator. The reset input resets all the outputs to a high state. Comparators are built in both the Clock and Rest inputs with threshold set at 2.5V. It means you can use any type of signals in these inputs.
Technical characteristics
- Built in comparators on Clock & Reset inputs
- No microcontroller
- Even & Odd divisions (/2-3-4-5-7-8-16-32)
- All outputs high when reset
