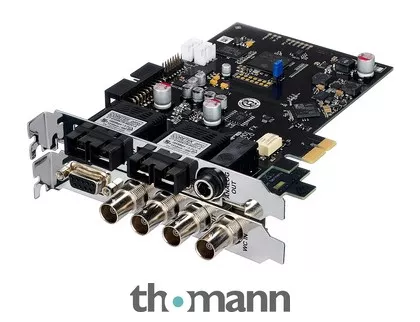

PCI Express Sound Card
- MADI: 194 input and 194 output channels
- Analogue output: 2 channels (6.3 mm stereo jack, monitoring or headphones)
- 4096-channel mono matrix router
- MADI optical coaxial converter functionality
- AES/EBU interface for direct integration of AD/DA devices
- Extremely low latencies
- Sample frequencies up to 192 kHz
- Including SteadyClock for maximum jitter suppression
- Includes DIGICheck analysis and metering tool (EBU R128 compatible)
- Includes TotalMix FX, the variable real-time mixer and signal router with 42-bit internal resolution and integrated on-board DSP effects – latency-free monitoring (EQ, dynamics, AutoSet and reverb/echo)
- 2x MADI I/O optical
- 1x MADI I/O coaxial
- 1x AES/EBU I/O
- 1x Stereo Analog Out
- 1x Wordclock I / O
- 1x MIDI I/O via 5-pin DIN
- 3x MIDI I/O via MADI
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceAugust 2012
- Item number280212
- Sales Unit1 piece(s)
- Converter 24 bit/192 kHz
- Microphone Inputs 0
- Phantom power No
- Number of instrument inputs 0
- Line Inputs 0
- Digital Inputs MADI
- MIDI interface Yes
- SYNC Yes
- Analogue Outputs 1
- Digital Outputs MADI
- Headphone jack Yes
- Zero latency monitoring Yes
