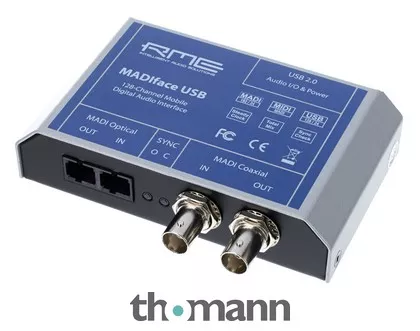

MADI / USB 2.0 Interface
- Mixing and routing: 128 channels at 48 kHz, 64 channels at 96 kHz, 32 channels at 192 kHz
- Recording and playback: 64 channels at 48 kHz, 32 channels at 96 kHz, 16 channels at 192 kHz
- MADI input and output: Optical and coaxial
- Steady Clock
- USB 2.0 connection for audio input and output as well as power supply (USB bus-powered)
- Sync Status LED
- TotalMix FX
- DIGICheck: Test, measurement and analysis software
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceSeptember 2013
- Item number317468
- Sales Unit1 piece(s)
- Recording / Playback Channels 64×64
- Number of Mic Inputs 0
- Number of Line Inputs 0
- Instrument Inputs 0
- Number of Line Outs 0
- Headphone Outs 0
- Phantom Power No
- Number of S/PDIF Connectors 0
- Number of ADAT Connectors 0
- Numer of AES/EBU Connectors 0
- Number of MADI Connectors 2
- Ethernet 0
- Other Connectors None
- MIDI interface No
- Word Clock No
- Max. Sampling Rate in kHz 192 kHz
- Max. Resolution Rate in Bits 24 bit
- USB Bus-Powered Yes
- Incl. power supply No
- USB Version 2.0
- Width 112 mm
- Depth 83 mm
- Height 27 mm
- Connection Format USB port Type B
- Included in deliveryUSB-A to USB-B Cable
- Zero latency monitoringYes
