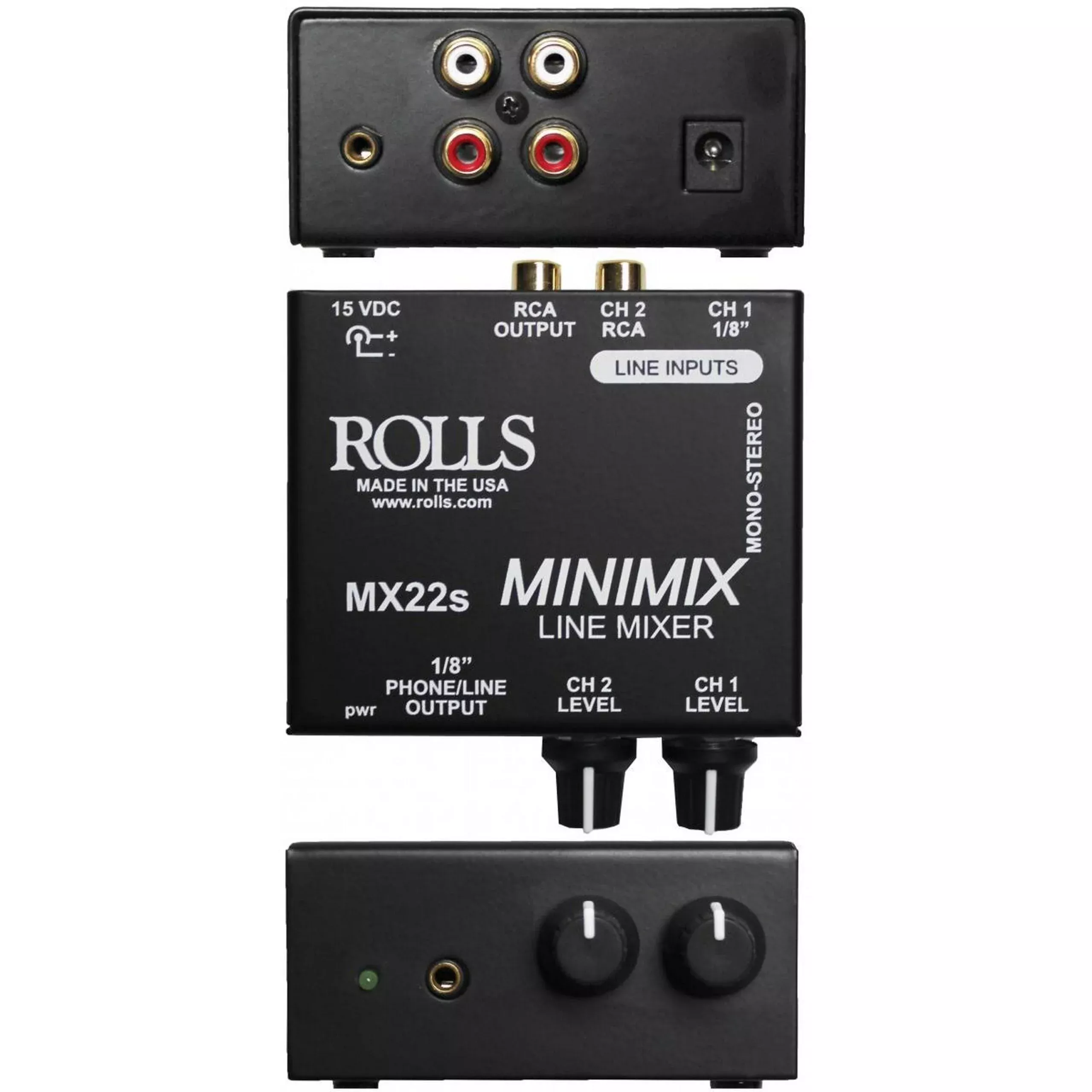

Rolls MX22s Mini Mix 2 Channel Mixer
The MX22s is a 2 Channel mixer for mixing an 1/8” line levelsignal such as a laptop, phone or tablet, and a stereo RCA signal such as a CDplayer, DAC or any preamp. The MX22s has plenty of output gain to drive anypower amplifier directly. It is ideal for audio visual applications or audiomixing including studio applications. The MX22s can be configured as eitherStereo (default) or Mono. Power adapter is included.
Key Features
- 1/8” and RCA line level signals
- Dual RCA Stereo output
- Individual controls for each channel
Technical Specifications
CH1 Max Gain
32 dB
Power
15 VDC 500 mA
CH2 Max Gain
20 dB
CH1 Input Impedance
10 Ohms
CHI Input Impedance
20K Ohms
Output Impedance
50 Ohms
Size
2.75” x 2.35” x 1.5” (7 x 6 x 3.8cm)
Weight
1 lb (.45Kg)
