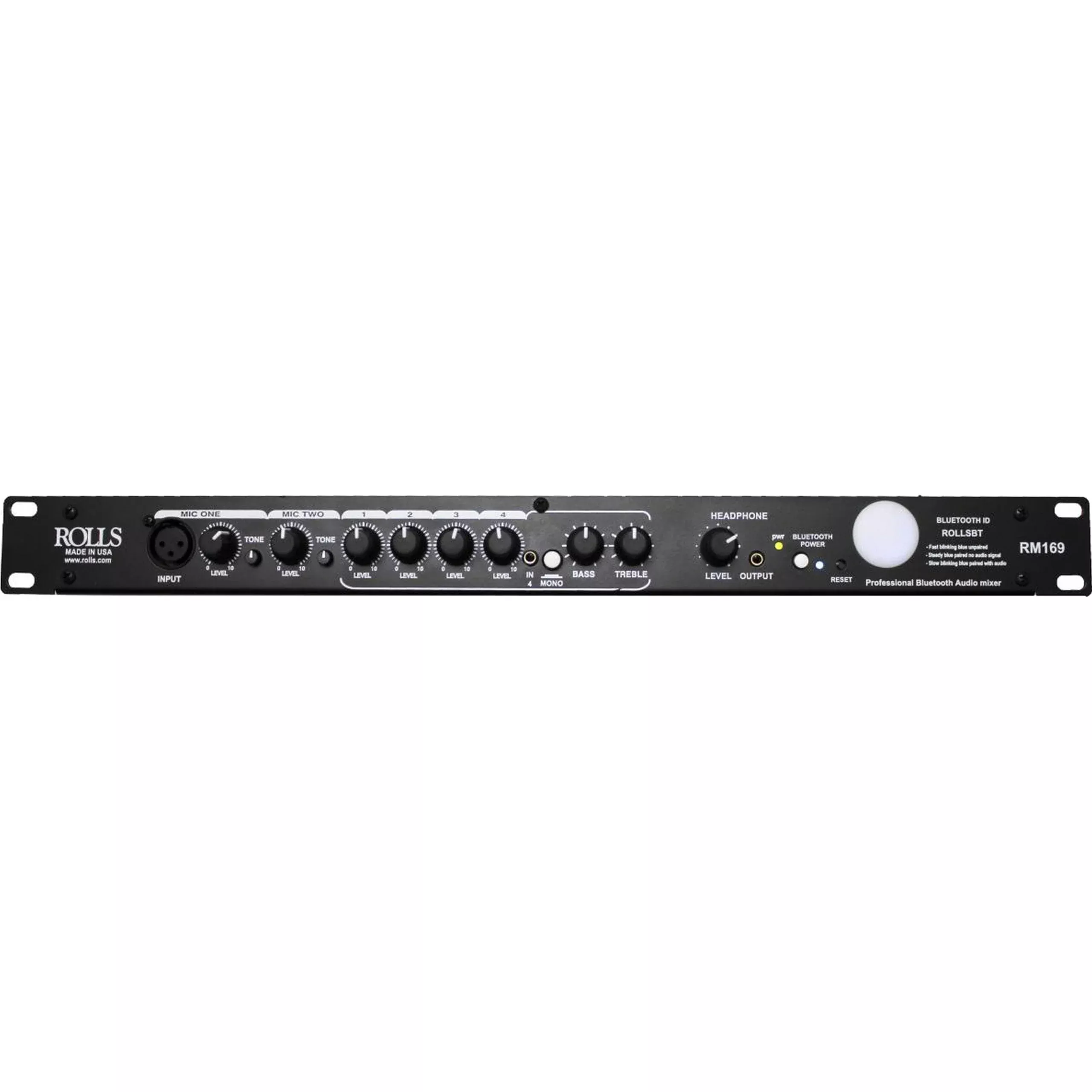

Rolls RM169 Professional Bluetooth Audio Mixer
The RM169 is a six channel Professional audio mixer withBluetooth input. Two microphone inputs, and four stereo line RCA inputs, theRM169 is ideal for any installation where space is a consideration, withoutcompromising audio quality. The Bluetooth input has extended range andexceptional audio quality. RCA and XLR balanced outputs jacks make the RM169perfect for any application.
Key Features
- Input Impedance:Mic: 600 Ohms XLR balanced Source: 22K Ohms RCA Mic Insert: 22K Ohms 1/4″TRS insert
- Weight: 5lbs. (2.3 kg)
- Size:19″ x 1.75″ x 4″ (48.3 x 4.5 x 10 cm)
- Max Gain:Mic: 60 dB Source: 26 dB Tone Controls: /-12 dB 100 Hz Bass, /-12 dB 11kHzTreble Noise Floor: – 80 dB, THD: <.025%
- OutputImpedance: 51 Ohms
- OutputLevel: 17 dBV max
- PhantomPower: 15 VDC
- In/OutConnectors: 5: XLR, 5: Stereo RCA, 1: 1/4″ TRS, 2: 3.5mm
- HeadphoneOutput Impedance:> 8 Ohms
- Max InputLevel: Mic: -14 dBV Mic level Source: 24 dBV
- Currentdrain 100ma 15vdc
- Two XLRMicrophone Inputs (including a paralleled front panel input).
- Individuallyswitchable phantom power.
- Four StereoSource Inputs, Four RCA and one front panel stereo 3.5mm.
- 1/4″TRS Mic Insert jack.
- Stereo RCAand XLR Outputs.
- Headphoneoutput on front panel with volume control.
- levelcontrol for Bluetooth input signal.
