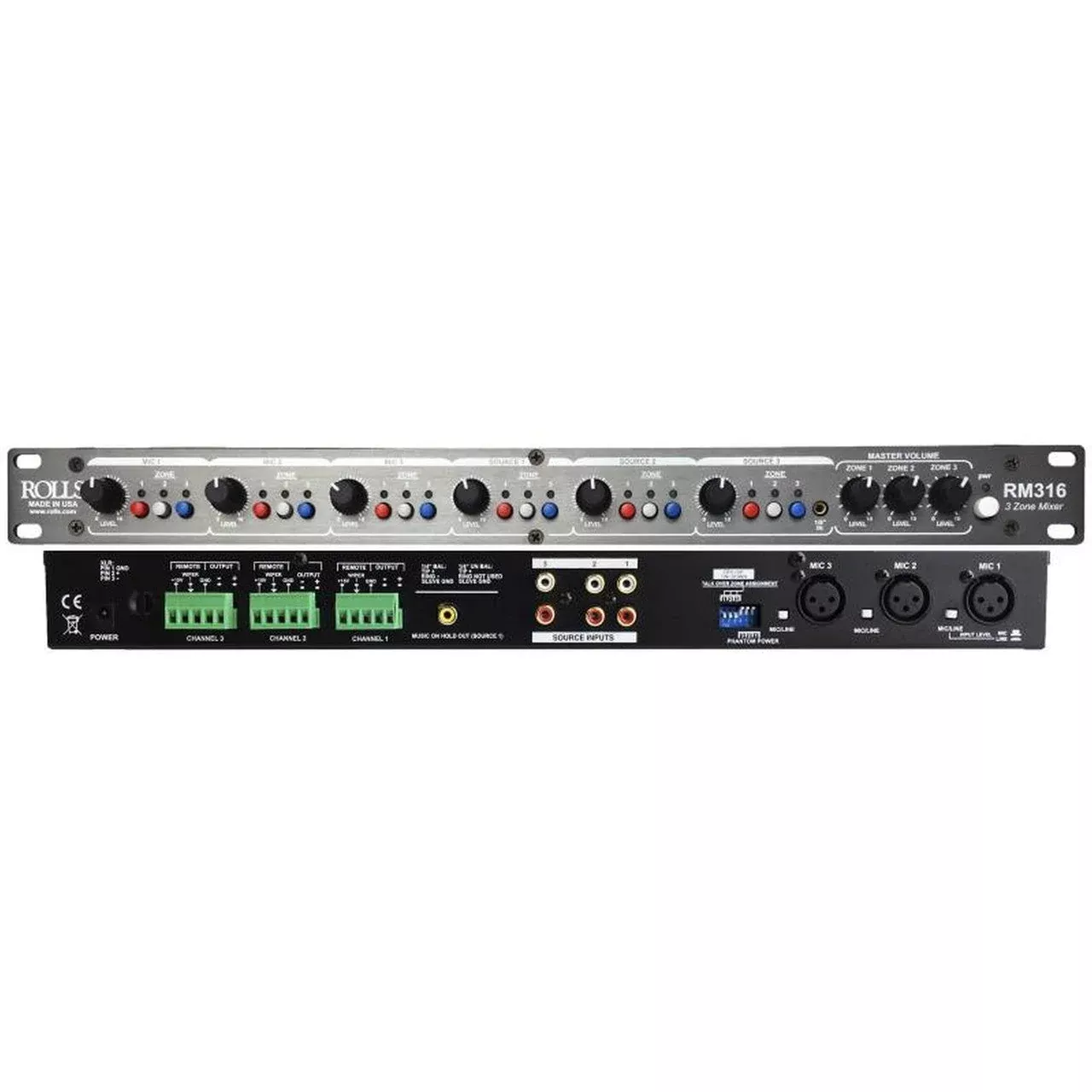

Rolls RM316 3 Zone Mixer
The newROLLS RM316 Three Zone Mixer combines three microphones or XLR line levelsignals with three RCA line level source inputs. Each input is switch selectedto output to any combination of three zone outputs. The outputs are allbalanced phoenix connectors, remote volume provides each zone with the meansfor external remote volume control. The Microphone inputs feature selectableducking, paging for each individual zone. The RM316 is easy for anyone to usefrom the front, from the rear it is just complex enough it will fill even themost demanding three zone installation requirements. The RM316 is the idealsolution for restaurants, offices, night clubs, etc.
Key Features
- Three MicInputs with independent switchable phantom power
- Three RCAsource inputs and one front panel 3.5mm stereo input
- ThreeBalanced Phoenix Connector Zone Outputs
- Remote Volumefor each output
TechnicalSpecifications
Input Impedance
10K Ohmsbalanced Line
Output Impedance
50 Ohmsbalanced
Max Input Level
Mic
-30 dB / Source
+22 dB
Phantom Power
+15 Volts DC
Max Gain
60 dB mic 30dB line
S/N Ratio
>75 dB
THD
<.3%
IMD (SMPTE)
<.3%
CMRR
60 dB
Frequency Response
20Hz to20kHz +/- 0 dB
Size
19” x 1.75”x 6.5”
