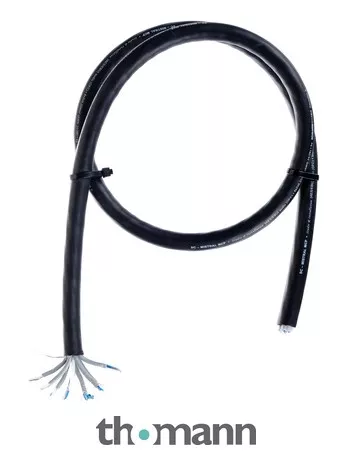

Multicore
- High quality 8-pair multicore for studio purposes as well as permanent installations
- Completely torsion-free
- Cold-resistant up to -30°
- Pairs of wires insulated individually with rubber sheath
- Cu-coil shielded with 100% coverage
- Low capacitance of 45 pF cable/cable
- 110 Ohm (AES/EBU), compliant over hundreds of metres
- Cable cross-section: 0.22 mm²
- Sheath: S-PVC
- AWG – AWG24
- Conductor insulation: Skin PE
- Shielding: AL/PT foil + screen + stranded drain wire – 100%
- Temperature range: -30° to 70°
- Sheath colour: Black, matte
- Diameter: 14.8 mm
- Capacitance cable/cable at 1 m: 46 pF
- Capacitance cable/shield at 1 m: 130 pF
- Conductor resistance at 1 km: <80 Ohm
- Insulation resistance at 1 km:>1 GOhm
- Characteristic impedance: 110 Ohm
- Available sinceApril 2013
- Item number311990
- Sales Unit1 metre(s)
