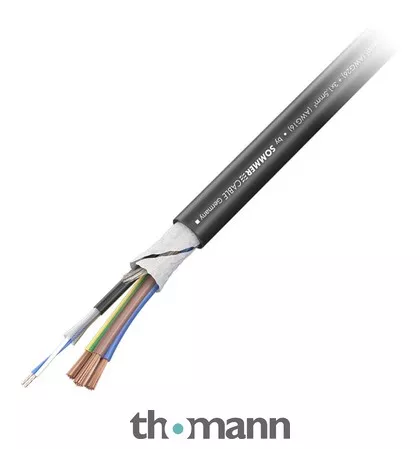

DMX Combination Line
- With 3x 1.5 mm² power supply line and a symmetrical NF-line (110 Ohm-capable)
- Ideal for connecting all active speakers or the parallel control for light mixing desks via power and DMX signal with a single cable
- Very flexible and enormously tread-resistant due to the round jacket made of cotton and viscose
- Good pairwise shielding through tinned copper spiral braiding
Technical data:
- Sheath diameter – PVC 9.5 mm
- Number of inner conductors – 1x 2x 0.14 m²
- Copper braid per conductor (power) – 56 x 0.15 mm
- Copper braid per conductor (signal) – 28 x 0.10 mm
- Signal screen – Cross braided
- Shielding factor (audio) – 90%
- Temperature range – -30 ° C to + 70 ° C
- Fire load per m – 0.64 kWh
- Weight at 1m – 144 g
- Sheath colour – black
- Price per metre
- Available sinceMarch 2013
- Item number282776
- Sales Unit1 metre(s)
