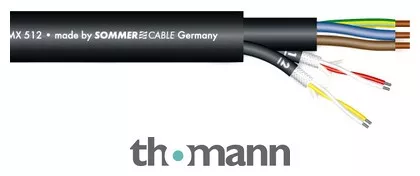

DMX Combination Line
- With 3x 2.5 mm² power supply line and a symmetrical NF-line (110 Ohm-capable)
- Ideal for connecting all active speakers or the parallel control for light mixing desks via power and DMX signal with a single cable
- Very flexible and enormously tread-resistant due to the round jacket made of cotton and viscose
- Good pairwise shielding through tinned copper spiral braiding
- Price per metre
Technical data:
- Sheath diameter – PVC 16.0 mm
- Number of inner conductors – 2x 2x 0.25 mm²
- Diameter power cable: 9.3 mm
- Diameter signal line – 4.3 mm
- Copper braid per conductor (power supply)
- Signal screen – cross braided
- Tinned
- Shielding factor (audio) – 90%
- Temperature range – -30 ° C to + 70 ° C
- Fire load per m – 0.92 kWh
- Weight at 1m – 313 g
- Sheath colour – black
- Available sinceSeptember 2013
- Item number322673
- Sales Unit1 metre(s)
